AC DC Desktop, Wall Power Adapters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Region Utilized | Form | Input Type | Voltage - Input | Voltage - Output | Current - Output (Max) | Power (Watts) | No Load Power Consumption | Polarization | Applications | Efficiency | Operating Temperature | Output Connector | Cord Length | Input Connector | Features | Size / Dimension | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ETS150080SUDC-P5P-KHAC/DC DESKTOP ADAPTER 15V 12W |
2,758 |
|
Datasheet | ETS DESKTOP (12W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 15V | 800mA | 12 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C6 | - | 2.91" L x 1.83" W x 1.18" H (74.0mm x 46.5mm x 30.0mm) | CB, CE |
|
ETS240050SUDC-P5P-KHAC/DC DESKTOP ADAPTER 24V 12W |
1,594 |
|
Datasheet | ETS DESKTOP (12W) | Box | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 24V | 500mA | 12 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | IEC 320-C6 | - | 2.91" L x 1.83" W x 1.18" H (74.0mm x 46.5mm x 30.0mm) | CB, CE |
|
EPS050100-P5RPAC/DC WALL MOUNT ADAPTER 5V 5W |
3,724 |
|
Datasheet | EPS (6W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 132 VAC | 5V | 1A | 5 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 72" (1.83m) | NEMA 1-15P | - | 2.45" L x 1.06" W x 1.65" H (62.3mm x 26.8mm x 42.0mm) | cULus |
|
EPS060250UH-P5RP-SZAC/DC WALL MOUNT ADAPTER 6V 15W |
2,576 |
|
Datasheet | EPS (15W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 6V | 2.5A | 15 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 39.4" (1.00m) | NEMA 1-15P | - | 2.83" L x 1.38" W x 1.87" H (72.0mm x 35.0mm x 47.6mm) | - |
|
|
EPS150100UH-P5RP-SZAC/DC WALL MOUNT ADAPTER 15V 15W |
4,712 |
|
Datasheet | EPS (15W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 15V | 1A | 15 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 72" (1.83m) | NEMA 1-15P | - | 2.83" L x 1.38" W x 1.87" H (72.0mm x 35.0mm x 47.6mm) | - |
|
EPS240100U-P5RP-KHAC/DC WALL MOUNT ADAPTER 24V 24W |
2,831 |
|
Datasheet | WALL PLUG (24W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 90 ~ 264 VAC | 24V | 1A | 24 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 12.0mm | 72" (1.83m) | NEMA 1-15P | - | 3.39" L x 2.20" W x 1.28" H (86.0mm x 56.0mm x 32.5mm) | cULus |
|

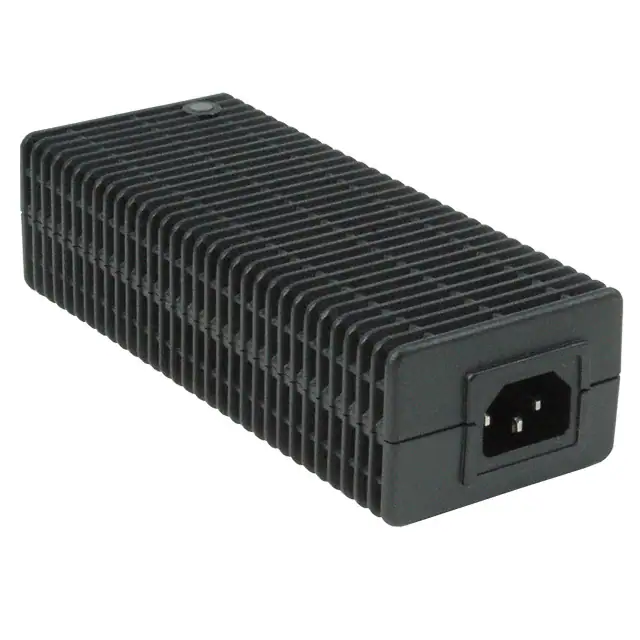

ETS1201000UC-P51-ETAC/DC DESKTOP ADAPTER 12V 120W |
4,165 |
|
Datasheet | ETS-U (150W) | Bulk | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 12V | 10A | 120 W | 500mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 40°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C14 | - | 3.17" L x 1.97" W x 1.22" H (80.6mm x 50.0mm x 31.0mm) | CE, cULus, TUVgs |
|
ETS135890UC-P51-ETAC/DC DESKTOP ADAPTER 14V 120W |
1,825 |
|
Datasheet | ETS-U (150W) | Bulk | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 14V | 10A | 120 W | 500mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 40°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C14 | - | 3.17" L x 1.97" W x 1.22" H (80.6mm x 50.0mm x 31.0mm) | CE, cULus, TUVgs |
|
ETS160810UC-P51-ETAC/DC DESKTOP ADAPTER 16V 130W |
3,630 |
|
Datasheet | ETS-U (150W) | Bulk | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 16V | 8.1A | 130 W | 500mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 40°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C14 | - | 3.17" L x 1.97" W x 1.22" H (80.6mm x 50.0mm x 31.0mm) | CE, cULus, TUVgs |
|
ETS190750UC-P51-ETAC/DC DESKTOP ADAPTER 19V 143W |
3,676 |
|
Datasheet | ETS-U (150W) | Bulk | Obsolete | North America | Desktop (Class I) | Cord | 90 ~ 264 VAC | 19V | 7.5A | 143 W | 500mW (Max) | - | ITE (Commercial) | Level V | 0°C ~ 40°C | Power DIN, 4 Pin | 47.2" (1.20m) | IEC 320-C14 | - | 3.17" L x 1.97" W x 1.22" H (80.6mm x 50.0mm x 31.0mm) | CE, cULus, TUVgs |
