AC DC Desktop, Wall Power Adapters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Region Utilized | Form | Input Type | Voltage - Input | Voltage - Output | Current - Output (Max) | Power (Watts) | No Load Power Consumption | Polarization | Applications | Efficiency | Operating Temperature | Output Connector | Cord Length | Input Connector | Features | Size / Dimension | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

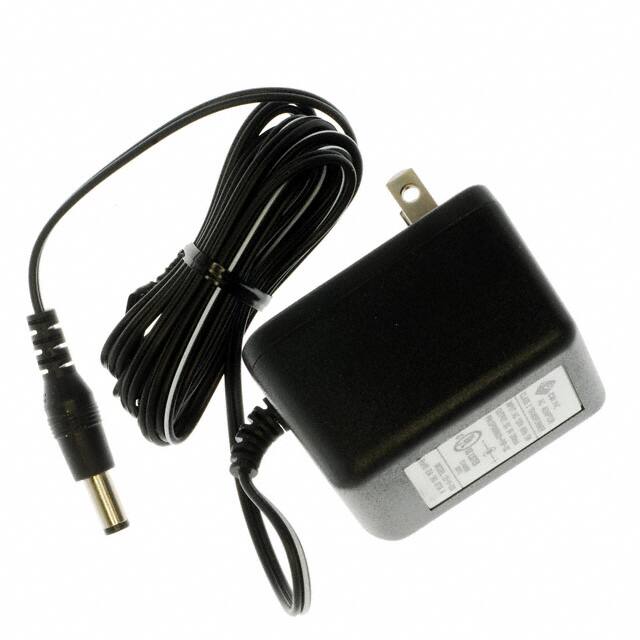

DPD090020-P5P-SZAC/DC WALL MOUNT ADAPTER 9V 1.8W |
2,371 |
|
Datasheet | - | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 9V | 200mA | 1.8 W | - | Positive Center | ITE (Commercial) | - | - | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.20" L x 1.73" W x 1.42" H (56.0mm x 44.0mm x 36.0mm) | cULus |
|
DPD090050-P5P-SZAC/DC WALL MOUNT ADAPTER 9V 4.5W |
2,040 |
|
Datasheet | - | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 9V | 500mA | 4.5 W | - | Positive Center | ITE (Commercial) | - | - | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.47" L x 2.00" W x 1.65" H (62.7mm x 51.0mm x 42.0mm) | cULus |
|

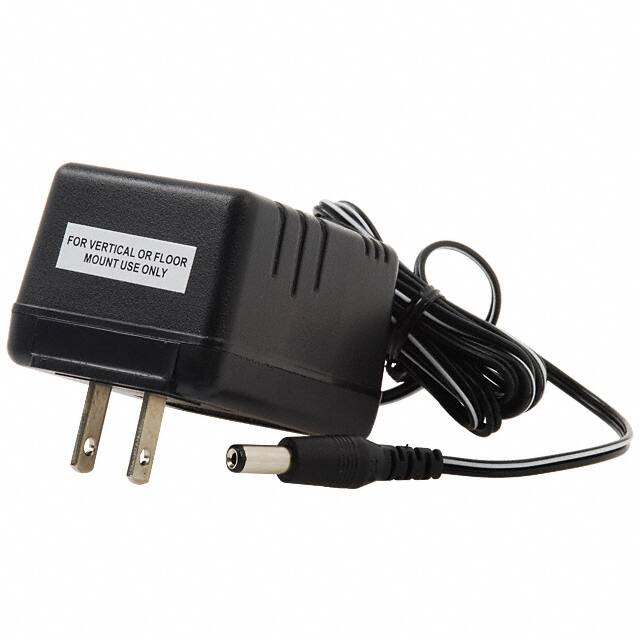

DPD120050-P5P-SZAC/DC WALL MOUNT ADAPTER 12V 6W |
2,085 |
|
Datasheet | - | Bulk | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 12V | 500mA | 6 W | - | Positive Center | ITE (Commercial) | - | - | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.60" L x 1.97" W x 1.59" H (66.0mm x 50.1mm x 40.5mm) | cULus |
|
DPD120080-P5P-SZAC/DC WALL MNT ADAPTER 12V 9.6W |
3,307 |
|
Datasheet | - | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 12V | 800mA | 9.6 W | - | Positive Center | ITE (Commercial) | - | - | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | NEMA 1-15P | - | 3.21" L x 2.31" W x 1.93" H (81.6mm x 58.7mm x 49.1mm) | cULus |
|
DPD240040-P6P-SZAC/DC WALL MNT ADAPTER 24V 9.6W |
1,279 |
|
Datasheet | - | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 120VAC | 24V | 400mA | 9.6 W | - | Positive Center | ITE (Commercial) | - | - | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | NEMA 1-15P | - | 3.24" L x 2.24" W x 1.96" H (82.3mm x 57.0mm x 49.8mm) | cULus |
|
DPD090050E-P5P-SZAC/DC WALL MOUNT ADAPTER 9V 4.5W |
3,474 |
|
Datasheet | - | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 230VAC | 9V | 500mA | 4.5 W | - | Positive Center | ITE (Commercial) | - | - | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | CEE 7/16 | - | 2.91" L x 2.05" W x 1.61" H (74.0mm x 52.0mm x 40.9mm) | CE, TUVgs |
|

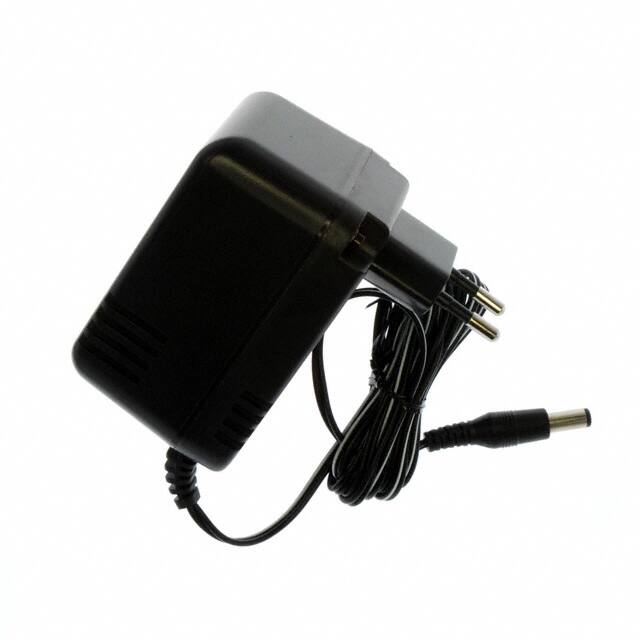

DPD120080E-P5P-SZAC/DC WALL MNT ADAPTER 12V 9.6W |
4,535 |
|
Datasheet | - | Box | Obsolete | Europe | Wall Mount (Class II) | Fixed Blade | 230VAC | 12V | 800mA | 9.6 W | - | Positive Center | ITE (Commercial) | - | - | Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | 72" (1.83m) | CEE 7/16 | - | 3.21" L x 2.31" W x 1.93" H (81.6mm x 58.7mm x 49.1mm) | CE, TUVgs |
|
EPS030100-P7PAC/DC WALL MOUNT ADAPTER 3V 3W |
3,239 |
|
Datasheet | EPS (6W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 132 VAC | 3V | 1A | 3 W | 500mW (Max) | Positive Center | ITE (Commercial) | Level IV | 0°C ~ 40°C | Barrel Plug, 1.35mm I.D. x 3.5mm O.D. x 9.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.45" L x 1.06" W x 1.65" H (62.3mm x 26.8mm x 42.0mm) | cULus |
|
|
EPS045100-P7PAC/DC WALL MNT ADAPTER 4.5V 4.5W |
2,736 |
|
Datasheet | EPS (6W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 132 VAC | 4.5V | 1A | 4.5 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 1.35mm I.D. x 3.5mm O.D. x 9.5mm | 72" (1.83m) | NEMA 1-15P | - | 2.45" L x 1.06" W x 1.65" H (62.3mm x 26.8mm x 42.0mm) | cULus |
|
EPS050100-P6PAC/DC WALL MOUNT ADAPTER 5V 5W |
2,962 |
|
Datasheet | EPS (6W) | Box | Obsolete | North America | Wall Mount (Class II) | Fixed Blade | 100 ~ 132 VAC | 5V | 1A | 5 W | 300mW (Max) | Positive Center | ITE (Commercial) | Level V | 0°C ~ 40°C | Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 12.0mm | 72" (1.83m) | NEMA 1-15P | - | 2.45" L x 1.06" W x 1.65" H (62.3mm x 26.8mm x 42.0mm) | cULus |
