Trimmers, Variable Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance Range | Adjustment Type | Voltage - Rated | Dielectric Material | Q @ Freq | Size / Dimension | Height - Seated (Max) | Operating Temperature | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TZB4Z100BB10R00CAP TRIMMER 3-10PF 100V SMD |
0 |
|
Datasheet | TZB4 | Tape & Reel (TR) | Obsolete | 3 ~ 10pF | Top | 100 V | Ceramic | 500 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
TZB4Z100EB10R00CAP TRIMMER 3-10PF 100V SMD |
0 |
|
Datasheet | TZB4 | Bulk | Obsolete | 3 ~ 10pF | Bottom Adjustment | 100 V | Ceramic | 500 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
TZB4Z250AA10B00CAP TRIMMER 4-25PF 50V SMD |
0 |
|
Datasheet | TZB4 | Bulk | Obsolete | 4 ~ 25pF | Top | 50 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
TZB4Z250AB10B00CAP TRIMMER 4-25PF 50V SMD |
0 |
|
Datasheet | TZB4 | Bulk | Obsolete | 4 ~ 25pF | Top | 50 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|

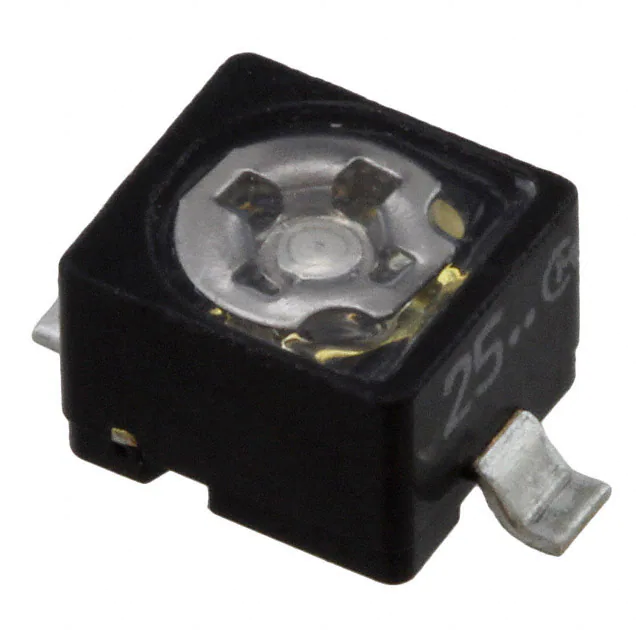

TZB4Z250BB10B00CAP TRIMMER 4-25PF 50V SMD |
0 |
|
Datasheet | TZB4 | Bulk | Obsolete | 4 ~ 25pF | Top | 50 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
TZB4Z250BB10R00CAP TRIMMER 4-25PF 50V SMD |
0 |
|
Datasheet | TZB4 | Tape & Reel (TR) | Obsolete | 4 ~ 25pF | Top | 50 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZB4Z250EB10R00CAP TRIMMER 4-25PF 50V SMD |
0 |
|
Datasheet | TZB4 | Bulk | Obsolete | 4 ~ 25pF | Bottom Adjustment | 50 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|

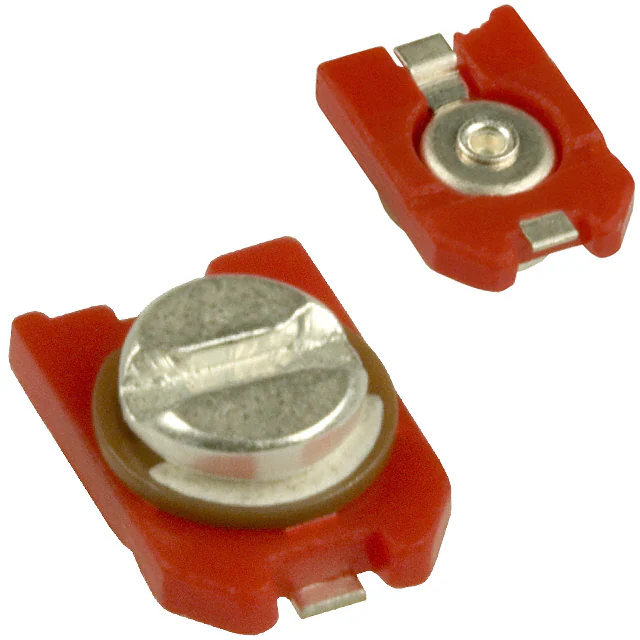

TZC3P200A110B00CAP TRIMMER 5-20PF 100V SMD |
0 |
|
Datasheet | TZC3 | Bulk | Obsolete | 5 ~ 20pF | Top | 100 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.067" (1.70mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZC3Z030A110B00CAP TRIMMER 1.4-3PF 100V SMD |
0 |
|
Datasheet | TZC3 | Bulk | Obsolete | 1.4 ~ 3pF | Top | 100 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.067" (1.70mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
TZR1R080A001B00CAP TRIMMER 3-8PF 25V SMD |
0 |
|
Datasheet | TZR1 | Bulk | Obsolete | 3 ~ 8pF | Top | 25 V | Ceramic | 300 @ 1MHz | 0.067" L x 0.059" W (1.70mm x 1.50mm) | 0.035" (0.90mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
