Trimmers, Variable Capacitors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Capacitance Range | Adjustment Type | Voltage - Rated | Dielectric Material | Q @ Freq | Size / Dimension | Height - Seated (Max) | Operating Temperature | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TZB4R200BB10B00CAP TRIMMER 4.5-20PF 100V SMD |
0 |
|
Datasheet | TZB4 | Bulk | Obsolete | 4.5 ~ 20pF | Top | 100 V | Ceramic | 500 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZB4R200EA10R00CAP TRIMMER 4.5-20PF 100V SMD |
0 |
|
Datasheet | TZB4 | Bulk | Obsolete | 4.5 ~ 20pF | Bottom Adjustment | 100 V | Ceramic | 500 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZB4R200EB10B00CAP TRIMMER 4.5-20PF 100V SMD |
0 |
|
Datasheet | TZB4 | Bulk | Obsolete | 4.5 ~ 20pF | Bottom Adjustment | 100 V | Ceramic | 500 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZB4R200EB10R00CAP TRIMMER 4.5-20PF 100V SMD |
0 |
|
Datasheet | TZB4 | Bulk | Obsolete | 4.5 ~ 20pF | Bottom Adjustment | 100 V | Ceramic | 500 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZB4R500AA10B00CAP TRIMMER 7-50PF 50V SMD |
0 |
|
Datasheet | TZB4 | Bulk | Obsolete | 7 ~ 50pF | Top | 50 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZB4R500AB10B00CAP TRIMMER 7-50PF 50V SMD |
0 |
|
Datasheet | TZB4 | Bulk | Obsolete | 7 ~ 50pF | Top | 50 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZB4R500BA10B00CAP TRIMMER 7-50PF 50V SMD |
0 |
|
Datasheet | TZB4 | Bulk | Obsolete | 7 ~ 50pF | Top | 50 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|

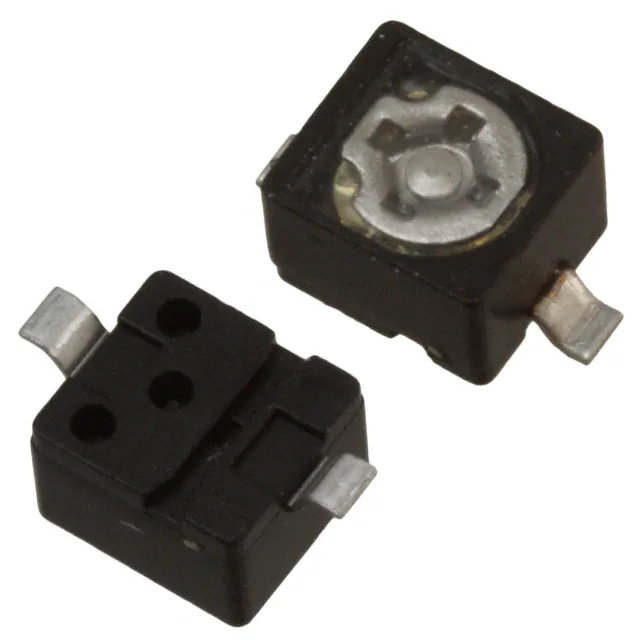

TZB4R500BB10R00CAP TRIMMER 7-50PF 50V SMD |
0 |
|
Datasheet | TZB4 | Tape & Reel (TR) | Obsolete | 7 ~ 50pF | Top | 50 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZB4Z030AA10B00CAP TRIMMER 1.4-3PF 100V SMD |
0 |
|
Datasheet | TZB4 | Bulk | Obsolete | 1.4 ~ 3pF | Top | 100 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
|
|
TZB4Z030BA10B00CAP TRIMMER 1.4-3PF 100V SMD |
0 |
|
Datasheet | TZB4 | Bulk | Obsolete | 1.4 ~ 3pF | Top | 100 V | Ceramic | 300 @ 1MHz | 0.177" L x 0.157" W (4.50mm x 4.00mm) | 0.126" (3.20mm) | -25°C ~ 85°C | Surface Mount | General Purpose |
