Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

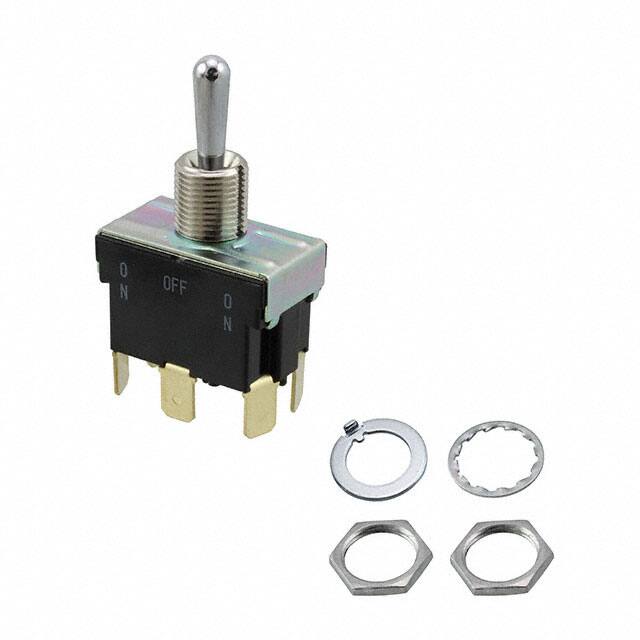

ET225P-ZSWITCH TOGGLE DPDT 25A 125V |
2,684 |
|
Datasheet | ET | Bulk | Active | Panel Mount | DPDT | On-Off-On | 25A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
8J2011-ZSWITCH TOGGLE DPDT 6A 125V |
4,639 |
|
Datasheet | 8J | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 6.80mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
ATE1F-2M3-10-ZSWITCH TOGGLE SPDT 50MA 48V |
4,074 |
|
Datasheet | ATE | Tray | Active | Through Hole | SPDT | On-Mom | 50mA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|
ATE1E-5M3-10-ZSWITCH TOGGLE SPDT 50MA 48V |
1,182 |
|
Datasheet | ATE | Tray | Active | Through Hole, Right Angle | SPDT | On-Off-On | 50mA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|
ATE2D-5M3-10-ZSWITCH TOGGLE DPDT 50MA 48V |
2,412 |
|
Datasheet | ATE | Tray | Active | Through Hole, Right Angle | DPDT | On-On | 50mA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|
CFT2-1DC6-AWSWITCH TOGGLE SPDT 0.4VA 28V |
4,999 |
|
Datasheet | CFT2 | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable, Gray Actuator | -40°C ~ 85°C |
|
|
ATE1H-5M3-10-ZSWITCH TOGGLE SPDT 50MA 48V |
4,984 |
|
Datasheet | ATE | Tray | Active | Through Hole, Right Angle | SPDT | On-Off-Mom | 50mA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|
ATE1E-2J3-10-ZSWITCH TOGGLE SPDT 50MA 48V |
4,626 |
|
Datasheet | ATE | Tray | Obsolete | Through Hole | SPDT | On-Off-On | 50mA (AC/DC) | 48 V | 48 V | Lever for Cap | - | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|
FT1E-2M-ZSWITCH TOGGLE SPDT 0.4VA 28V |
3,250 |
|
Datasheet | FT | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable, Yellow Actuator | -40°C ~ 85°C |
|
ATE1F-6M3-10-ZSWITCH TOGGLE SPDT 50MA 48V |
2,970 |
|
Datasheet | ATE | Tray | Active | Through Hole, Right Angle | SPDT | On-Mom | 50mA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
