Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ETW115G12SWITCH TOGGLE SPDT 15A 127VAC |
3,557 |
|
Datasheet | ETW | Box | Active | Panel Mount | SPDT | Mom-Off-Mom | 15A (AC) | 127 V | - | Standard Round | 16.40mm | Non-Illuminated | - | - | Solder Lug | - | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -10°C ~ 70°C |
|
ATLE44D-6M3-ZSWITCH TOGGLE 4PDT 50MA 48V |
3,789 |
|
Datasheet | ATLE4 | Tray | Active | Through Hole, Right Angle | 4PDT | On-On | 50mA (AC/DC) | 48 V | 48 V | Locking Lever | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -20°C ~ 85°C |
|
ATE1D-2J3-10-ZSWITCH TOGGLE SPDT 50MA 48V |
2,783 |
|
Datasheet | ATE | Tray | Obsolete | Through Hole | SPDT | On-On | 50mA (AC/DC) | 48 V | 48 V | Lever for Cap | - | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable | -20°C ~ 85°C |
|
ET105E12-ZSWITCH TOGGLE SPDT 5A 125V |
1,559 |
|
Datasheet | ET | Bulk | Active | Panel Mount | SPDT | On-Off-On | 5A (AC) | 125 V | - | Standard Round | 17.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | - | - | - |
|
CFT2-1EC6-AWSWITCH TOGGLE SPDT 0.4VA 28V |
1,207 |
|
Datasheet | CFT2 | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Washable, Gray Actuator | -40°C ~ 85°C |
|
CF-TA-1FB4-A02SWITCH TOGGLE SPDT 50MA 48V |
2,100 |
|
Datasheet | CF-TA | Bulk | Obsolete | Surface Mount, Right Angle | SPDT | On-Mom | 50mA (AC/DC) | 48 V | 48 V | Standard Round | 6.00mm | Non-Illuminated | - | - | Gull Wing | - | Unthreaded | - | - | -40°C ~ 85°C |
|
8A1012C-ZSWITCH TOGGLE SPDT 25MA 20V |
2,236 |
|
Datasheet | 8A | Bulk | Active | Panel Mount | SPDT | On-On | 25mA (DC) | - | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|

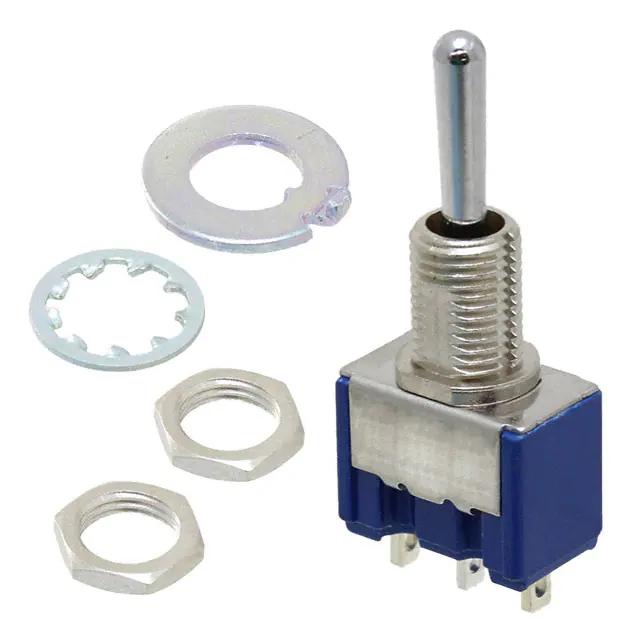

8A1051-ZSWITCH TOGGLE SPDT 6A 125V |
4,905 |
|
Datasheet | 8A | Bulk | Obsolete | Panel Mount | SPDT | On-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|
8A1062-ZSWITCH TOGGLE SPDT 6A 125V |
4,696 |
|
Datasheet | 8A | Bulk | Obsolete | Panel Mount | SPDT | On-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
|
|
8A1042-ZSWITCH TOGGLE SPDT 6A 125V |
1,913 |
|
Datasheet | 8A | Bulk | Obsolete | Panel Mount | SPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Sealed - Flux Protection | -30°C ~ 85°C |
