Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CDF-38-70001RELAY TIME DELAY 1SEC 10A 277V |
2,035 |
|
Datasheet | CD | Bulk | Obsolete | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.1 Sec ~ 1 Sec | 10A @ 277VAC | 120VAC | Plug In, 11 Pin (Octal) | External Resistor | Input Voltage | - | - |
|
|
CDA-38-70025RELAY TIME DELAY 1SEC 10A 277V |
4,845 |
|
Datasheet | CD | Tray | Obsolete | Socketable | Mechanical Relay | Off-Delay | DPDT (2 Form C) | Fixed, 1 Sec | 10A @ 277VAC | 120VAC | Plug In, 11 Pin (Octal) | Fixed | Input Voltage | - | - |
|
CRD-48-30180RELAY TIME DELAY 180SEC 10A 277V |
2,406 |
|
Datasheet | CR | Bulk | Obsolete | Socketable | Mechanical Relay | Repeat Cycle, Twin Timer | DPDT (2 Form C) | 1.8 Sec ~ 180 Sec | 10A @ 277VAC | 24VDC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
|
CGB-38-79010MRELAY TIME DELAY 10MIN 10A 277V |
2,124 |
|
Datasheet | CG | Bulk | Obsolete | Socketable | Mechanical Relay | Interval | DPDT (2 Form C) | 1 Min ~ 10 Min | 10A @ 277VAC | 120VAC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
|
|
3-1437470-5RELAY TIME DELAY |
2,038 |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TR14I3DNRELAY TIME DELAY |
3,895 |
|
Datasheet | TR, AGASTAT | Bulk | Active | Socketable | Mechanical Relay | On-Delay | 4PDT (4 Form C) | 2 Sec ~ 60 Sec | 10A @ 120VAC | 120VAC | Plug In | Screwdriver Slot | Input Voltage | - | - |
|
|
TR14D3DRELAY TIME DELAY 60SEC 10A 120V |
3,478 |
|
- |
TR, AGASTAT | Bulk | Discontinued at Digi-Key | Socketable | Mechanical Relay | On-Delay | 4PDT (4 Form C) | 2 Sec ~ 60 Sec | 10A @ 120VAC | 215VDC | Plug In | Screwdriver Slot | Input Voltage | - | - |
|

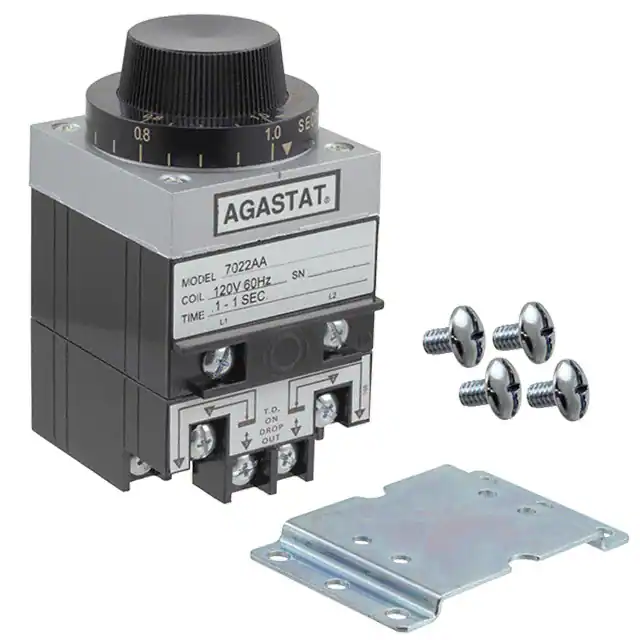

7022AARELAY TIME DELAY 1SEC 10A 240V |
4,933 |
|
Datasheet | 7000, AGASTAT | Bulk | Active | Panel Mount | Mechanical Relay | Off-Delay | DPDT (2 Form C) | 0.1 Sec ~ 1 Sec | 10A @ 240VAC | 120VAC | Screw Terminal | Hand Dial | Input Voltage | - | - |
|
CNS-35-92-1000RELAY TIME DELAY 100MIN 10A 277V |
2,768 |
|
Datasheet | CNS | Bulk | Obsolete | Socketable | Mechanical Relay | Programmable (Multi-Function) | DPDT (2 Form C) | 0.1 Sec ~ 100 Min | 10A @ 277VAC | 24 ~ 240VAC/DC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
|
|
CNS-35-72RELAY TIME DELAY 100MIN 10A 277V |
1,454 |
|
Datasheet | CNS | Bulk | Obsolete | Socketable | Mechanical Relay | Programmable (Multi-Function) | DPDT (2 Form C) | 0.1 Sec ~ 100 Min | 10A @ 277VAC | 120VAC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
