Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VTMR1AEARELAY TIME DELAY |
1,204 |
|
- |
VTMR1 | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
VTM7ACDRELAY TIME DELAY 10SEC 1A 120V |
2,658 |
|
- |
VTM7, AGASTAT | Bulk | Active | Chassis Mount | Solid State Relay | Repeat Cycle | SPST-NO (1 Form A) | 0.5 Sec ~ 10 Sec | 1A @ 120VAC | 120VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|
CB-1047D-20RELAY TIME DELAY 10SEC 10A 277V |
2,879 |
|
Datasheet | CB | Bulk | Obsolete | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.1 Sec ~ 10 Sec | 10A @ 277VAC | 12VDC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
|
|
CB-1046B-38RELAY TIME DELAY 180SEC 10A 277V |
1,210 |
|
Datasheet | CB | Bulk | Obsolete | Socketable | Mechanical Relay | Off-Delay | DPDT (2 Form C) | 1.8 Sec ~ 180 Sec | 10A @ 277VAC | 24VAC | Plug In, 11 Pin (Octal) | Hand Dial | Input Voltage, Trigger Signal | - | - |
|
|
CB-1043B-39RELAY TIME DELAY 10SEC 10A 277V |
2,744 |
|
Datasheet | CB | Tray | Obsolete | Socketable | Mechanical Relay | Interval | DPDT (2 Form C) | 0.1 Sec ~ 10 Sec | 10A @ 277VAC | 24VAC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
|

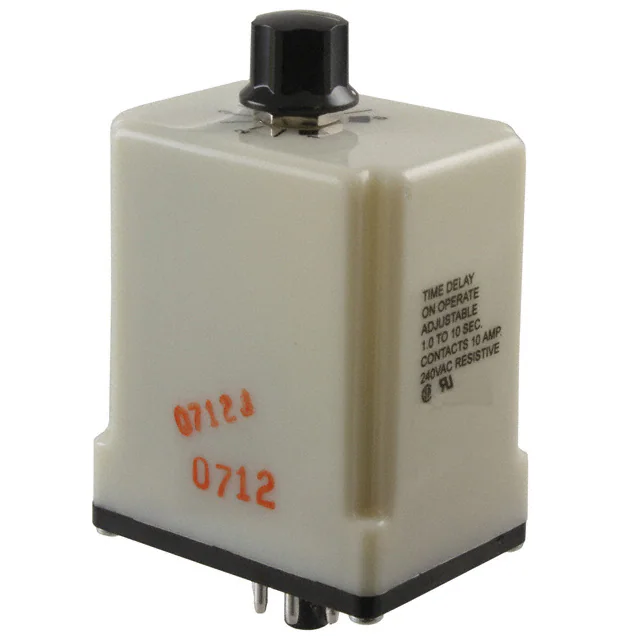

CHD-38-30002RELAY TIME DELAY 60SEC 10A 277V |
3,147 |
|
Datasheet | CH | Tray | Obsolete | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 1 Sec ~ 60 Sec | 10A @ 277VAC | 24VDC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
|
|
CHB-38-70021RELAY TIME DELAY 10SEC 10A 277V |
1,438 |
|
Datasheet | CH | Bulk | Obsolete | Socketable | Mechanical Relay | Interval | DPDT (2 Form C) | 1 Sec ~ 10 Sec | 10A @ 277VAC | 120VAC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
|
|
CHB-38-30003RELAY TIME DELAY 180SEC 10A 277V |
4,952 |
|
Datasheet | CH | Bulk | Obsolete | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 1 Sec ~ 180 Sec | 10A @ 277VAC | 24VAC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
|
|
SRC72AEBARELAY TIME DELAY 15SEC 10A 120V |
3,236 |
|
Datasheet | SRC | Tray | Active | Socketable | Mechanical Relay | Repeat Cycle | DPDT (2 Form C) | 0.5 Sec ~ 15 Sec | 10A @ 120VAC/28VDC | 120VAC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
|
CKB-38-37010RELAY TIME DELAY 10SEC 10A 277V |
4,292 |
|
Datasheet | CK | Bulk | Obsolete | Socketable | Mechanical Relay | Off-Delay | DPDT (2 Form C) | 0.1 Sec ~ 10 Sec | 10A @ 277VAC | 24VAC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
