Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BDN10-5CB/A01HEATSINK CPU W/ADHESIVE 1.01"SQ |
1,540 |
|
Datasheet | BDN | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.010" (25.65mm) | 1.010" (25.65mm) | - | 0.555" (14.10mm) | - | 6.30°C/W @ 400 LFM | 20.80°C/W | Aluminum | Black Anodized |
|

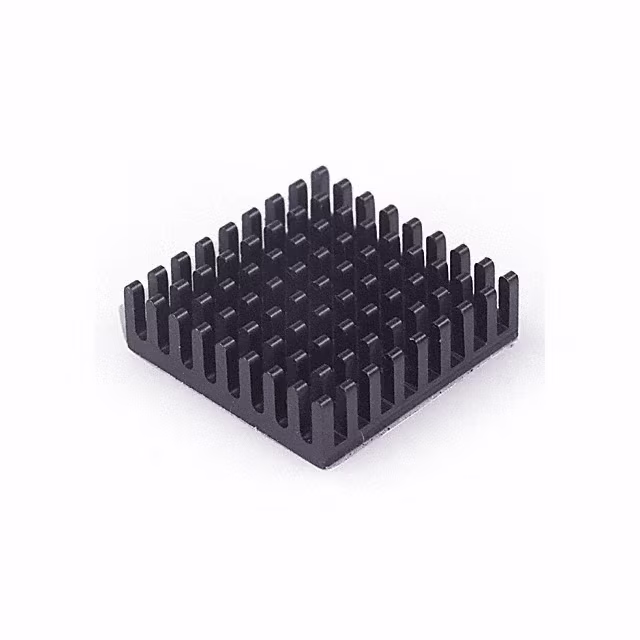

BDN12-3CB/A01HEATSINK CPU W/ADHESIVE 1.21"SQ |
1,239 |
|
Datasheet | BDN | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.210" (30.73mm) | 1.210" (30.73mm) | - | 0.355" (9.02mm) | - | 6.80°C/W @ 400 LFM | 19.60°C/W | Aluminum | Black Anodized |
|

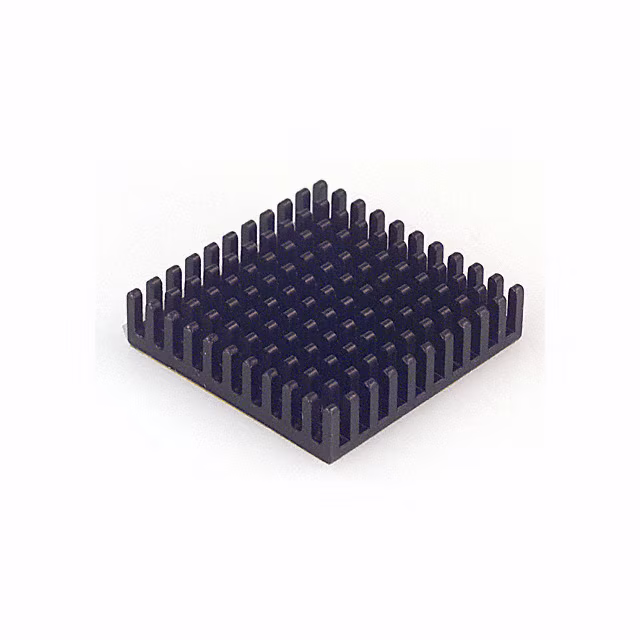

BDN15-3CB/A01HEATSINK CPU W/ADHESIVE 1.51"SQ |
2,352 |
|
Datasheet | BDN | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.510" (38.35mm) | 1.510" (38.35mm) | - | 0.355" (9.02mm) | - | 4.50°C/W @ 400 LFM | 15.10°C/W | Aluminum | Black Anodized |
|
BDN17-3CB/A01HEATSINK CPU W/ADHESIVE 1.71"SQ |
2,862 |
|
Datasheet | BDN | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.710" (43.43mm) | 1.710" (43.43mm) | - | 0.355" (9.02mm) | - | 3.80°C/W @ 400 LFM | 11.50°C/W | Aluminum | Black Anodized |
|
APF19-19-06CBHEATSINK LOW-PROFILE FORGED |
1,288 |
|
Datasheet | APF | Box | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Not Included) | Square, Fins | 0.748" (19.00mm) | 0.748" (19.00mm) | - | 0.250" (6.35mm) | - | 7.10°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

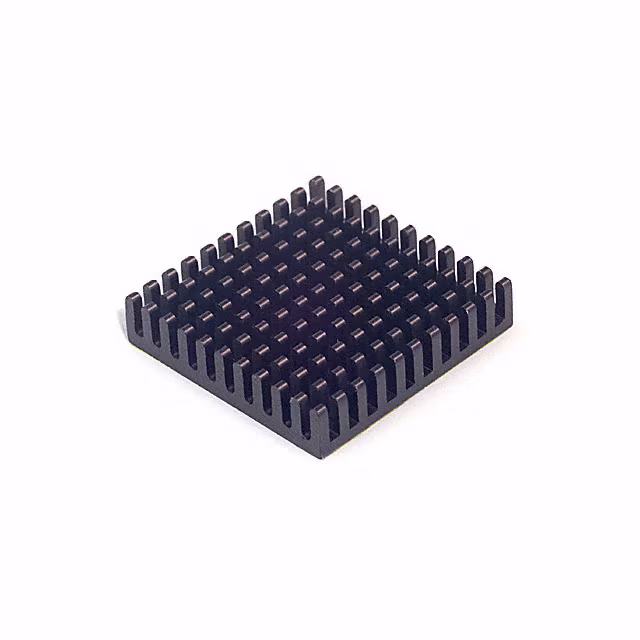

BDN16-3CB/A01HEATSINK CPU W/ADHESIVE 1.61"SQ |
4,486 |
|
Datasheet | BDN | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.610" (40.89mm) | 1.610" (40.89mm) | - | 0.355" (9.02mm) | - | 4.50°C/W @ 400 LFM | 13.50°C/W | Aluminum | Black Anodized |
|
AER19-19-12CB/A01HEATSINK FORGED BLK ANO TOP MNT |
4,532 |
|
Datasheet | AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 0.732" (18.60mm) | 0.732" (18.60mm) | - | 0.457" (11.60mm) | - | 6.42°C/W @ 200 LFM | 15.85°C/W | Aluminum Alloy | Black Anodized |
|
|
AER19-19-15CB/A01HEATSINK FORGED BLK ANO TOP MNT |
2,607 |
|
Datasheet | AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 0.732" (18.60mm) | 0.732" (18.60mm) | - | 0.575" (14.60mm) | - | 5.92°C/W @ 200 LFM | 15.45°C/W | Aluminum Alloy | Black Anodized |
|
|
AER19-19-18CB/A01HEATSINK FORGED BLK ANO TOP MNT |
2,437 |
|
Datasheet | AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 0.732" (18.60mm) | 0.732" (18.60mm) | - | 0.693" (17.60mm) | - | 5.52°C/W @ 200 LFM | 14.95°C/W | Aluminum Alloy | Black Anodized |
|
AER21-21-12CB/A01HEATSINK FORGED BLK ANO TOP MNT |
3,570 |
|
Datasheet | AER | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 0.811" (20.60mm) | 0.811" (20.60mm) | - | 0.457" (11.60mm) | - | 5.62°C/W @ 200 LFM | 15.10°C/W | Aluminum Alloy | Black Anodized |
