Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

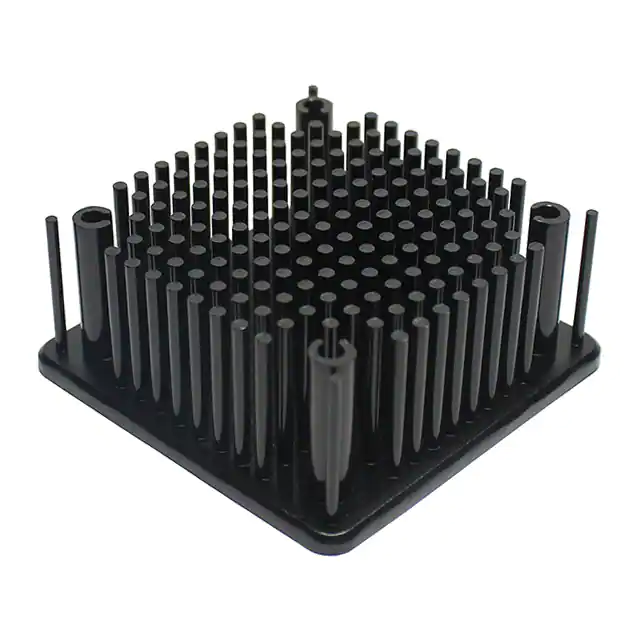

APR55-55-21CB/A01HEATSINK FORGED BLK ANO TOP MNT |
3,257 |
|
Datasheet | APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 2.150" (54.60mm) | 2.150" (54.60mm) | - | 0.811" (20.60mm) | - | 2.05°C/W @ 200 LFM | 6.49°C/W | Aluminum Alloy | Black Anodized |
|
|
APR55-55-23CB/A01HEATSINK FORGED BLK ANO TOP MNT |
3,789 |
|
Datasheet | APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 2.150" (54.60mm) | 2.150" (54.60mm) | - | 0.890" (22.61mm) | - | 1.84°C/W @ 200 LFM | 6.24°C/W | Aluminum Alloy | Black Anodized |
|
|
APR55-55-28CB/A01HEATSINK FORGED BLK ANO TOP MNT |
4,174 |
|
Datasheet | APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 2.150" (54.60mm) | 2.150" (54.60mm) | - | 1.087" (27.60mm) | - | 1.62°C/W @ 200 LFM | 5.72°C/W | Aluminum Alloy | Black Anodized |
|
|
APR55-55-33CB/A01HEATSINK FORGED BLK ANO TOP MNT |
4,505 |
|
Datasheet | APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 2.150" (54.60mm) | 2.150" (54.60mm) | - | 1.283" (32.60mm) | - | 1.38°C/W @ 200 LFM | 5.16°C/W | Aluminum Alloy | Black Anodized |
|
7156BAHEATSINK APC 723 |
1,539 |
|
- |
- | Bulk | Obsolete | Top Mount | TO-18 | Press Fit | Cylindrical | - | - | 0.220" (5.59mm) OD | 0.400" (10.16mm) | 1.5W @ 100°C | - | - | Aluminum | Black Anodized |
|
|
RUR6712CBHEATSINK APC 723 |
2,596 |
|
Datasheet | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
UP1TO3CBHEATSINK APC 723 |
3,362 |
|
Datasheet | UP1 | Bulk | Obsolete | Board Level | TO-3, Stud Mount | Bolt On | Square, Fins | 1.780" (45.21mm) | 1.780" (45.21mm) | - | 0.500" (12.70mm) | - | - | - | Aluminum | Black Anodized |
|
|
FEX827269T710HEATSINK |
1,024 |
|
- |
FEX | Bulk | Obsolete | Board Level with Fan | - | Clip, Tape | Rectangular, Fins | 3.230" (82.04mm) | 2.835" (72.00mm) | - | 2.717" (69.00mm) | - | - | - | - | - |
