Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APR50-50-18CB/A01HEATSINK FORGED BLK ANO TOP MNT |
1,035 |
|
Datasheet | APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.953" (49.60mm) | 1.953" (49.60mm) | - | 0.693" (17.60mm) | - | 2.32°C/W @ 200 LFM | 7.31°C/W | Aluminum Alloy | Black Anodized |
|
|
APR50-50-33CB/A01HEATSINK FORGED BLK ANO TOP MNT |
3,387 |
|
Datasheet | APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 1.953" (49.60mm) | 1.953" (49.60mm) | - | 1.283" (32.60mm) | - | 1.44°C/W @ 200 LFM | 5.70°C/W | Aluminum Alloy | Black Anodized |
|

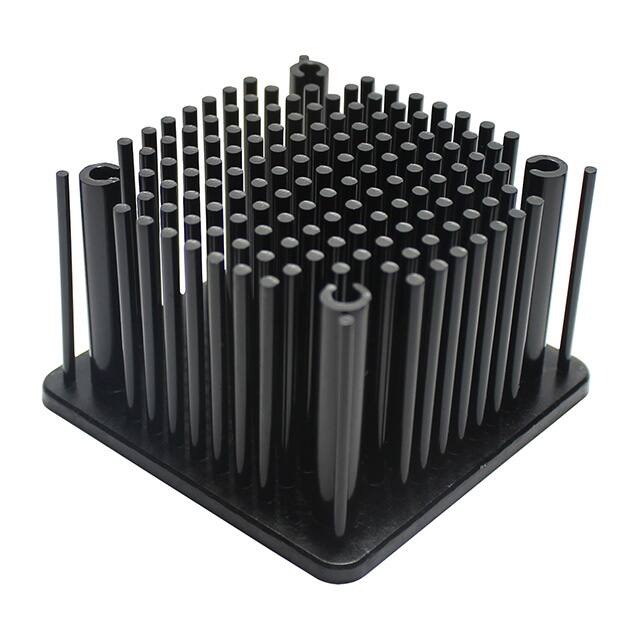

APR53-53-12CB/A01HEATSINK FORGED BLK ANO TOP MNT |
4,830 |
|
Datasheet | APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 2.087" (53.02mm) | 2.087" (53.02mm) | - | 0.457" (11.60mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
|
APR53-53-15CB/A01HEATSINK FORGED BLK ANO TOP MNT |
4,990 |
|
Datasheet | APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 2.087" (53.02mm) | 2.087" (53.02mm) | - | 0.575" (14.60mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
|
APR53-53-23CB/A01HEATSINK FORGED BLK ANO TOP MNT |
1,461 |
|
Datasheet | APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 2.087" (53.02mm) | 2.087" (53.02mm) | - | 0.890" (22.61mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
|
APR53-53-28CB/A01HEATSINK FORGED BLK ANO TOP MNT |
3,336 |
|
Datasheet | APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 2.087" (53.02mm) | 2.087" (53.02mm) | - | 1.087" (27.60mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
|
APR53-53-33CB/A01HEATSINK FORGED BLK ANO TOP MNT |
3,298 |
|
Datasheet | APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 2.087" (53.02mm) | 2.087" (53.02mm) | - | 1.283" (32.60mm) | - | - | - | Aluminum Alloy | Black Anodized |
|
APR55-55-12CB/A01HEATSINK FORGED BLK ANO TOP MNT |
1,484 |
|
Datasheet | APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 2.150" (54.60mm) | 2.150" (54.60mm) | - | 0.457" (11.60mm) | - | 2.68°C/W @ 200 LFM | 7.60°C/W | Aluminum Alloy | Black Anodized |
|
|
APR55-55-15CB/A01HEATSINK FORGED BLK ANO TOP MNT |
4,523 |
|
Datasheet | APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 2.150" (54.60mm) | 2.150" (54.60mm) | - | 0.575" (14.60mm) | - | 2.43°C/W @ 200 LFM | 7.15°C/W | Aluminum Alloy | Black Anodized |
|
|
APR55-55-18CB/A01HEATSINK FORGED BLK ANO TOP MNT |
1,165 |
|
Datasheet | APR | Tray | Active | Top Mount | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 2.150" (54.60mm) | 2.150" (54.60mm) | - | 0.693" (17.60mm) | - | 2.22°C/W @ 200 LFM | 6.75°C/W | Aluminum Alloy | Black Anodized |
