Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1253082.1WX36" EXTRUS 12554 XX8355-100 |
3,519 |
|
Datasheet | - | Box | Active | Top Mount, Extrusion | BGA | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 2.100" (53.34mm) | - | 1.000" (25.40mm) | - | - | 0.95°C/W | Aluminum | - |
|
1277636.00" WIDE X 36" FLATBACK HEATSI |
3,075 |
|
Datasheet | - | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 6.000" (152.40mm) | - | 0.124" (3.15mm) | - | - | 0.70°C/W | Aluminum | - |
|

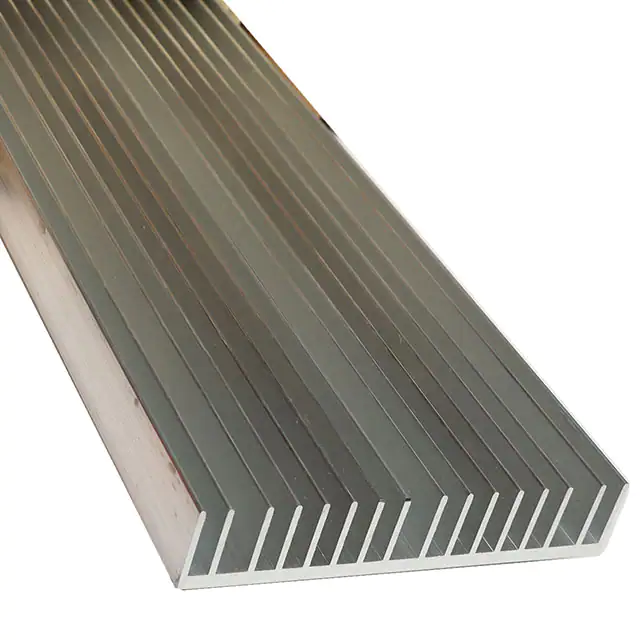

1253384.6WX36" EXTRUSION 12614 |
2,984 |
|
Datasheet | - | Box | Active | Top Mount, Extrusion | DC/DC Converter | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 4.600" (116.84mm) | - | 0.900" (22.86mm) | - | - | 0.53°C/W | Aluminum | - |
|
1277737.00" WIDE X 36" FLATBACK HEATSI |
2,433 |
|
Datasheet | - | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 7.000" (177.80mm) | - | 0.360" (9.14mm) | - | - | 0.67°C/W | Aluminum | - |
|
1277409.00" WIDE X 12" FLATBACK W/ MOU |
2,464 |
|
Datasheet | - | Box | Active | Top Mount, Extrusion | - | Bolt On | Rectangular, Fins | 12.000" (304.80mm) | 9.000" (228.60mm) | - | 1.020" (25.91mm) | - | - | 0.53°C/W | Aluminum | - |
|

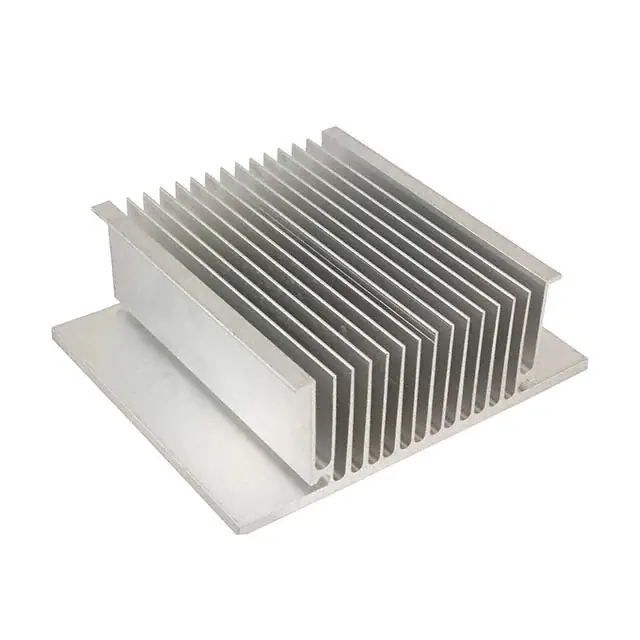

512-6MHEATSINK FOR PWR MOD/IGBT/RELAY |
3,900 |
|
Datasheet | 512 | Bulk | Active | Top Mount, Extrusion | Power Modules | Adhesive | Rectangular, Fins | 6.000" (152.40mm) | 7.200" (182.88mm) | - | 2.350" (59.69mm) | - | - | 0.65°C/W | Aluminum | - |
|
1277387.62" WIDE X 12" FLATBACK W/MOUN |
2,951 |
|
Datasheet | - | Box | Active | Top Mount, Extrusion | - | Bolt On | Rectangular, Fins | 12.000" (304.80mm) | 7.620" (193.55mm) | - | 1.655" (42.04mm) | - | - | 0.31°C/W | Aluminum | - |
|
1253263.79WX36" EXTRUSION 16304 XX5079 |
2,003 |
|
Datasheet | - | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 3.790" (96.27mm) | - | 2.000" (50.80mm) | - | - | 0.38°C/W | Aluminum | - |
|
1277605.748" WIDE X 12" FLATBACK HEATS |
3,970 |
|
Datasheet | - | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 12.000" (304.80mm) | 5.748" (146.00mm) | - | 0.905" (23.00mm) | - | - | 0.39°C/W | Aluminum | - |
|
1277716.75" WIDE X 36" FLATBACK HEATSI |
3,014 |
|
Datasheet | - | Box | Active | Top Mount, Extrusion | - | Adhesive | Rectangular, Fins | 36.000" (914.40mm) | 6.750" (171.45mm) | - | 1.630" (41.40mm) | - | - | 0.33°C/W | Aluminum | - |
