Heat Sinks
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Package Cooled | Attachment Method | Shape | Length | Width | Diameter | Fin Height | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Thermal Resistance @ Natural | Material | Material Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
290-1ABHEATSINK TO-220 VERT/HORZ BLK |
4,488 |
|
Datasheet | 290 | Bulk | Active | Board Level | TO-218, TO-202, TO-220 | Bolt On | Rectangular, Fins | 1.180" (29.97mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | 2.0W @ 44°C | 7.00°C/W @ 400 LFM | 22.00°C/W | Aluminum | Black Anodized |
|
287-1ABEHEATSINK FOR TO220 |
3,947 |
|
Datasheet | 287 | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.180" (29.97mm) | 1.000" (25.40mm) | - | 0.500" (12.70mm) | 4.0W @ 65°C | 7.80°C/W @ 200 LFM | 16.20°C/W | Aluminum | Black Anodized |
|
658-25ABHEATSINK CPU 28MM SQ BLK |
10,734 |
|
Datasheet | 658 | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.100" (27.94mm) | 1.100" (27.94mm) | - | 0.250" (6.35mm) | 2.0W @ 40°C | 5.00°C/W @ 500 LFM | - | Aluminum | Black Anodized |
|
658-60ABHEATSINK CPU 28MM SQ BLK W/OTAPE |
133 |
|
Datasheet | 658 | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Not Included) | Square, Pin Fins | 1.100" (27.94mm) | 1.100" (27.94mm) | - | 0.598" (15.20mm) | 2.5W @ 30°C | 2.00°C/W @ 500 LFM | - | Aluminum | Black Anodized |
|

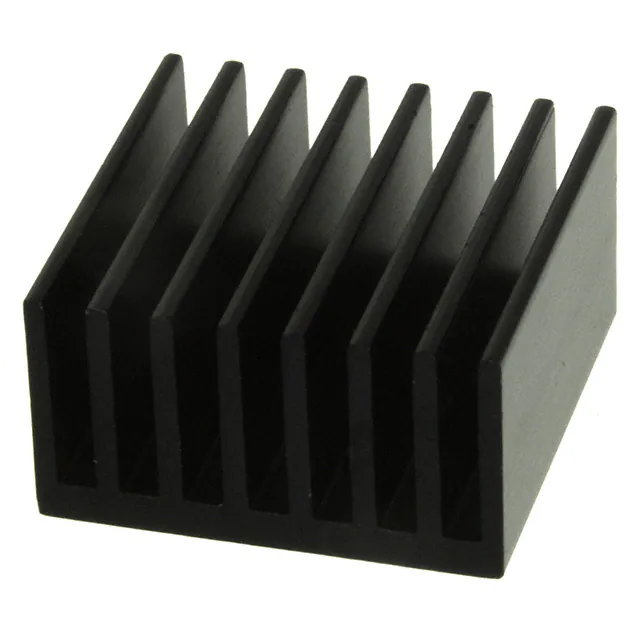

LTN20069HEAT SINK BGA/PGA 16.5X16.5X8.9 |
5,849 |
|
Datasheet | Penguin | Bulk | Active | Board Level | Assorted (BGA, LGA, CPU, ASIC...) | Thermal Tape, Adhesive (Included) | Square, Fins | 0.650" (16.51mm) | 0.653" (16.59mm) | - | 0.350" (8.89mm) | - | 8.00°C/W @ 500 LFM | - | Aluminum | Black Anodized |
|
637-10ABPEHEATSINK TO-220 VERT MT BLK 1" |
2,170 |
|
Datasheet | 637 | Box | Active | Board Level, Vertical | TO-220 | Bolt On and Board Mounts | Rectangular, Fins | 1.000" (25.40mm) | 1.375" (34.93mm) | - | 0.500" (12.70mm) | 6.0W @ 76°C | 5.80°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
|
657-20ABEPHEATSINK TO-220 W/PINS BLK 2" |
9,777 |
|
Datasheet | 657 | Bulk | Active | Board Level, Vertical | TO-218, TO-220, TO-247 | Bolt On and PC Pin | Rectangular, Fins | 1.000" (25.40mm) | 1.650" (41.91mm) | - | 2.000" (50.80mm) | 6.0W @ 32°C | 2.90°C/W @ 200 LFM | 5.30°C/W | Aluminum | Black Anodized |
|
647-15ABPEHEATSINK TO-220 W/PINS BLK 1.5" |
3,550 |
|
Datasheet | 647 | Bulk | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.500" (38.10mm) | 1.650" (41.91mm) | - | 1.000" (25.40mm) | 6.0W @ 37°C | 3.50°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|
624-25ABT4EHEATSINK CPU 21MM SQ W/DBL TAPE |
1,017 |
|
Datasheet | 624 | Bulk | Active | Top Mount | BGA | Thermal Tape, Adhesive (Included) | Square, Pin Fins | 0.827" (21.00mm) | 0.827" (21.00mm) | - | 0.250" (6.35mm) | - | 25.00°C/W @ 200 LFM | - | Aluminum | Black Anodized |
|

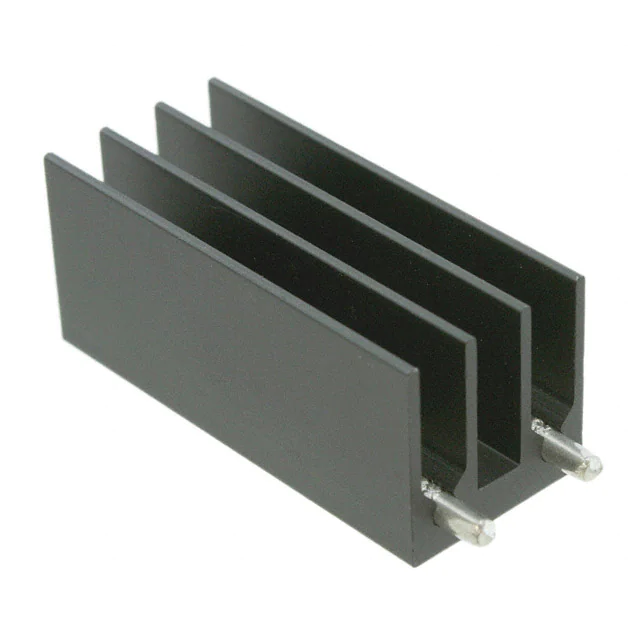

634-15ABPEHEATSINK SLIM VERT BLACK TO-220 |
2,519 |
|
Datasheet | 634 | Box | Active | Board Level, Vertical | TO-220 | Bolt On and PC Pin | Rectangular, Fins | 1.500" (38.10mm) | 0.640" (16.26mm) | - | 0.640" (16.26mm) | 3.0W @ 50°C | 2.00°C/W @ 300 LFM | 50.00°C/W | Aluminum | Black Anodized |
