Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TS11-674-153-BK-100-RA-DSWITCH TACTILE SPST-NO 0.05A 12V |
1,901 |
|
Datasheet | TS11 | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 15.30mm | Side Actuated | PC Pin | - | Non-Illuminated | - | - | 100gf | - | - | -30°C ~ 80°C |
|
|
TS11-674-105-BK-160-RA-DSWITCH TACTILE SPST-NO 0.05A 12V |
1,862 |
|
Datasheet | TS11 | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole, Right Angle | - | 10.50mm | Side Actuated | PC Pin | - | Non-Illuminated | - | - | 160gf | - | - | -30°C ~ 80°C |
|

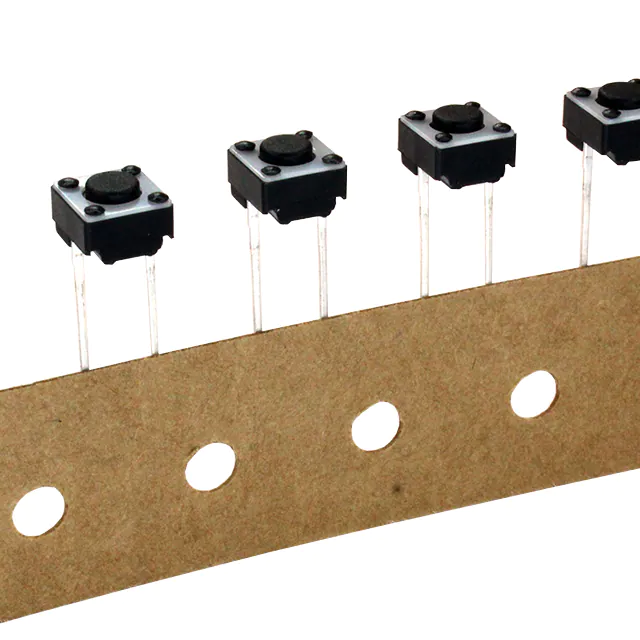

CR1102H4.3F260SWITCH TACTILE SPST-NO 0.05A 50V |
1,114 |
|
Datasheet | CR1102H | Cut Tape (CT) | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|

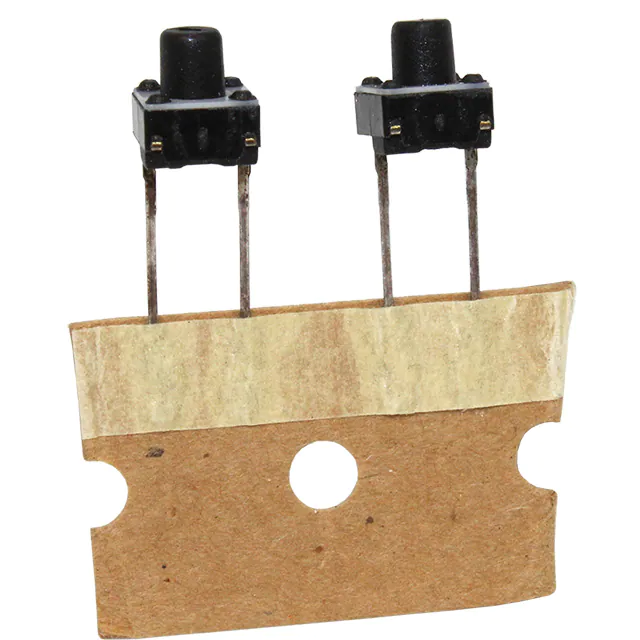

CR1102H7.0F260SWITCH TACTILE SPST-NO 0.05A 50V |
1,836 |
|
Datasheet | CR1102H | Cut Tape (CT) | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Through Hole | 7.00mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
TL1105DF100QSWITCH TACTILE SPST-NO 0.05A 12V |
13,437 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 13.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
|
CT11029.5F260SWITCH TACTILE SPST-NO 0.05A 50V |
8,289 |
|
Datasheet | CT1102 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Plunger for Cap | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
|
CT11029.5F160SWITCH TACTILE SPST-NO 0.05A 50V |
7,257 |
|
Datasheet | CT1102 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Plunger for Cap | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
1-1825955-4SWITCH TACTILE SPST-NO 0.05A 24V |
34,094 |
|
Datasheet | FSMJ | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | Grounding Pin | -35°C ~ 85°C |
|
TS18-5-17-SL-260-SMT-TRSWITCH TACTILE SPST-NO 0.05A 12V |
8,643 |
|
Datasheet | TS18 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 1.70mm | - | Top Actuated | Gull Wing | 5.20mm x 5.20mm | Non-Illuminated | - | - | 260gf | - | - | -30°C ~ 80°C |
|
TS04-66-73-BK-160-SMTSWITCH TACTILE SPST-NO 0.05A 12V |
4,226 |
|
Datasheet | TS04 | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 7.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -30°C ~ 80°C |
|

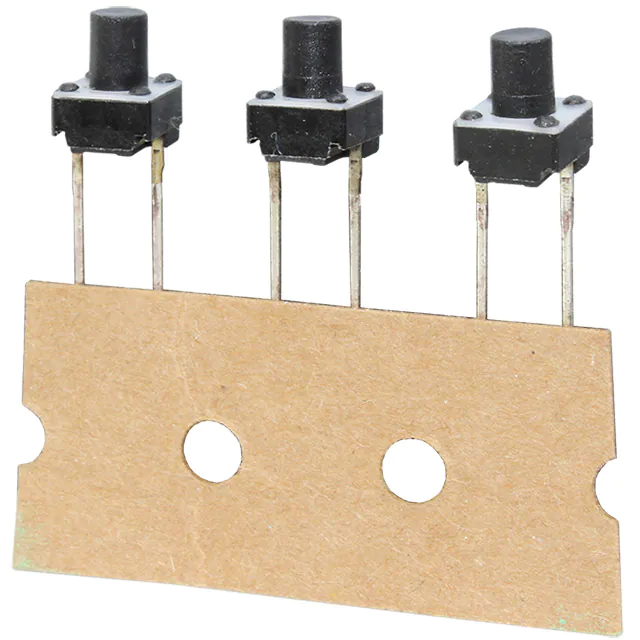

CR1102H9.5F260SWITCH TACTILE SPST-NO 0.05A 50V |
1,840 |
|
Datasheet | CR1102H | Cut Tape (CT) | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
1-1825910-5SWITCH TACTILE SPST-NO 0.05A 24V |
1,507 |
|
Datasheet | FSMJ | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 105°C |
|
TL1105EF100QSWITCH TACTILE SPST-NO 0.05A 12V |
7,919 |
|
Datasheet | TL1105 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
|
CT1102V3.15F100SWITCH TACTILE SPST-NO 0.05A 50V |
5,956 |
|
Datasheet | CT1102V | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Plunger for Cap | Through Hole, Right Angle | - | 3.15mm | Side Actuated | PC Pin | 7.50mm x 6.30mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 85°C |
|
1301.9309SWITCH TACTILE SPST-NO 0.05A 12V |
3,067 |
|
Datasheet | LPS | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole | 7.40mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | IP40 | Tactile Feedback | -20°C ~ 70°C |
|
|
TS18-5-15-SL-160-SMT-TRSWITCH TACTILE SPST-NO 0.05A 12V |
2,898 |
|
Datasheet | TS18 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 1.50mm | - | Top Actuated | Gull Wing | 5.20mm x 5.20mm | Non-Illuminated | - | - | 160gf | - | - | -30°C ~ 80°C |
|
CT110211.0F100SWITCH TACTILE SPST-NO 0.05A 50V |
1,963 |
|
Datasheet | CT1102 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Plunger for Cap | Through Hole | 11.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 85°C |
|
CT110212.0F100SWITCH TACTILE SPST-NO 0.05A 50V |
1,891 |
|
Datasheet | CT1102 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Plunger for Cap | Through Hole | 12.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 85°C |
|
CT110211.5F100SWITCH TACTILE SPST-NO 0.05A 50V |
1,872 |
|
Datasheet | CT1102 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Plunger for Cap | Through Hole | 11.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 85°C |
|
|
CT110211.5F260SWITCH TACTILE SPST-NO 0.05A 50V |
1,862 |
|
Datasheet | CT1102 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 50VDC | Plunger for Cap | Through Hole | 11.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
