Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
4FSH942SWITCH TACTILE SPST-NO 0.05A 24V |
6,300 |
|
Datasheet | Multimec® 4 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Surface Mount | 10.40mm | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Illuminated | LED, Yellow | 2 VDC | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -30°C ~ 85°C |
|
5GTH93542SWITCH TACTILE SPST-NO 0.05A 24V |
4,099 |
|
Datasheet | Multimec® 5 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 6.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | LED, Yellow | 2 VDC | 350gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|
TL6215RF200BDTSWITCH TACTILE SPST-NO 0.05A 12V |
14,990 |
|
Datasheet | TL6215 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole, Right Angle | - | 9.60mm | Side Actuated | PC Pin | 7.70mm x 6.65mm | Illuminated | LED, Blue | 3.3 VDC | 200gf | IP67 - Dust Tight, Waterproof | - | -20°C ~ 70°C |
|
TL1265WQSCLRSWITCH TACTILE SPST-NO 0.05A 12V |
763 |
|
Datasheet | TL1265 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Round Button | Through Hole | 12.00mm | - | Top Actuated | PC Pin | 7.00mm x 6.80mm | Illuminated | LED, White | 3.6 VDC | 160gf | - | Clear Cap | -20°C ~ 70°C |
|
JB15LPC-JCSWITCH TACTILE SPST-NO 0.05A 24V |
802 |
|
Datasheet | JB | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Red | 1.8 VDC | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
ITS13FR1STSWITCH TACTILE SPST-NO 0.05A 12V |
229 |
|
Datasheet | ITS | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole, Right Angle | - | - | Side Actuated | PC Pin | 7.00mm x 6.80mm | Illuminated | LED, Green/Red | 2.5 VDC | 160gf | - | - | -25°C ~ 70°C |
|
5GSH93522SWITCH TACTILE SPST-NO 0.05A 24V |
2,179 |
|
Datasheet | Multimec® 5 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Surface Mount | 6.40mm | - | Top Actuated | Gull Wing | 10.10mm x 10.10mm | Illuminated | LED, Green | 2.2 VDC | 350gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|
3FTH920SWITCH TACTILE SPST-NO 0.05A 24V |
1,686 |
|
Datasheet | Multimec® 3 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 10.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | LED, Green | 2.1 VDC | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 160°C |
|
320.02E11.09YELSWITCH TACT SPST-NO 0.025A 50V |
769 |
|
Datasheet | 320 | Bulk | Active | SPST-NO | Off-Mom | 0.025A @ 50VDC | Round Button | Through Hole | 15.30mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Yellow Cap | -20°C ~ 70°C |
|
K5V 1 YG 4 3 TSWITCH TACTILE SPDT 0.1A 32V |
3,281 |
|
Datasheet | K5V | Tray | Active | SPDT | On-Mom | 0.1A @ 32VDC | Translucent | Through Hole, Right Angle | - | 12.40mm | Side Actuated | PC Pin | 8.00mm x 10.10mm | Illuminated | LED, Green/Yellow | - | 400gf | IP40 | Tactile Feedback | -40°C ~ 85°C |
|

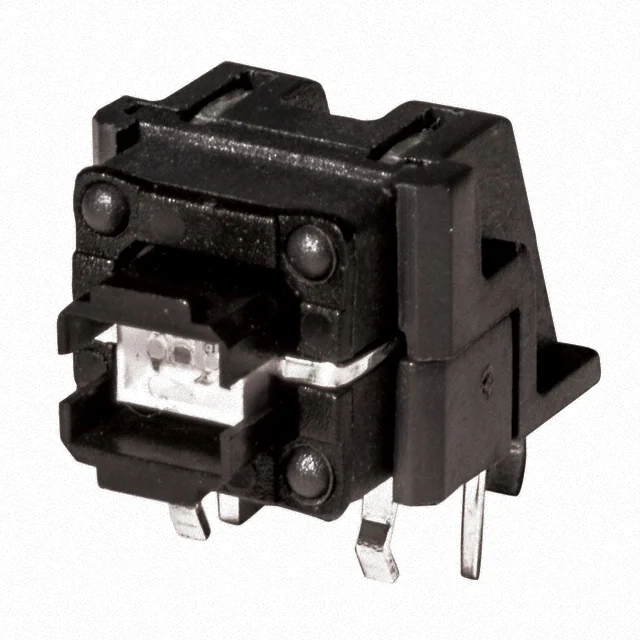

ITS40FR2STSWITCH TACTILE SPST-NO 0.05A 12V |
190 |
|
Datasheet | ITS | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Through Hole, Right Angle | - | - | Side Actuated | PC Pin | 8.30mm x 9.70mm | Illuminated | LED, Blue | 3.6 VDC | 160gf | - | - | -25°C ~ 70°C |
|
EDM450AUAC0 LFSSWITCH TACT SPST-NO 0.05A 100V |
3,338 |
|
Datasheet | EDM | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 100VAC/DC | Snap Dome | Through Hole | 1.20mm | - | Top Actuated | PC Pin | - | Non-Illuminated | - | - | 450gf | - | Tactile Feedback | -55°C ~ 85°C |
|
4FTH901SWITCH TACTILE SPST-NO 0.05A 24V |
882 |
|
Datasheet | Multimec® 4 | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 10.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | LED, Blue | 3.35 VDC | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -30°C ~ 85°C |
|
3.14.200.022/0000SWITCH TACTILE SPST-NO 0.25A 35V |
146 |
|
Datasheet | RF15 | Tube | Active | SPST-NO | Off-Mom | 0.25A @ 35VAC/DC | Square Button | Through Hole | 9.70mm | - | Top Actuated | PC Pin | 15.00mm x 15.00mm | Illuminated | LED, Green | - | 296gf | - | - | -25°C ~ 70°C |
|
TS02-66-70-BK-260-SCR-DSWITCH TACTILE SPST-NO 0.05A 12V |
8,217 |
|
Datasheet | TS02 | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 7.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -30°C ~ 80°C |
|
|
TS02-66-70-BK-160-SCR-DSWITCH TACTILE SPST-NO 0.05A 12V |
6,235 |
|
Datasheet | TS02 | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 7.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -30°C ~ 80°C |
|
|
TS02-66-43-BK-260-SCR-DSWITCH TACTILE SPST-NO 0.05A 12V |
5,400 |
|
Datasheet | TS02 | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -30°C ~ 80°C |
|
|
TS02-66-43-BK-100-SCR-DSWITCH TACTILE SPST-NO 0.05A 12V |
5,327 |
|
Datasheet | TS02 | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -30°C ~ 80°C |
|
|
TS02-66-50-BK-260-SCR-DSWITCH TACTILE SPST-NO 0.05A 12V |
4,425 |
|
Datasheet | TS02 | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 5.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -30°C ~ 80°C |
|
TS02-66-130-BK-100-LCR-DSWITCH TACTILE SPST-NO 0.05A 12V |
6,503 |
|
Datasheet | TS02 | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 13.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -30°C ~ 80°C |
