Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVQ-11G09KSWITCH TACTILE SPST-NO 0.02A 15V |
1,492 |
|
Datasheet | EVQ11 | Cut Tape (CT) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 130gf | - | - | -20°C ~ 70°C |
|
EVQ-11L04MSWITCH TACTILE SPST-NO 0.02A 15V |
4,904 |
|
Datasheet | EVQ11 | Cut Tape (CT) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
EVQ-11L05RSWITCH TACTILE SPST-NO 0.02A 15V |
3,046 |
|
Datasheet | EVQ11 | Cut Tape (CT) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
EVQ-11L07KSWITCH TACTILE SPST-NO 0.02A 15V |
3,519 |
|
Datasheet | EVQ11 | Cut Tape (CT) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 7.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
|
EVQ-11L09KSWITCH TACTILE SPST-NO 0.02A 15V |
3,459 |
|
Datasheet | EVQ11 | Cut Tape (CT) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
|
EVQ-11U04MSWITCH TACTILE SPST-NO 0.02A 15V |
1,735 |
|
Datasheet | EVQ11 | Cut Tape (CT) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
|
|
EVQ-11U05RSWITCH TACTILE SPST-NO 0.02A 15V |
1,299 |
|
Datasheet | EVQ11 | Cut Tape (CT) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
|
|
EVQ-11U07KSWITCH TACTILE SPST-NO 0.02A 15V |
4,289 |
|
Datasheet | EVQ11 | Cut Tape (CT) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 7.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
|
|
EVQ-11U09KSWITCH TACTILE SPST-NO 0.02A 15V |
4,551 |
|
Datasheet | EVQ11 | Cut Tape (CT) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
|
320.01U11SWITCH TACT SPST-NO 0.025A 50V |
4,886 |
|
Datasheet | 320 | Bulk | Obsolete | SPST-NO | Off-Mom | 0.025A @ 50VDC | Square Button | Through Hole | 10.00mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Tactile Feedback | -20°C ~ 70°C |
|
|
320.02U11SWITCH TACT SPST-NO 0.025A 50V |
1,780 |
|
Datasheet | 320 | Bulk | Obsolete | SPST-NO | Off-Mom | 0.025A @ 50VDC | Plunger for Cap | Through Hole | - | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Tactile Feedback | -20°C ~ 70°C |
|
B3M-6009SWITCH TACTILE SPST-NO 0.05A 12V |
1,242 |
|
Datasheet | B3M | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 70gf | - | - | -25°C ~ 70°C |
|

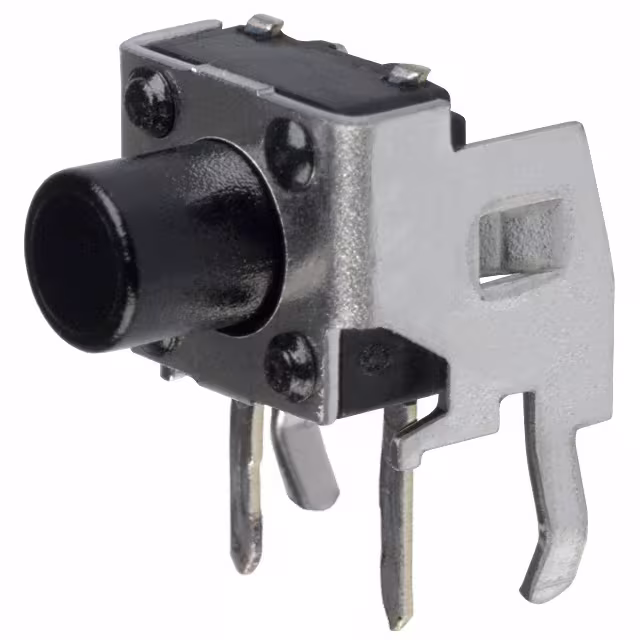

EVQ-PF006KSWITCH TACTILE SPST-NO 0.02A 15V |
3,869 |
|
Datasheet | EVQPF | Bulk | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole, Right Angle | - | 5.85mm | Side Actuated | PC Pin | 7.50mm x 7.10mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
|
EVQ-PAE09KSWITCH TACTILE SPST-NO 0.02A 15V |
2,620 |
|
Datasheet | EVQPA | Bulk | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
EVQ-PAD05RSWITCH TACTILE SPST-NO 0.02A 15V |
4,494 |
|
Datasheet | EVQPA | Bulk | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 130gf | - | - | -20°C ~ 70°C |
|

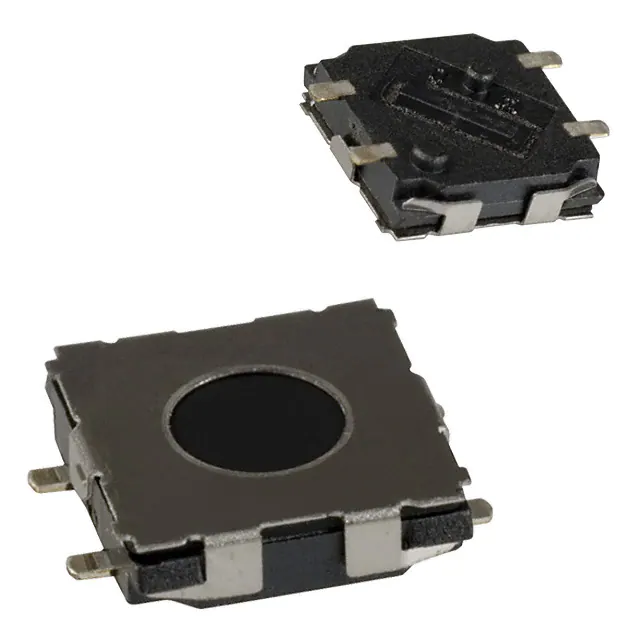

EVQ-PWAA15SWITCH TACT SPST-NO 0.02A 15V |
1,612 |
|
Datasheet | EVQPW | Bulk | Obsolete | SPST-NO x 2 | Off-Mom-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 1.50mm | - | Top Actuated | Gull Wing | 6.40mm x 6.20mm | Non-Illuminated | - | - | 100/260gf | Dust Proof | Board Guide | -20°C ~ 70°C |
|
EVQ-PVH05KSWITCH TACTILE SPST-NO 0.05A 12V |
1,577 |
|
Datasheet | EVQPV | Cut Tape (CT) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.10mm x 6.00mm | Non-Illuminated | - | - | 350gf | - | - | -30°C ~ 85°C |
|
|
EVQ-PW007KSWITCH TACTILE DPST-NO 0.05A 12V |
2,049 |
|
- |
EVQPW | Bulk | Obsolete | DPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 7.10mm | - | Top Actuated | PC Pin | 8.50mm x 8.50mm | Non-Illuminated | - | - | 130gf | Dust Proof | - | - |
|
EVQ-PF003MSWITCH TACTILE SPST-NO 0.02A 15V |
4,513 |
|
Datasheet | EVQPF | Bulk | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole, Right Angle | - | 3.15mm | Side Actuated | PC Pin | 7.50mm x 7.10mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
|
EVQ-PF004RSWITCH TACTILE SPST-NO 0.02A 15V |
3,420 |
|
Datasheet | EVQPF | Bulk | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole, Right Angle | - | 3.85mm | Side Actuated | PC Pin | 7.50mm x 7.10mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
