Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVQ-PJA05QSWITCH TACTILE SPST-NO 0.05A 12V |
3,863 |
|
Datasheet | EVQPJ | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 3.50mm | Non-Illuminated | - | - | 100gf | - | Tactile Feedback | -30°C ~ 85°C |
|

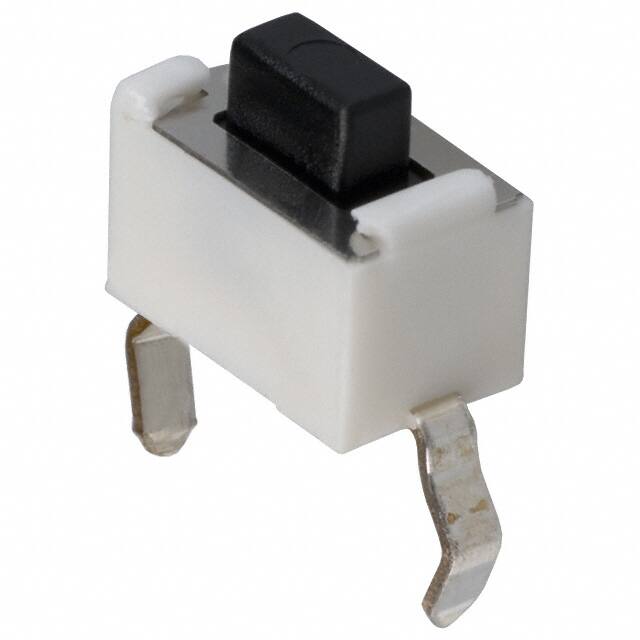

EVQ-PJB05KSWITCH TACTILE SPST-NO 0.05A 12V |
4,367 |
|
Datasheet | EVQPJ | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 3.50mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -30°C ~ 85°C |
|
EVQ-QFU02KSWITCH TACTILE SPST-NO 0.02A 15V |
1,249 |
|
- |
EVQQF | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 2.00mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 130gf | - | - | -20°C ~ 70°C |
|
EVQ-PAC04MSWITCH TACTILE SPST-NO 0.02A 15V |
4,145 |
|
Datasheet | EVQPA | Bulk | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
|
|
EVQ-PAD04MSWITCH TACTILE SPST-NO 0.02A 15V |
3,976 |
|
Datasheet | EVQPA | Bulk | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 130gf | - | - | -20°C ~ 70°C |
|
|
EVQ-PAE04MSWITCH TACTILE SPST-NO 0.02A 15V |
2,446 |
|
Datasheet | EVQPA | Bulk | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -20°C ~ 70°C |
|
|
EVQ-PAG04MSWITCH TACTILE SPST-NO 0.02A 15V |
3,301 |
|
Datasheet | EVQPA | Bulk | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -20°C ~ 70°C |
|
EVQ-PAC05RSWITCH TACTILE SPST-NO 0.02A 15V |
4,170 |
|
Datasheet | EVQPA | Bulk | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
|
EVQ-PAC07KSWITCH TACTILE SPST-NO 0.02A 15V |
1,945 |
|
Datasheet | EVQPA | Bulk | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 7.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
|
EVQ-PAC09KSWITCH TACTILE SPST-NO 0.02A 15V |
4,216 |
|
Datasheet | EVQPA | Bulk | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -20°C ~ 70°C |
|
EVQ-PBC04MSWITCH TACTILE SPST-NO 0.02A 15V |
2,248 |
|
Datasheet | EVQPB | Bulk | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | Grounding Pin | -20°C ~ 70°C |
|

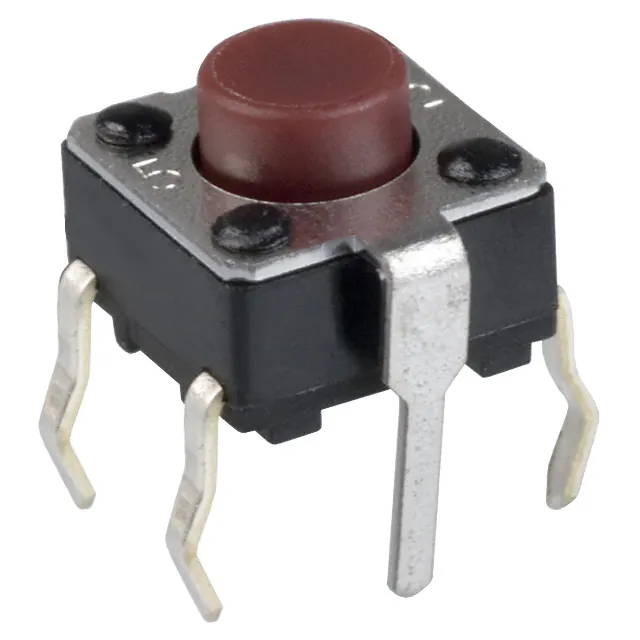

EVQ-PBC05RSWITCH TACTILE SPST-NO 0.02A 15V |
1,590 |
|
Datasheet | EVQPB | Bulk | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | Grounding Pin | -20°C ~ 70°C |
|

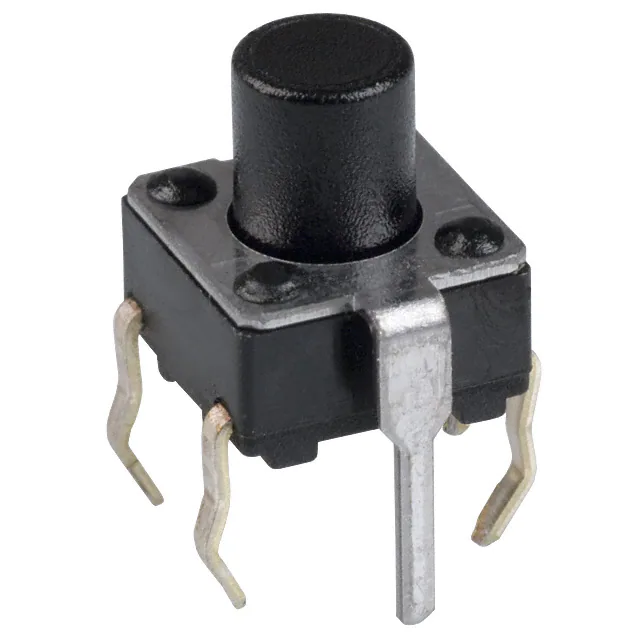

EVQ-PBC07KSWITCH TACTILE SPST-NO 0.02A 15V |
4,207 |
|
Datasheet | EVQPB | Bulk | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 7.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | Grounding Pin | -20°C ~ 70°C |
|
EVQ-PBC09KSWITCH TACTILE SPST-NO 0.02A 15V |
3,267 |
|
Datasheet | EVQPB | Bulk | Obsolete | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | Grounding Pin | -20°C ~ 70°C |
|
EVQ-QJJ05QSWITCH TACT SPST-NO 0.005A 12V |
2,713 |
|
Datasheet | EVQQJ | Cut Tape (CT) | Obsolete | SPST-NO | Off-Mom | 0.005A @ 12VDC | Standard | Through Hole | 5.00mm | - | Top Actuated | PC Pin | 8.00mm x 8.00mm | Non-Illuminated | - | - | 80gf | - | - | -20°C ~ 70°C |
|
320.02E11.08WHTSWITCH TACT SPST-NO 0.025A 50V |
2,763 |
|
Datasheet | 320 | Bulk | Obsolete | SPST-NO | Off-Mom | 0.025A @ 50VDC | Round Button | Through Hole | 14.40mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | White Cap | -20°C ~ 70°C |
|
320.22E11BLKSWITCH TACT SPST-NO 0.025A 50V |
4,680 |
|
Datasheet | 320 | Bulk | Obsolete | SPST-NO | Off-Mom | 0.025A @ 50VDC | Square Button | Through Hole | 12.60mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Black Cap | -20°C ~ 70°C |
|
320.22E11GRYSWITCH TACT SPST-NO 0.025A 50V |
2,109 |
|
Datasheet | 320 | Bulk | Obsolete | SPST-NO | Off-Mom | 0.025A @ 50VDC | Square Button | Through Hole | 12.60mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Gray Cap | -20°C ~ 70°C |
|
320.22E11REDSWITCH TACT SPST-NO 0.025A 50V |
3,506 |
|
Datasheet | 320 | Bulk | Obsolete | SPST-NO | Off-Mom | 0.025A @ 50VDC | Square Button | Through Hole | 12.60mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | Red Cap | -20°C ~ 70°C |
|
320.22E11WHTSWITCH TACT SPST-NO 0.025A 50V |
2,202 |
|
Datasheet | 320 | Bulk | Obsolete | SPST-NO | Off-Mom | 0.025A @ 50VDC | Square Button | Through Hole | 12.60mm | - | Top Actuated | PC Pin | 12.40mm x 12.40mm | Non-Illuminated | - | - | 135gf | - | White Cap | -20°C ~ 70°C |
