Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

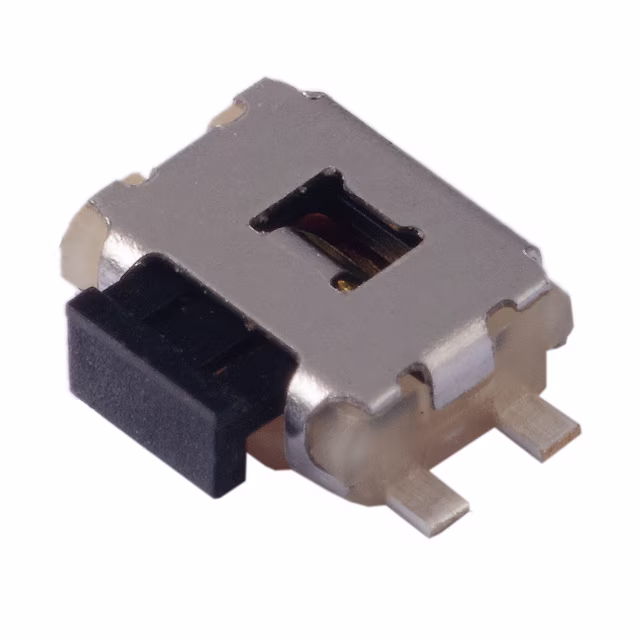

223HMSABRSWITCH TACTILE SPST-NO 0.05A 12V |
2,981 |
|
Datasheet | 223H | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | 4.50mm | Side Actuated | Gull Wing | 6.40mm x 3.50mm | Non-Illuminated | - | - | 220gf | - | - | -40°C ~ 85°C |
|
223HMSABRBSWITCH TACTILE SPST-NO 0.05A 12V |
1,167 |
|
Datasheet | 223H | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | 4.50mm | Side Actuated | Gull Wing | 6.40mm x 3.50mm | Non-Illuminated | - | - | 220gf | - | Grounding Pin | -40°C ~ 85°C |
|
223HMSABRBGSWITCH TACTILE SPST-NO 0.05A 12V |
3,891 |
|
Datasheet | 223H | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | 4.50mm | Side Actuated | Gull Wing | 6.40mm x 3.50mm | Non-Illuminated | - | - | 220gf | - | Board Guide, Grounding Pin | -40°C ~ 85°C |
|
222PMVAARSWITCH TACTILE SPST-NO 0.05A 32V |
2,954 |
|
Datasheet | 222P | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 5.60mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 200gf | IP67 - Dust Tight, Waterproof | Tactile Feedback | -40°C ~ 85°C |
|
|
226HJ1VBARSWITCH TACTILE SPST-NO 0.05A 12V |
2,123 |
|
Datasheet | 226H | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 3.90mm x 2.90mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
226HJ1VBBRBSWITCH TACTILE SPST-NO 0.05A 12V |
3,297 |
|
Datasheet | 226H | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 3.90mm x 2.90mm | Non-Illuminated | - | - | 250gf | - | - | -40°C ~ 85°C |
|
|
226HJ1VBBRSWITCH TACTILE SPST-NO 0.05A 12V |
1,113 |
|
Datasheet | 226H | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 3.90mm x 2.90mm | Non-Illuminated | - | - | 250gf | - | - | -40°C ~ 85°C |
|
|
226HJ1VBARBSWITCH TACTILE SPST-NO 0.05A 12V |
2,677 |
|
Datasheet | 226H | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 3.90mm x 2.90mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
226HJ1VAARSWITCH TACTILE SPST-NO 0.05A 12V |
3,890 |
|
Datasheet | 226H | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Plunger for Cap | Surface Mount | 2.00mm | - | Top Actuated | J Lead | 3.90mm x 2.90mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
|
226HJ1VAARBSWITCH TACTILE SPST-NO 0.05A 12V |
1,117 |
|
Datasheet | 226H | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 2.00mm | - | Top Actuated | J Lead | 3.90mm x 2.90mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
