Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
224AMVCBRSWITCH TACTILE SPST-NO 0.05A 12V |
1,244 |
|
Datasheet | 224A | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 12.00mm x 12.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 85°C |
|
|
224ADVACSWITCH TACTILE SPST-NO 0.05A 12V |
4,841 |
|
Datasheet | 224A | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 7.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 120gf | - | - | -40°C ~ 85°C |
|
|
224AMVCCRSWITCH TACTILE SPST-NO 0.05A 12V |
3,472 |
|
Datasheet | 224A | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 12.00mm x 12.00mm | Non-Illuminated | - | - | 120gf | - | - | -40°C ~ 85°C |
|
|
224ADVBCSWITCH TACTILE SPST-NO 0.05A 12V |
1,837 |
|
Datasheet | 224A | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 8.50mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 120gf | - | - | -40°C ~ 85°C |
|
|
224AMVACRSWITCH TACTILE SPST-NO 0.05A 12V |
1,768 |
|
Datasheet | 224A | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 7.30mm | - | Top Actuated | Gull Wing | 12.00mm x 12.00mm | Non-Illuminated | - | - | 120gf | - | - | -40°C ~ 85°C |
|
|
224AMVBCRSWITCH TACTILE SPST-NO 0.05A 12V |
2,332 |
|
Datasheet | 224A | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 8.50mm | - | Top Actuated | Gull Wing | 12.00mm x 12.00mm | Non-Illuminated | - | - | 120gf | - | - | -40°C ~ 85°C |
|
|
224AMVCARSWITCH TACTILE SPST-NO 0.05A 12V |
1,355 |
|
Datasheet | 224A | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 12.00mm x 12.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|

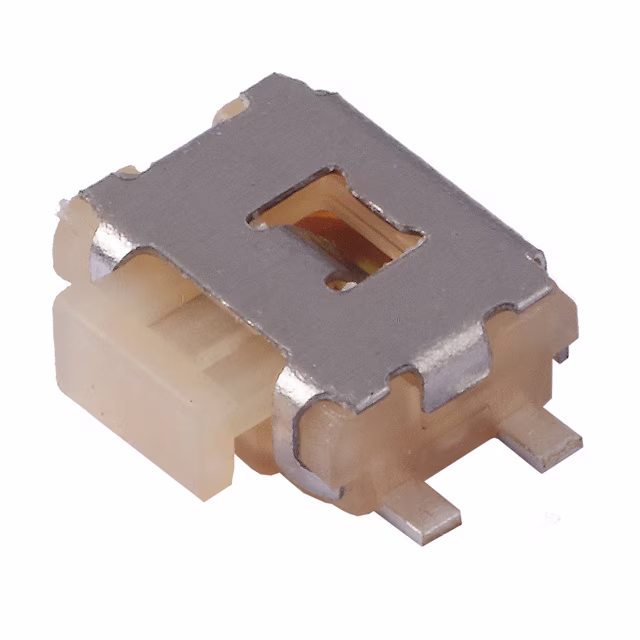

223HMSAARSWITCH TACTILE SPST-NO 0.05A 12V |
4,429 |
|
Datasheet | 223H | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | 4.50mm | Side Actuated | Gull Wing | 6.40mm x 3.50mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|

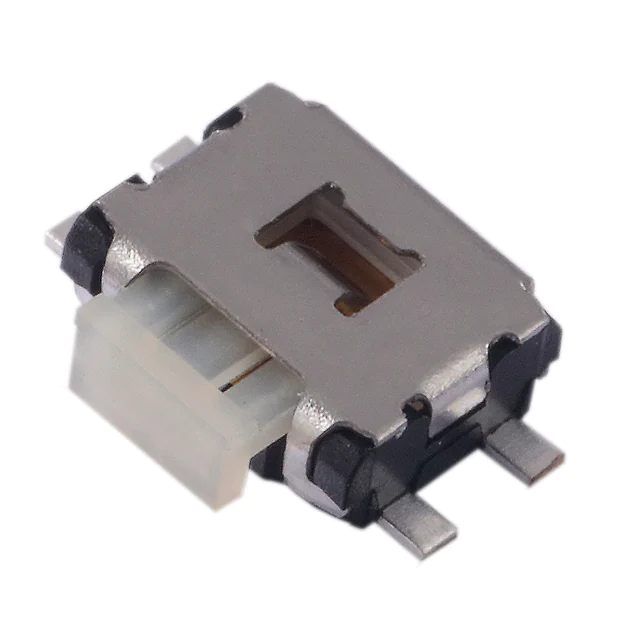

223HMSAARBSWITCH TACTILE SPST-NO 0.05A 12V |
3,973 |
|
Datasheet | 223H | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | 4.50mm | Side Actuated | Gull Wing | 6.40mm x 3.50mm | Non-Illuminated | - | - | 160gf | - | Grounding Pin | -40°C ~ 85°C |
|

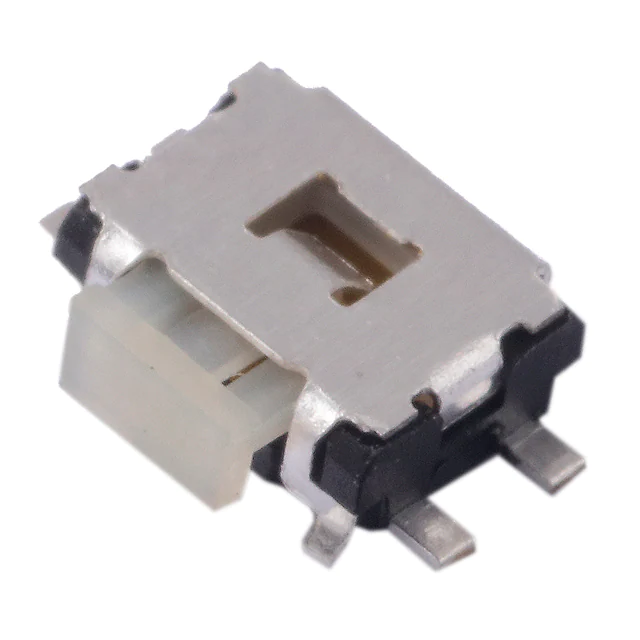

223HMSAARBGSWITCH TACTILE SPST-NO 0.05A 12V |
1,580 |
|
Datasheet | 223H | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | 4.50mm | Side Actuated | Gull Wing | 6.40mm x 3.50mm | Non-Illuminated | - | - | 160gf | - | Board Guide, Grounding Pin | -40°C ~ 85°C |
