Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Y31AG1W51FP LFSSWITCH TACTILE |
3,246 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
KSL1M411 LFTRSWITCH TACTILE SPST-NO 0.05A 32V |
3,787 |
|
Datasheet | KSL | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Through Hole | 4.70mm | - | Top Actuated | PC Pin | 7.40mm x 7.40mm | Non-Illuminated | - | - | 300gf | IP60 - Dust Tight | Grounding Pin | -40°C ~ 85°C |
|
|
KSL1M511 LFTRSWITCH TACTILE SPST-NO 0.05A 32V |
3,168 |
|
Datasheet | KSL | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Through Hole | 4.70mm | - | Top Actuated | PC Pin | 7.40mm x 7.40mm | Non-Illuminated | - | - | 500gf | IP60 - Dust Tight | Grounding Pin | -40°C ~ 85°C |
|
|
KSFI0V911 70SH CONNEX 3.3 LFTRSWITCH TACTILE |
2,995 |
|
Datasheet | * | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
KSC523GR0HSSWITCH TACTILE SPST-NO 0.01A 32V |
4,614 |
|
Datasheet | KSC5 | Bulk | Active | SPST-NO | Off-Mom | 0.01A @ 32VDC | Standard | Surface Mount | 5.60mm | - | Top or Side Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 200gf | IP50 - Dust Protected | Sealed | -40°C ~ 125°C |
|
|
KSC523JR0HSSWITCH TACTILE SPST-NO 0.01A 32V |
2,113 |
|
Datasheet | KSC5 | Bulk | Active | SPST-NO | Off-Mom | 0.01A @ 32VDC | Standard | Surface Mount | 5.60mm | - | Top or Side Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 200gf | IP50 - Dust Protected | Sealed | -40°C ~ 125°C |
|
KSC321GSWITCH TACTILE SPST-NO 0.05A 32V |
1,677 |
|
Datasheet | KSC | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 3.50mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 200gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
KSC321JSWITCH TACTILE SPST-NO 0.05A 32V |
4,585 |
|
Datasheet | KSC | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 3.50mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 200gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
PTS645VK39TR LFSSWITCH TACT 6MM 260GF 3.85MM VRA |
4,894 |
|
Datasheet | * | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

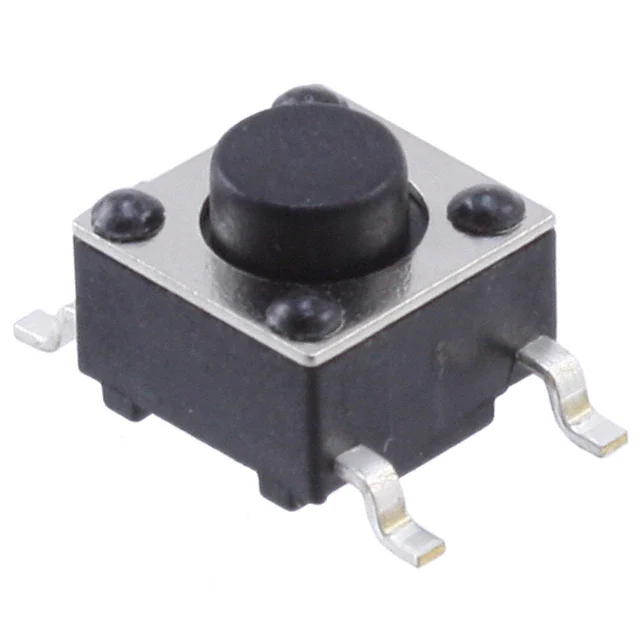

RS-014R05B1-SMA10 RTSWITCH TACTILE SPST-NO 0.05A 12V |
1,715 |
|
Datasheet | RS, COMAX | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | - |
