Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PTS820J25MPSMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
4,996 |
|
Datasheet | PTS820 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 3.90mm x 2.90mm | Non-Illuminated | - | - | 160gf | - | Board Guide | -40°C ~ 85°C |
|
|
PTS820J25KPSMTR LFSSWITCH TACTILE SPST-NO 0.05A 12V |
3,949 |
|
Datasheet | PTS820 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 2.50mm | - | Top Actuated | J Lead | 3.90mm x 2.90mm | Non-Illuminated | - | - | 250gf | - | Board Guide | -40°C ~ 85°C |
|
|
KMR433G ULC LFGSWITCH TACTILE SPST-NO 0.01A 32V |
2,559 |
|
Datasheet | KMR4 | Bulk | Active | SPST-NO | Off-Mom | 0.01A @ 32VDC | Standard | Surface Mount | 2.50mm | - | Top Actuated | Gull Wing | 4.60mm x 2.80mm | Non-Illuminated | - | - | 300gf | - | Grounding Pin | -40°C ~ 85°C |
|
|
KMR433NG ULC LFGSWITCH TACTILE SPST-NO 0.01A 32V |
3,236 |
|
Datasheet | KMR4 | Bulk | Active | SPST-NO | Off-Mom | 0.01A @ 32VDC | Standard | Surface Mount | 2.50mm | - | Top Actuated | Gull Wing | 4.60mm x 2.80mm | Non-Illuminated | - | - | 300gf | - | - | -40°C ~ 85°C |
|
PTS645SL70TRSWITCH TACTILE SPST-NO 0.05A 12V |
2,987 |
|
Datasheet | PTS645 | Cut Tape (CT) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Through Hole | 7.00mm | - | Top Actuated | PC Pin | 6.00mm x 6.00mm | Non-Illuminated | - | - | 130gf | - | - | -10°C ~ 60°C |
|
KSI0V411 LFTSWITCH TACTILE SPST-NO 0.05A 32V |
4,832 |
|
Datasheet | KSI | Bulk | Obsolete | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Through Hole, Right Angle | - | 4.01mm | Side Actuated | PC Pin | 8.77mm x 8.00mm | Non-Illuminated | - | - | 300gf | IP65 - Dust Tight, Water Resistant | - | -40°C ~ 90°C |
|

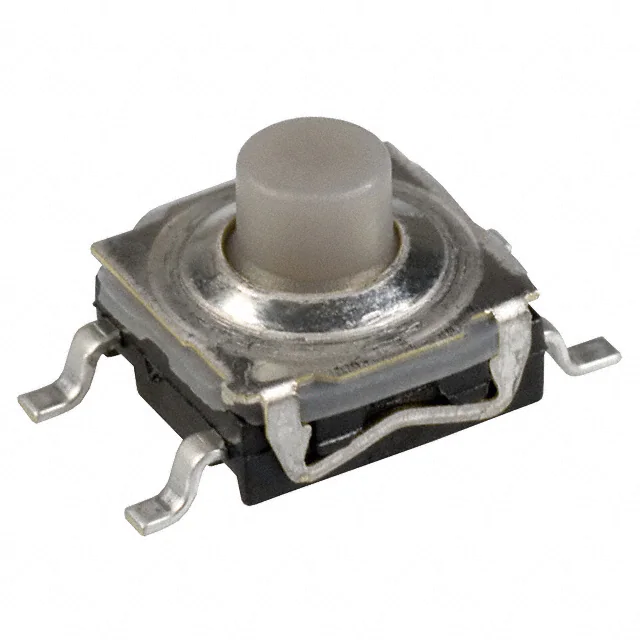

KST221GSWITCH TACTILE SPST-NO 0.05A 32V |
2,258 |
|
Datasheet | KST | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 200gf | IP40 | - | -40°C ~ 85°C |
|

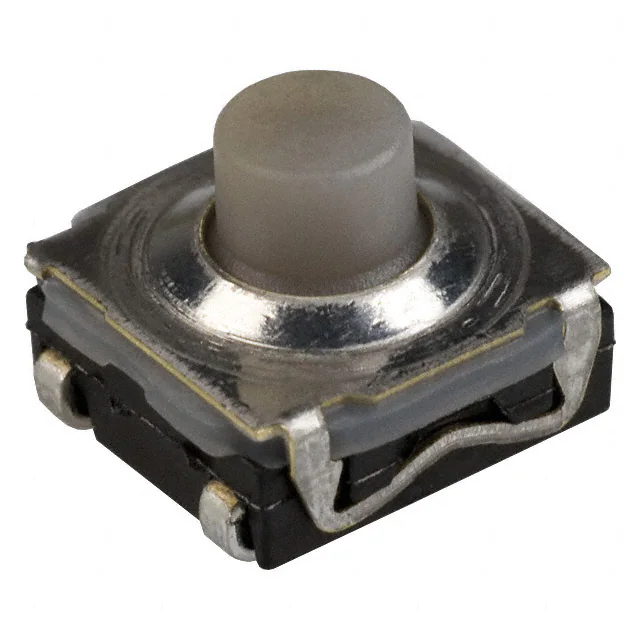

KST221JSWITCH TACTILE SPST-NO 0.05A 32V |
4,942 |
|
Datasheet | KST | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.05A @ 32VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | J Lead | 6.20mm x 6.20mm | Non-Illuminated | - | - | 200gf | IP40 | - | -40°C ~ 85°C |
|

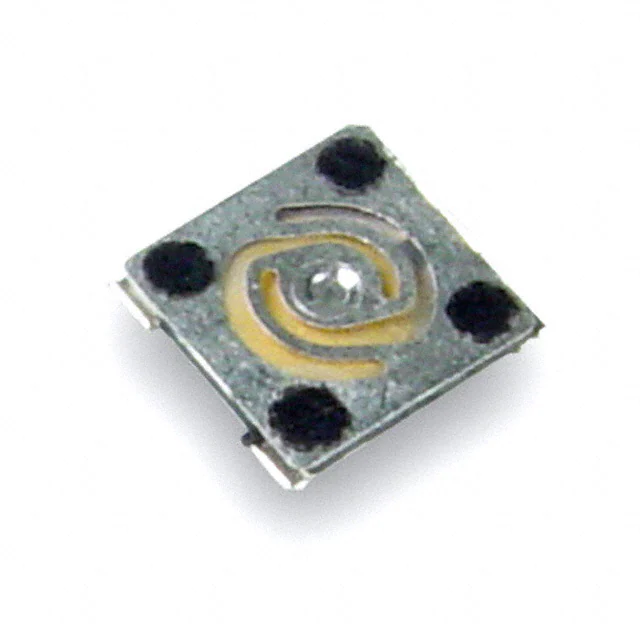

KMX113GSWITCH TACTILE SPST-NO 0.02A 32V |
4,351 |
|
Datasheet | KMX | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 32VDC | Without | Surface Mount | 0.58mm | - | Top Actuated | Gull Wing | 4.10mm x 4.10mm | Non-Illuminated | - | - | 160gf | - | Tactile Feedback | -40°C ~ 125°C |
|
|
KMX123GSWITCH TACTILE SPST-NO 0.02A 32V |
2,117 |
|
Datasheet | KMX | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 0.02A @ 32VDC | Without | Surface Mount | 0.58mm | - | Top Actuated | Gull Wing | 4.10mm x 4.10mm | Non-Illuminated | - | - | 220gf | - | Tactile Feedback | -40°C ~ 125°C |
