Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FSM2JELGELTRSWITCH TACTILE SPST-NO 0.05A 12V |
11,889 |
|
Datasheet | Extended Life | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 2.50mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 100gf | - | Grounding Pin | -35°C ~ 85°C |
|
FSM2JELGEXLTRSWITCH TACTILE SPST-NO 0.05A 12V |
3,071 |
|
Datasheet | Extended Life | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount | 2.50mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 50gf | - | Grounding Pin | -35°C ~ 85°C |
|

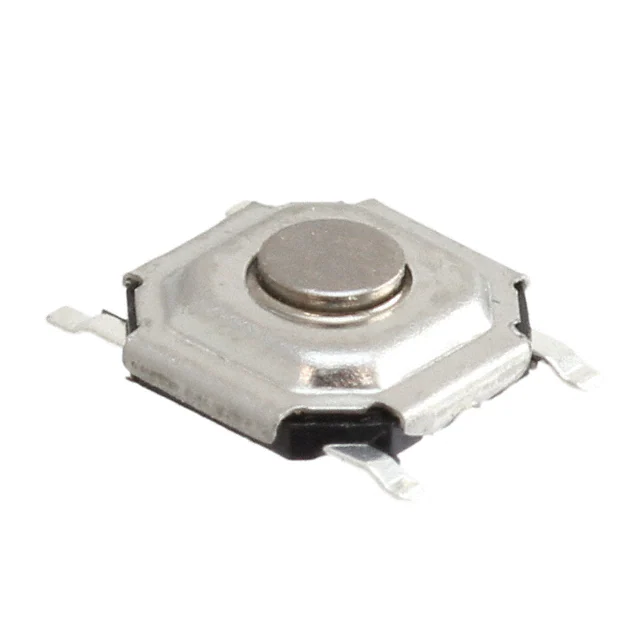

FSMCTTRSWITCH TACTILE SPST-NO 0.02A 15V |
16,851 |
|
Datasheet | FSMCT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 1.50mm | - | Top Actuated | Gull Wing | 5.00mm x 5.00mm | Non-Illuminated | - | - | 160gf | - | - | -35°C ~ 85°C |
|
FSM1LPTRSWITCH TACTILE SPST-NO 0.05A 24V |
9,870 |
|
Datasheet | FSM1LP | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -35°C ~ 85°C |
|
USLPT2819DT2TRSWITCH TACTILE SPST-NO 0.02A 15V |
17,953 |
|
Datasheet | LPT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Standard | Surface Mount | 0.60mm | - | Top Actuated | SMD (SMT) Tab | 2.80mm x 1.90mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|
FSM1JSSMTRSWITCH TACTILE SPST-NO 0.05A 24V |
13,790 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 3.30mm | - | Top Actuated | Gull Wing | 7.60mm x 7.30mm | Non-Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | Sealed - Fully | -35°C ~ 85°C |
|
2425578-1SWITCH TACTILE SPST-NO 0.05A 12V |
3,614 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Edge Mount, Right Angle | - | 2.20mm | Side Actuated | SMD (SMT) Tab | 4.50mm x 2.10mm | Non-Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
1571300-2SWITCH TACTILE SPST-NO 0.05A 24V |
4,225 |
|
Datasheet | - | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount, Right Angle | - | - | Side Actuated | SMD (SMT) Tab | 9.70mm x 5.50mm | Non-Illuminated | - | - | 130gf | IP67 - Dust Tight, Waterproof | Sealed - Fully | -35°C ~ 85°C |
|
|
FSMMSHPSWITCH TACTILE SPST-NO 0.05A 12V |
8,270 |
|
Datasheet | FSMMSH | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Standard | Surface Mount, Right Angle | - | 3.40mm | Side Actuated | SMD (SMT) Tab | 4.50mm x 2.55mm | Non-Illuminated | - | - | 160gf | - | - | -35°C ~ 85°C |
|
|
1571262-1SWITCH TACTILE SPST-NO 0.05A 12V |
2,817 |
|
Datasheet | - | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 12VDC | Rectangular Button | Surface Mount, Right Angle | - | - | Side Actuated | Gull Wing | 5.60mm x 4.00mm | Non-Illuminated | - | - | 220gf | - | - | -20°C ~ 70°C |
