Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

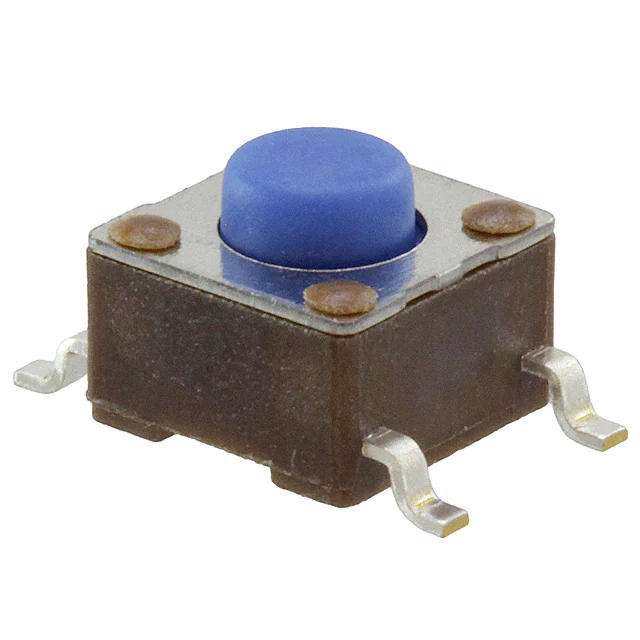

1571563-8SWITCH TACTILE SPST-NO 0.05A 24V |
9,876 |
|
Datasheet | FSMJSML | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -35°C ~ 85°C |
|
1977223-1SWITCH TACTILE SPST-NO 0.05A 24V |
29,229 |
|
Datasheet | FSMJSM | Bag | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 100gf | - | - | -40°C ~ 105°C |
|
FSM1LPATRSWITCH TACTILE SPST-NO 0.05A 24V |
21,758 |
|
Datasheet | FSM1LP | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -35°C ~ 85°C |
|
2425753-1SWITCH TACTILE SPST-NO 0.02A 15V |
7,867 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.02A @ 15VDC | Round Button | Surface Mount | 0.60mm | - | Top Actuated | SMD (SMT) Tab | 3.00mm x 2.00mm | Non-Illuminated | - | - | 160gf | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
FSM4JSMASTRSWITCH TACTILE SPST-NO 0.05A 24V |
42,746 |
|
Datasheet | FSMJSMA | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 5.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 105°C |
|
FSM2JSMASTRSWITCH TACTILE SPST-NO 0.05A 24V |
16,517 |
|
Datasheet | FSMJSMA | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -35°C ~ 85°C |
|

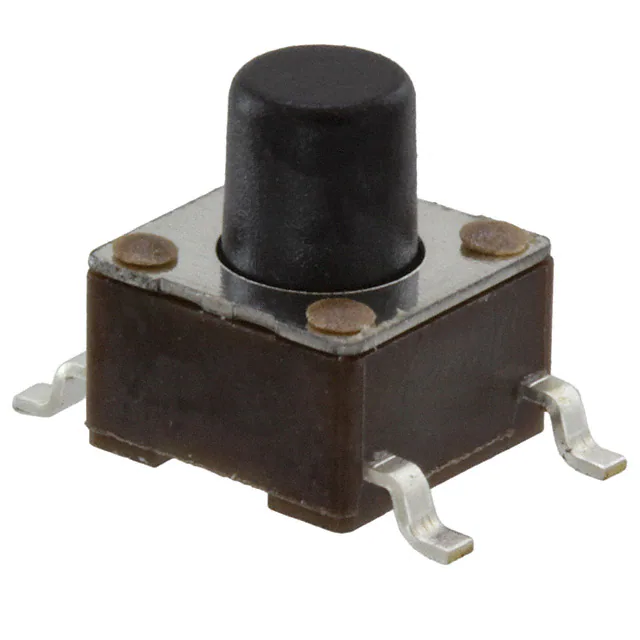

FSM6JSMATRSWITCH TACTILE SPST-NO 0.05A 24V |
16,011 |
|
Datasheet | FSMJSMA | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 7.00mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 160gf | - | - | -40°C ~ 85°C |
|

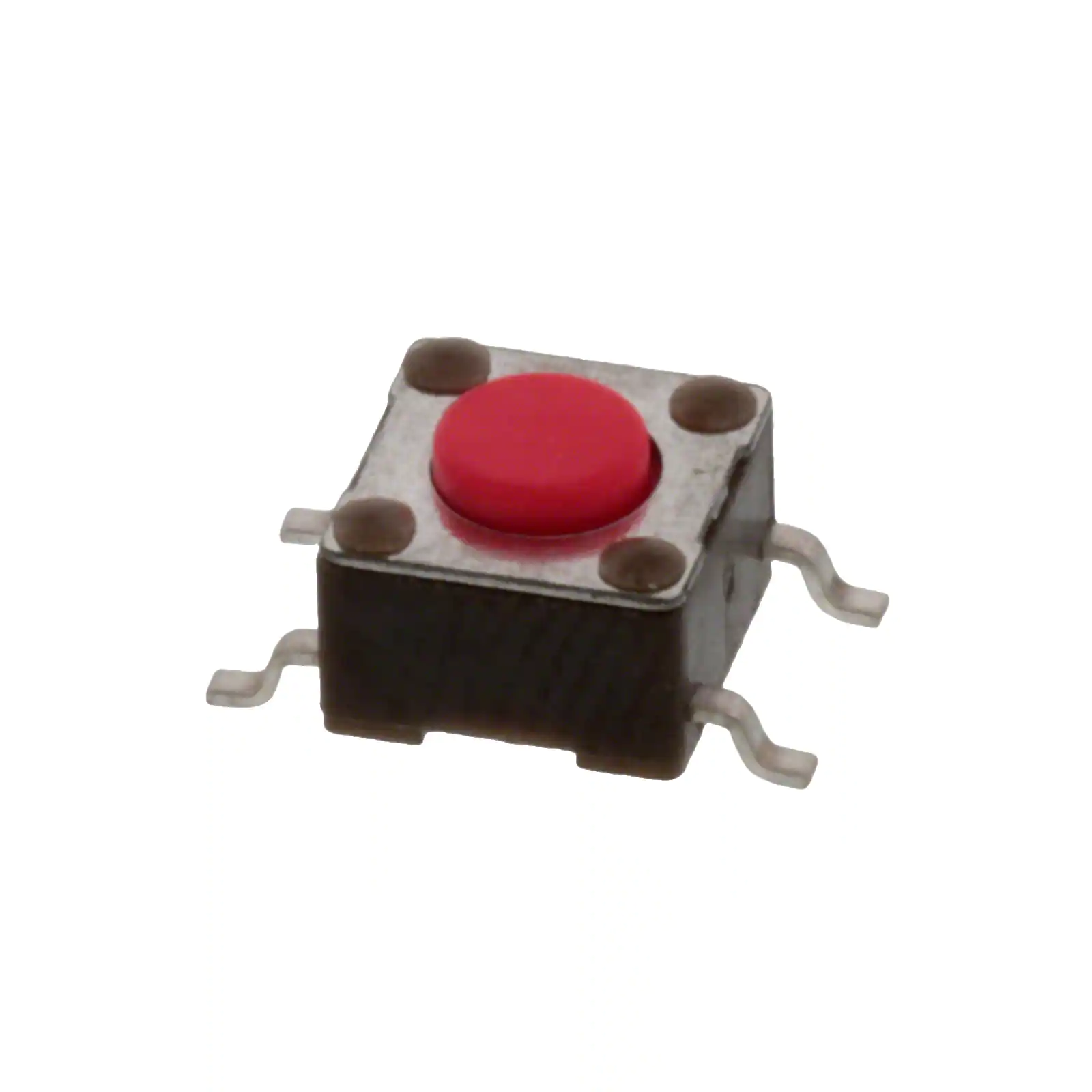

1977223-6SWITCH TACTILE SPST-NO 0.05A 24V |
6,334 |
|
Datasheet | FSMJSM | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 4.30mm | - | Top Actuated | Gull Wing | 6.00mm x 6.00mm | Non-Illuminated | - | - | 260gf | - | - | -40°C ~ 105°C |
|

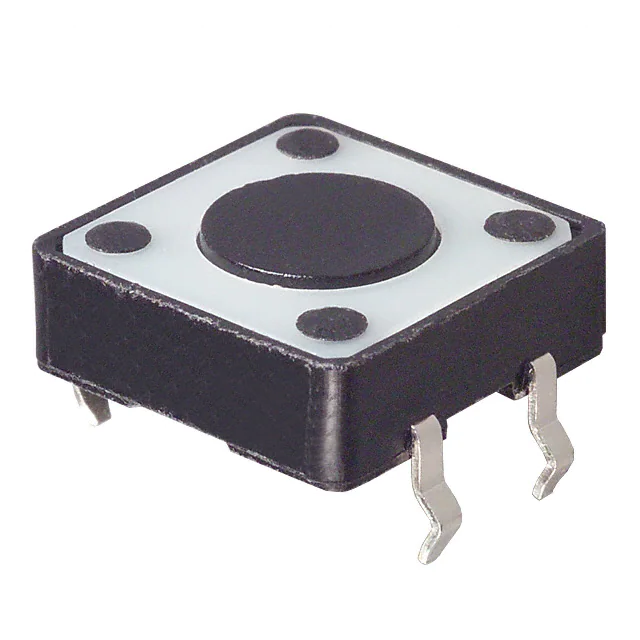

FSM100SWITCH TACTILE SPST-NO 0.05A 24V |
3,709 |
|
Datasheet | FSM100 ~ 104 | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 160gf | - | - | -35°C ~ 85°C |
|

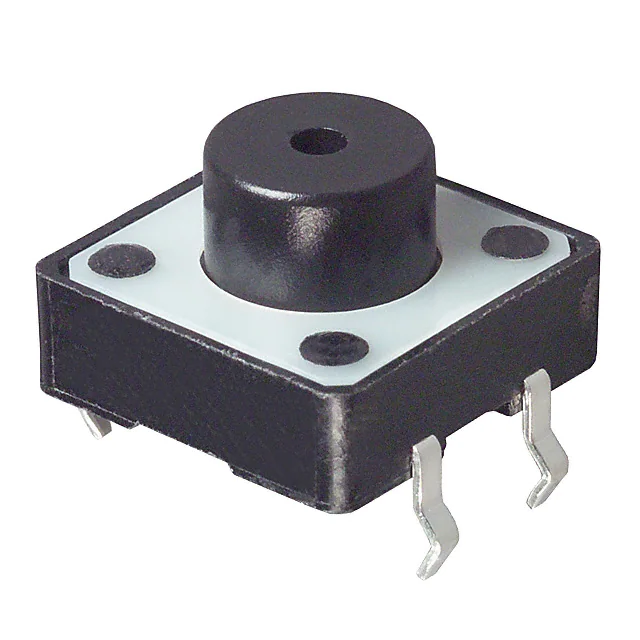

FSM101SWITCH TACTILE SPST-NO 0.05A 24V |
20,035 |
|
Datasheet | FSM100 ~ 104 | Bulk | Active | SPST-NO | On-Mom | 0.05A @ 24VDC | Standard | Through Hole | 7.50mm | - | Top Actuated | PC Pin | 12.00mm x 12.00mm | Non-Illuminated | - | - | 160gf | - | - | -35°C ~ 85°C |
