Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

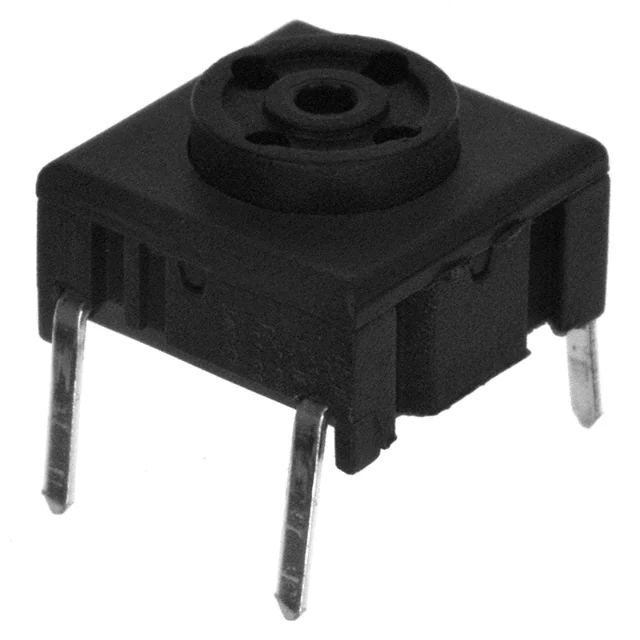

3ETL9SWITCH TACTILE SPST-NO 0.05A 24V |
4,389 |
|
Datasheet | Multimec® 3 | Tube | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | - | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 115°C |
|

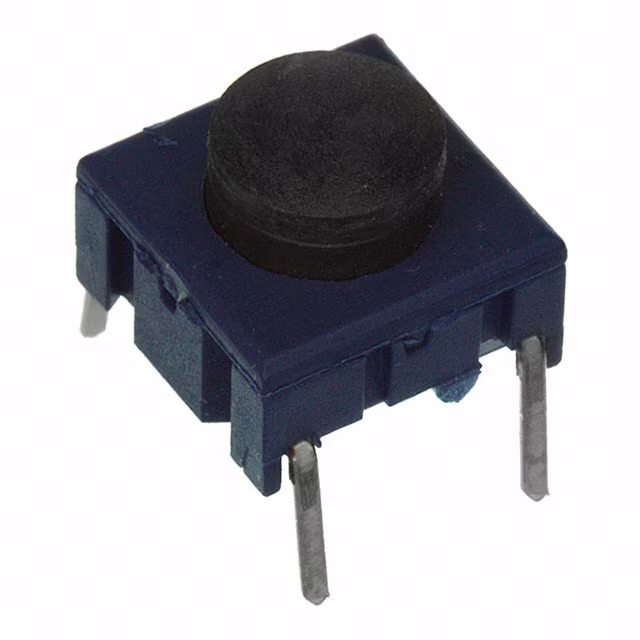

3ETL9-08.0SWITCH TACTILE SPST-NO 0.05A 24V |
1,883 |
|
Datasheet | Multimec® 3 | Tube | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 8.00mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 115°C |
|

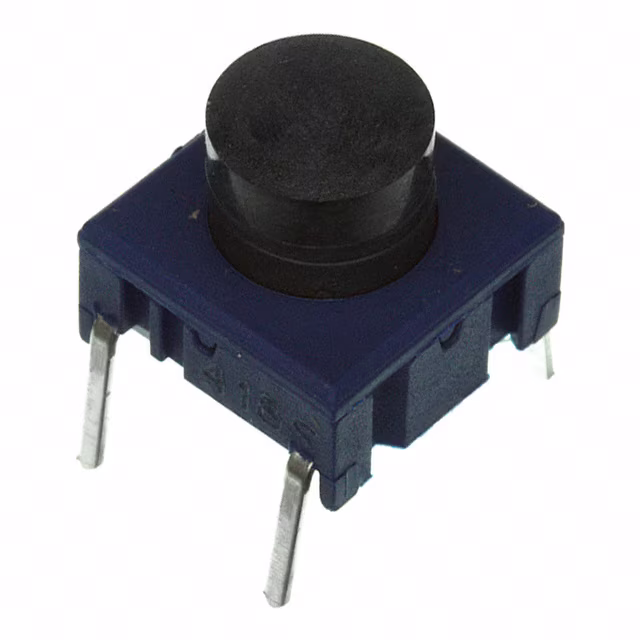

3ETL9-09.5SWITCH TACTILE SPST-NO 0.05A 24V |
3,247 |
|
Datasheet | Multimec® 3 | Tube | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 9.50mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 115°C |
|

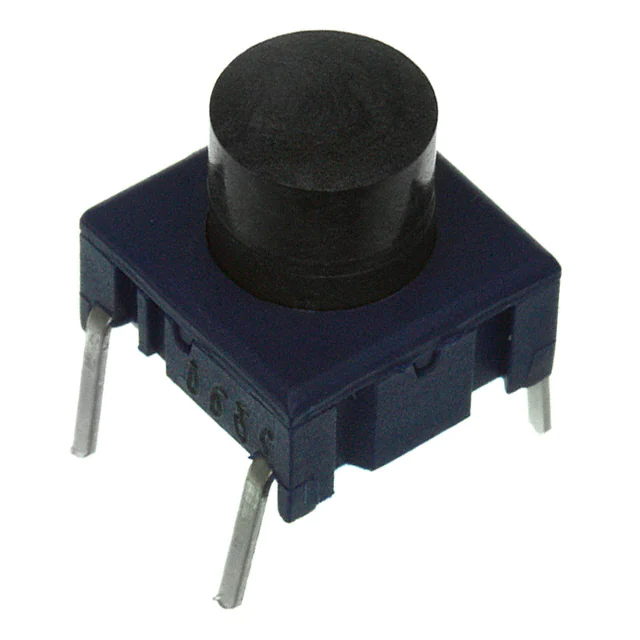

3ETL9-10.4SWITCH TACTILE SPST-NO 0.05A 24V |
1,585 |
|
Datasheet | Multimec® 3 | Tube | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 10.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 115°C |
|

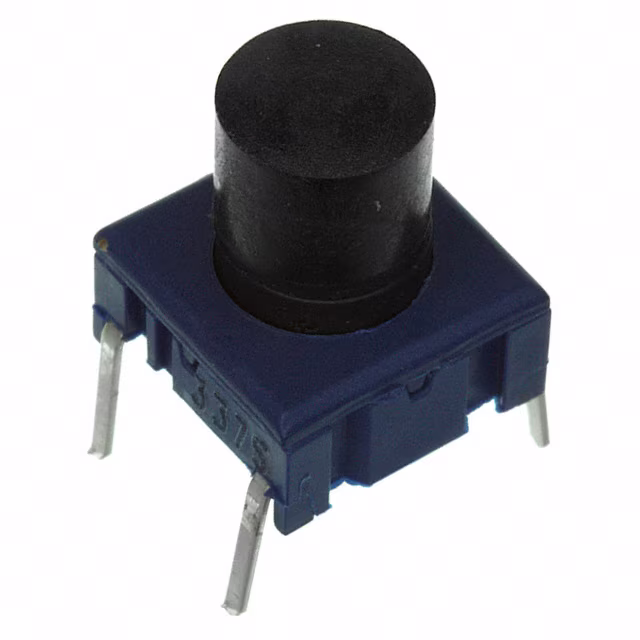

3ETL9-12.0SWITCH TACTILE SPST-NO 0.05A 24V |
1,187 |
|
Datasheet | Multimec® 3 | Tube | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 12.00mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 115°C |
|
3ETL9-15.0SWITCH TACTILE SPST-NO 0.05A 24V |
4,181 |
|
Datasheet | Multimec® 3 | Tube | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 15.00mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 115°C |
|

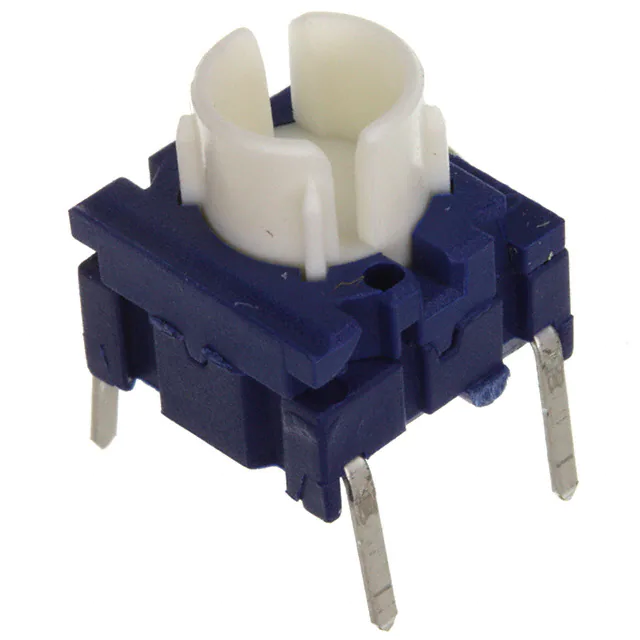

3FTL6SWITCH TACTILE SPST-NO 0.05A 24V |
4,342 |
|
Datasheet | Multimec® 3 | Tube | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 10.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Non-Illuminated | - | - | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 115°C |
|
3FTL600SWITCH TACTILE SPST-NO 0.05A 24V |
4,169 |
|
Datasheet | Multimec® 3 | Tube | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 10.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | LED, Blue | 2.1 VDC | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 115°C |
|
3FTL620SWITCH TACTILE SPST-NO 0.05A 24V |
2,819 |
|
Datasheet | Multimec® 3 | Tube | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 10.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | LED, Green | 2.1 VDC | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 115°C |
|

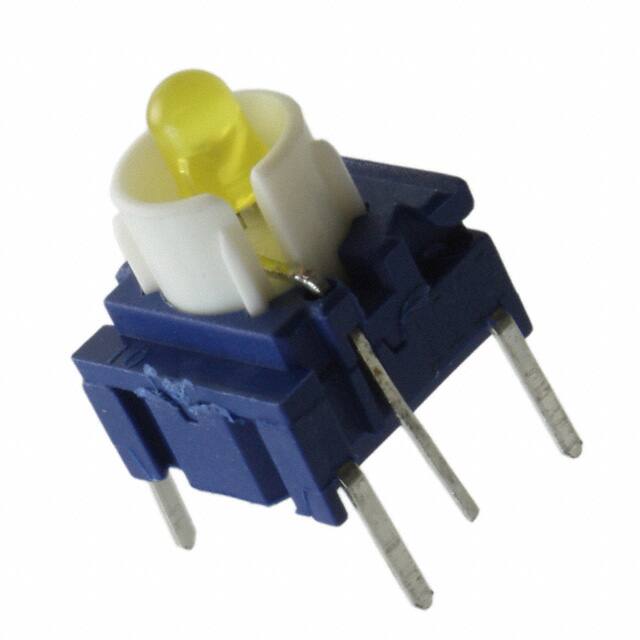

3FTL640SWITCH TACTILE SPST-NO 0.05A 24V |
4,587 |
|
Datasheet | Multimec® 3 | Tube | Obsolete | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | 10.40mm | - | Top Actuated | PC Pin | 10.10mm x 10.10mm | Illuminated | LED, Yellow | 2.1 VDC | 300gf | IP67 - Dust Tight, Waterproof | Sealed - Flux Protection | -40°C ~ 115°C |
