Specialized Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Applications | Composition | Resistance | Tolerance | Power (Watts) | Temperature Coefficient | Operating Temperature | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WSBM8518L1250JTRESISTOR SHUNT 125 UOHM 5% 36W |
106 |
|
Datasheet | Power Metal Strip® | Tray | Obsolete | Shunt, Battery | - | Metal Element | 125 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBM8518L1000JTRESISTOR SHUNT 100 UOHM 5% 36W |
165 |
|
Datasheet | Power Metal Strip® | Tray | Obsolete | Shunt, Battery | - | Metal Element | 100 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
WSBS8518L1000JK14RESISTOR SHUNT 100 UOHM 5% 36W |
100 |
|
Datasheet | Power Metal Strip® | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
WSBS8518L5000JT35RESISTOR SHUNT 500 UOHM 5% 25W |
100 |
|
Datasheet | Power Metal Strip® | Tray | Active | Shunt, Battery | - | Metal Element | 500 µOhms | - | ±5% | 25W | ±10ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS85181L000JK35RESISTOR SHUNT 0.001 OHM 5% 20W |
53 |
|
Datasheet | Power Metal Strip® | Bulk | Active | Shunt, Battery | - | Metal Element | 1 mOhms | - | ±5% | 20W | ±25ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS85181L000JT35RESISTOR SHUNT 0.001 OHM 5% 20W |
53 |
|
Datasheet | Power Metal Strip® | Tray | Active | Shunt, Battery | - | Metal Element | 1 mOhms | - | ±5% | 20W | ±25ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
WSMS2908L3000JKRES SHUNT 0.0003 OHM 5% 3W |
44 |
|
Datasheet | Power Metal Strip® | Bulk | Active | Shunt, Meter | Power Meters | Metal Element | 300 µOhms | - | ±5% | 3W | ±225ppm/°C | -65°C ~ 170°C | Shunt Fixture, 20mm Pitch |
|

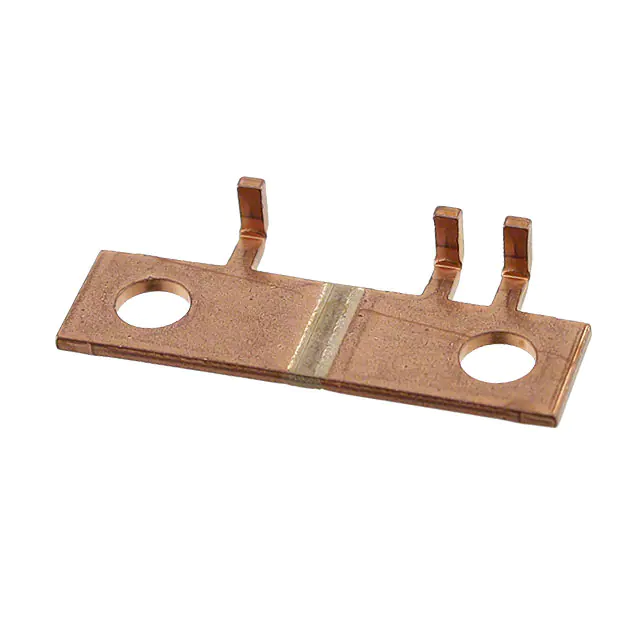

WSMS2908L1000JKRES SHUNT 0.0001 OHM 5% 3W |
29 |
|
Datasheet | Power Metal Strip® | Bulk | Active | Shunt, Meter | Power Meters | Metal Element | 100 µOhms | - | ±5% | 3W | ±1100ppm/°C | -65°C ~ 170°C | Shunt Fixture, 20mm Pitch |
|
WSBS5216L1000JTRESISTOR SHUNT 100 UOHM 5% 12W |
83 |
|
Datasheet | Power Metal Strip® | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±5% | 12W | ±150ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
WSBS8536L1000JK100 UOHMS 5% 50W SHUNT, BATTERY |
62 |
|
Datasheet | Power Metal Strip® | Bulk | Active | Shunt, Battery | - | Metal Element | 100 µOhms | - | ±5% | 50W | - | -65°C ~ 170°C | Surface Mount |
