Specialized Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Applications | Composition | Resistance | Tolerance | Power (Watts) | Temperature Coefficient | Operating Temperature | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WSBS8536L1250JK20RES SHUNT 125U OHM 5% 50W |
101 |
|
Datasheet | Power Metal Strip® | Bulk | Active | Shunt, Battery | - | Metal Element | 125 µOhms | - | ±5% | 50W | - | -65°C ~ 170°C | Through Hole |
|
WSBS8518L2500JT14RESISTOR SHUNT 250 UOHM 5% 36W |
196 |
|
Datasheet | Power Metal Strip® | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 250 µOhms | - | ±5% | 36W | ±110ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
WSBS8518L0500JTRESISTOR SHUNT 50 UOHM 5% 36W |
157 |
|
Datasheet | Power Metal Strip® | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 50 µOhms | - | ±5% | 36W | ±200ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS8518L1250JTP4RESISTOR SHUNT 125 UOHM 5% 36W |
112 |
|
Datasheet | Power Metal Strip® | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 125 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
|
WSBS8518L1000JTP4WSBS8518-P4.000100 5% TRAY PACK |
111 |
|
Datasheet | Power Metal Strip® | Tray | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
WSBS8518L5000JT34RESISTOR SHUNT 500 UOHM 5% 25W |
108 |
|
Datasheet | Power Metal Strip® | Tray | Active | Shunt, Battery | - | Metal Element | 500 µOhms | - | ±5% | 25W | ±10ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
WSBS8536L1250JK250 UOHMS 5% 50W SHUNT, BATTERY |
123 |
|
Datasheet | Power Metal Strip® | Bulk | Active | Shunt, Battery | - | Metal Element | 125 µOhms | - | ±5% | 50W | - | -65°C ~ 170°C | Surface Mount |
|
|
WSBS8518L1000JKP3RESISTOR SHUNT 100 UOHM 5% 36W |
115 |
|
Datasheet | Power Metal Strip® | Bulk | Active | Shunt, Battery | Automotive AEC-Q200 | Metal Element | 100 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
|
WSBS8536L1250JK40250 UOHMS 5% 50W SHUNT, BATTERY |
102 |
|
Datasheet | Power Metal Strip® | Bulk | Active | Shunt, Battery | - | Metal Element | 125 µOhms | - | ±5% | 50W | - | -65°C ~ 170°C | Through Hole |
|

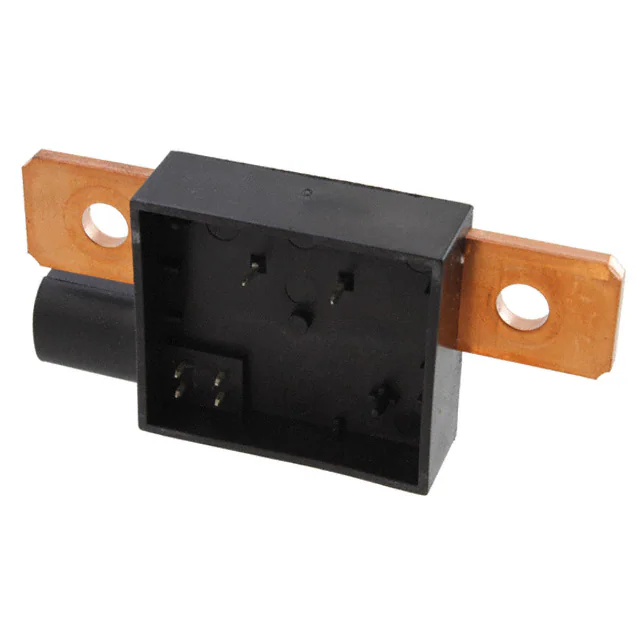

WSBM8518L1000JKRESISTOR SHUNT 100 UOHM 5% 36W |
263 |
|
Datasheet | Power Metal Strip® | Bulk | Obsolete | Shunt, Battery | - | Metal Element | 100 µOhms | - | ±5% | 36W | ±175ppm/°C | -65°C ~ 170°C | Shunt Fixture, 60mm Pitch |
