Speakers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLF0381MP-1SPEAKER 8OHM 250MW TOP PORT 93DB |
2,704 |
|
Datasheet | CLF | Tray | Active | Magnetic | Low Profile | 380 Hz ~ 10 kHz | 380Hz | 8 Ohms | 93.00 | 100mW/500mm | Sound Pressure Level (SPL) | 250 mW | 400 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | PC Pins | 1.496" Dia (38.00mm) |
|

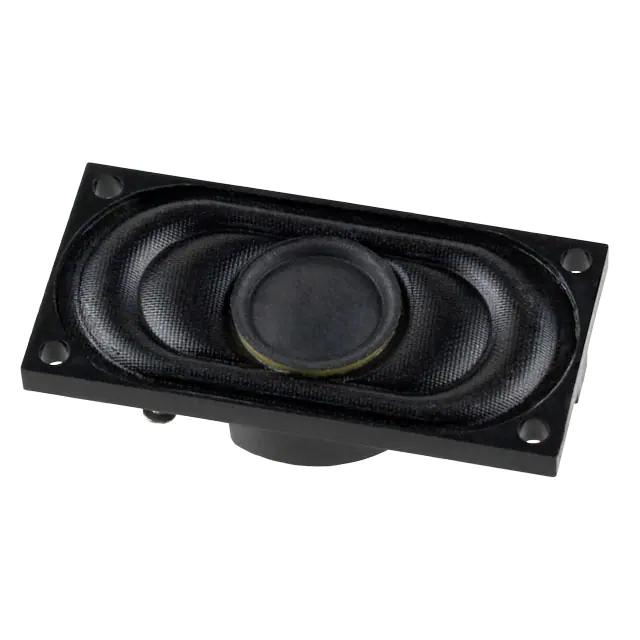

CMS-402008-18SPSPEAKER 8OHM 1.5W TOP PORT 84DB |
321 |
|
Datasheet | CMS | Box | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 550Hz | 8 Ohms | 84.00 | 1W/500mm | Sound Pressure Level (SPL) | 1.5 W | 3 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" L x 0.787" W (40.00mm x 20.00mm) |
|
CMS-181637-158SP-X8SPEAKER, 18 X 16 MM, 3.7 MM DEEP |
518 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 880 Hz ~ 20 kHz | 1.1kHz | 8 Ohms | 100.00 | 100mm | Sound Pressure Level (SPL) | 1.5 W | 1.7 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B-N38 | IPX8 | - | Solder Pads | 0.709" L x 0.630" W (18.00mm x 16.00mm) |
|
CMS-18138A-SPSPEAKER 8OHM 800MW TOP PORT 92DB |
294 |
|
Datasheet | CMS | Tray | Active | Magnetic | Low Profile | 300 Hz ~ 10 kHz | 400Hz | 8 Ohms | 92.00 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|

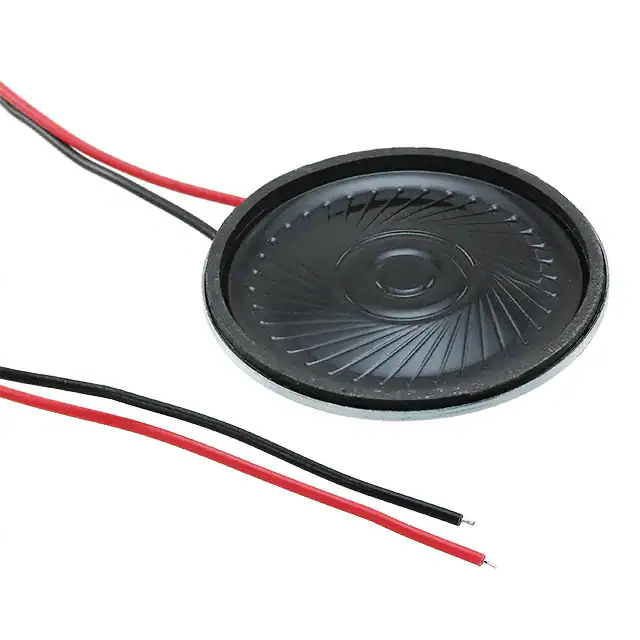

CMS-40558N-L152SPEAKER 8OHM 500MW TOP PORT 90DB |
9,444 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 6 kHz | 500Hz | 8 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 1.575" Dia (40.00mm) |
|
|
CMS-321437-24SP-X8SPEAKER, 32 X 14 MM, 3.7 MM DEEP |
394 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 840 Hz ~ 20 kHz | 1.05kHz | 4 Ohms | 103.00 | 100mm | Sound Pressure Level (SPL) | 2 W | 2.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B-N38 | IPX8 | - | Solder Pads | 0.906" L x 0.551" W (23.00mm x 14.00mm) |
|

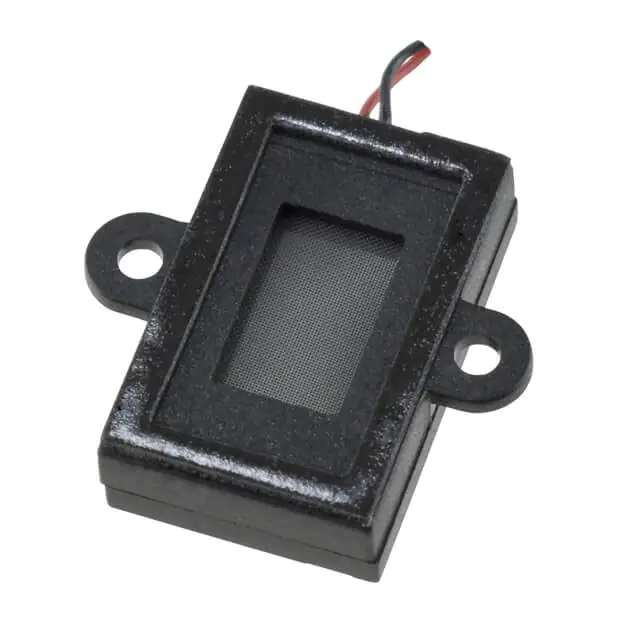

CES-20134-088PMSPEAKER 8OHM 800MW TOP PORT 91DB |
1,103 |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 500 Hz ~ 20 kHz | 1.3kHz | 8 Ohms | 91.00 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Wire Leads | 0.787" L x 0.633" W (20.00mm x 16.09mm) |
|
CVS-3108SPEAKER 8OHM 100MW TOP PORT 85DB |
2,498 |
|
Datasheet | CVS | Tray | Active | Magnetic | General Purpose | 1.05 kHz ~ 4 kHz | 1250Hz | 8 Ohms | 85.00 | 1W/1M | Sound Pressure Level (SPL) | 100 mW | 200 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | Washable | PC Pins | 1.252" Dia (31.80mm) |
|
GF0571SPEAKER 8OHM 250MW TOP PORT 86DB |
13,238 |
|
Datasheet | GF | Box | Active | Magnetic | General Purpose | 380 Hz ~ 8.1 kHz | 380Hz | 8 Ohms | 86.00 | 250mW/500mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Paper | Ferrite | - | - | Solder Eyelet(s) | 2.244" Dia (57.00mm) |
|
|
CMS-251405-24SP-X8SPEAKER, 25 X 14 MM, 5 MM DEEP, |
229 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 760 Hz ~ 20 kHz | 950Hz | 4 Ohms | 103.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 2.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B-N38 | IPX8 | - | Solder Pads | 0.984" L x 0.551" W (25.00mm x 14.00mm) |
