Speakers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GC0401KSPEAKER 8OHM 1W TOP PORT 82DB |
10,836 |
|
Datasheet | GC | Tray | Active | Magnetic | General Purpose | 390 Hz ~ 20 kHz | 390Hz | 8 Ohms | 82.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Oval, Rectangular Frame | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" L x 1.122" W (40.00mm x 28.50mm) |
|
GC0401SSPEAKER 8OHM 1W TOP PORT 89DB |
2,324 |
|
Datasheet | GC | Tray | Active | Magnetic | General Purpose | 440 Hz ~ 12 kHz | 550Hz | 8 Ohms | 89.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" L x 0.787" W (40.00mm x 20.00mm) |
|
CDS-40288SPEAKER 8OHM 6W TOP PORT 84DB |
722 |
|
Datasheet | CDS | Tray | Active | Magnetic | General Purpose | 520 Hz ~ 10 kHz | 650Hz | 8 Ohms | 84.00 | 1W/500mm | Sound Pressure Level (SPL) | 6 W | 8 W | Top | Rectangular | Paper/Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" L x 1.122" W (40.00mm x 28.50mm) |
|
GF1003MSPEAKER 8OHM 3W TOP PORT 93DB |
976 |
|
Datasheet | GF | Box | Active | Magnetic | General Purpose | 250 Hz ~ 13 kHz | 250Hz | 8 Ohms | 93.00 | 1W/500mm | Sound Pressure Level (SPL) | 3 W | 5 W | Top | Round, Square Frame | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Eyelet(s) | 4.032" L x 4.032" W (102.40mm x 102.40mm) |
|
CDS-40288-L100SPEAKER 8OHM 6W TOP PORT 84DB |
775 |
|
Datasheet | CDS | Tray | Active | Magnetic | General Purpose | 520 Hz ~ 10 kHz | 650Hz | 8 Ohms | 84.00 | 1W/500mm | Sound Pressure Level (SPL) | 6 W | 8 W | Top | Rectangular | Paper/Cloth | Nd-Fe-B | - | - | Wire Leads | 1.575" L x 1.122" W (40.00mm x 28.50mm) |
|
CMS0281KLXSPEAKER 8OHM 2W TOP PORT 82DB |
1,915 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 248 Hz ~ 20 kHz | 310Hz | 8 Ohms | 82.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Round, Square Frame | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.102" L x 1.102" W (28.00mm x 28.00mm) |
|
GF1004SPEAKER 8OHM 6W TOP PORT 93DB |
2,581 |
|
Datasheet | GF | Box | Active | Magnetic | General Purpose | 145 Hz ~ 17 kHz | 145Hz | 8 Ohms | 93.00 | 1W/500mm | Sound Pressure Level (SPL) | 6 W | 10 W | Top | Round, Square Frame | Paper | Ferrite | - | - | Solder Eyelet(s) | 4.032" L x 4.032" W (102.40mm x 102.40mm) |
|
GF1004MSPEAKER 8OHM 6W TOP PORT 93DB |
1,188 |
|
Datasheet | GF | Box | Active | Magnetic | General Purpose | 230 Hz ~ 14 kHz | 230Hz | 8 Ohms | 93.00 | 1W/500mm | Sound Pressure Level (SPL) | 6 W | 10 W | Top | Round, Square Frame | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Eyelet(s) | 4.016" L x 4.016" W (102.00mm x 102.00mm) |
|

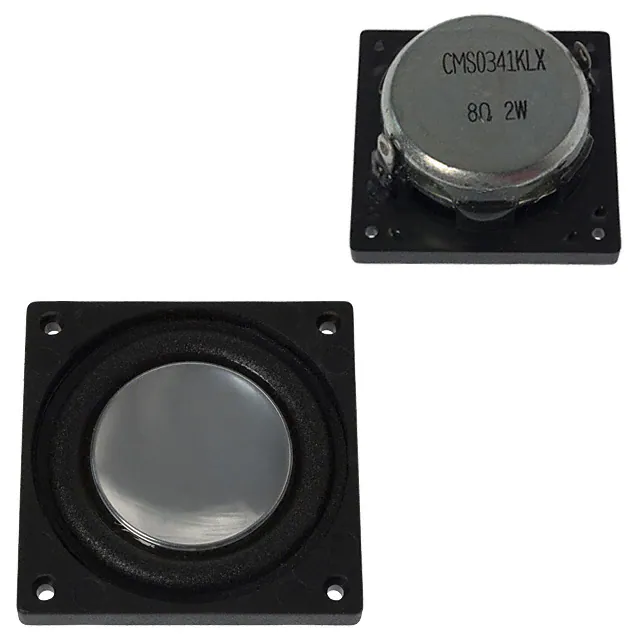

CMS0341KLXSPEAKER 8OHM 2W TOP PORT 84DB |
1,135 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 208 Hz ~ 15 kHz | 260Hz | 8 Ohms | 84.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Round, Square Frame | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.339" L x 1.339" W (34.00mm x 34.00mm) |
|

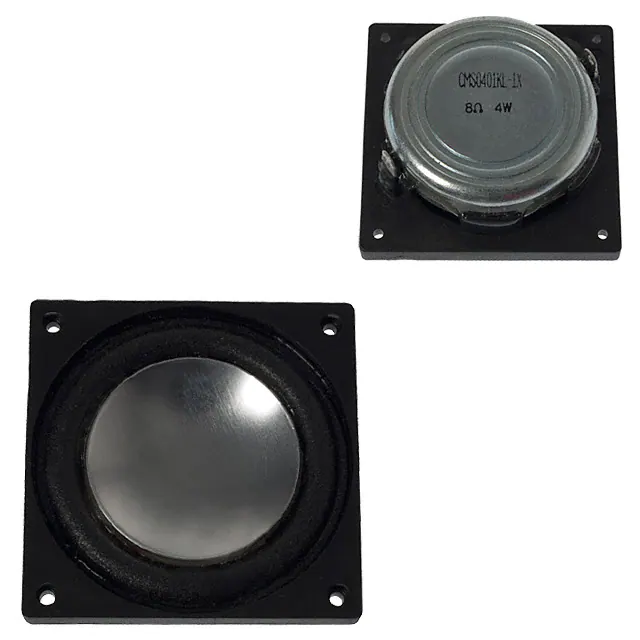

CMS0401KL-1XSPEAKER 8OHM 4W TOP PORT 87DB |
2,659 |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 256 Hz ~ 20 kHz | 320Hz | 8 Ohms | 87.00 | 1W/500mm | Sound Pressure Level (SPL) | 4 W | 6 W | Top | Round, Square Frame | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.579" L x 1.579" W (40.10mm x 40.10mm) |
