Solid State Relays (SSR)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Output Type | Voltage - Input | Voltage - Load | Load Current | On-State Resistance (Max) | Termination Style | Operating Temperature | Supplier Device Package | Approval Agency | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CX240D5-BSSR RELAY SPST-NC 5A 12-280V |
547 |
|
Datasheet | CX | Bulk | Active | Through Hole | SPST-NC (1 Form B) | AC, Zero Cross | 4 ~ 28VDC | 12 V ~ 280 V | 5 A | - | PC Pin | -10°C ~ 80°C | 4-SIP | CE, CSA, cURus, TUV | - | - |
|

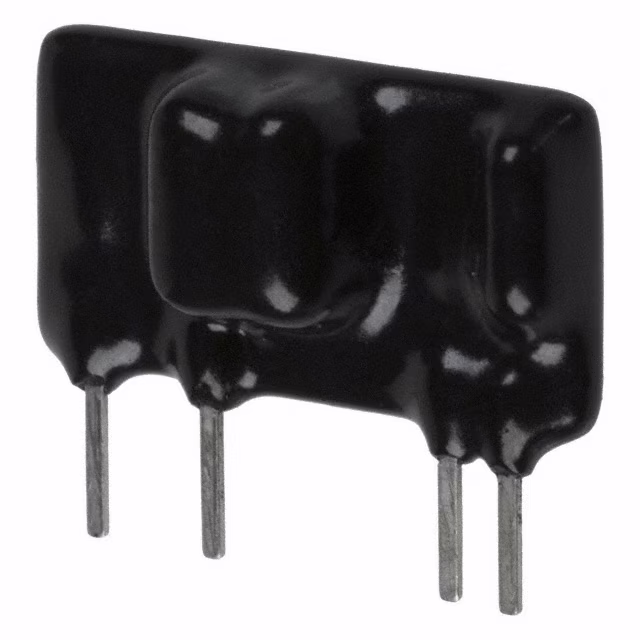

DO061ASSR RELAY SPST-NO 1A 3-60V |
191 |
|
Datasheet | DO | Bulk | Active | Through Hole | SPST-NO (1 Form A) | DC | 3 ~ 9VDC | 3 V ~ 60 V | 1 A | - | PC Pin | -30°C ~ 80°C | 4-Mini SIP | - | - | - |
|
SDI2415SSR RELAY SPST-NO 1.5A 12-280V |
285 |
|
Datasheet | SDI | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | - | 12 V ~ 280 V | 1.5 A | - | PC Pin | -30°C ~ 80°C | 16-DIP | CE | - | - |
|
MP240D4SSR RELAY SPST-NO 4A 24-280V |
173 |
|
Datasheet | MP | Bulk | Active | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 3 ~ 32VDC | 24 V ~ 280 V | 4 A | - | PC Pin | -40°C ~ 80°C | 4-SIP | CE, cURus | - | - |
|
PF240D25RSSR RELAY SPST-NO 25A 12-280V |
1,873 |
|
Datasheet | PF, PowerFin™ | Bulk | Active | Through Hole | SPST-NO (1 Form A) | AC | 3 ~ 15VDC | 12 V ~ 280 V | 25 A | - | PC Pin | -30°C ~ 80°C | 4-SIP | CE, cURus, TUV | - | - |
|
CMX100D6SSR RELAY SPST-NO 6A 0-100V |
1,676 |
|
Datasheet | CMX | Bulk | Active | Through Hole | SPST-NO (1 Form A) | DC | 3 ~ 10VDC | 0 V ~ 100 V | 6 A | 40 mOhms | PC Pin | -10°C ~ 80°C | 4-SIP | CE, cURus | - | - |
|
LR600240D25RSSR RELAY SPST-NO 25A 24-280V |
2,195 |
|
Datasheet | LR | Bulk | Active | Through Hole | SPST-NO (1 Form A) | AC | 4 ~ 32VDC | 24 V ~ 280 V | 25 A | - | PC Pin | -30°C ~ 80°C | - | CE, cURus | - | - |
|
DC60S5-BSSR RELAY SPST-NC 5A 3-60V |
3,155 |
|
Datasheet | DC60 | Bulk | Active | Chassis Mount | SPST-NC (1 Form B) | DC | 3.5 ~ 32VDC | 3 V ~ 60 V | 5 A | - | Screw Terminal | -30°C ~ 80°C | - | CE, cURus | - | - |
|
|
LR600240D40SSR RELAY SPST-NO 40A 24-280V |
490 |
|
Datasheet | LR | Tube | Active | Through Hole | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 24 V ~ 280 V | 40 A | - | PC Pin | -30°C ~ 80°C | - | CE, cURus | - | - |
|
DRA-CN240A24SSR RELAY SPST-NO 2A 24-250V |
3,565 |
|
Datasheet | DRACN | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC, Zero Cross | 15 ~ 30VDC | 24 V ~ 250 V | 2 A | - | Screw Terminal | -25°C ~ 60°C | - | CE, cURus, UR | - | - |
