Solid State Relays (SSR)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Output Type | Voltage - Input | Voltage - Load | Load Current | On-State Resistance (Max) | Termination Style | Operating Temperature | Supplier Device Package | Approval Agency | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
84137010SSR RELAY SPST-NO 25A 24-280V |
242 |
|
Datasheet | GN | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 3 ~ 32VDC | 24 V ~ 280 V | 25 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|
DR2260D20URSSR RELAY SPST-NO 20A 48-600V |
4,032 |
|
Datasheet | DR22 | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | AC | 4 ~ 32VDC | 48 V ~ 600 V | 20 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, cURus, EMC, IEC | - | - |
|
CWD2450SSR RELAY SPST-NO 50A 24-280V |
4,131 |
|
Datasheet | CW | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 3 ~ 32VDC | 24 V ~ 280 V | 50 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|
|
CWD2450-10SSR RELAY SPST-NO 50A 24-280V |
4,174 |
|
Datasheet | CW | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 3 ~ 32VDC | 24 V ~ 280 V | 50 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|
D2450-BSSR RELAY SPST-NO 50A 24-280V |
155 |
|
Datasheet | 1 | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 3 ~ 32VDC | 24 V ~ 280 V | 50 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, TUV, UL | - | - |
|
DR06D06XSSR RELAY SPST-NO 6A 1-60V |
3,259 |
|
Datasheet | DR | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 4 ~ 32VDC | 1 V ~ 60 V | 6 A | 100 mOhms | Screw Terminal | -20°C ~ 40°C | - | CE, cULus | - | - |
|
|
D2440-BSSR RELAY SPST-NC 40A 24-280V |
4,420 |
|
Datasheet | 1 | Bulk | Active | Chassis Mount | SPST-NC (1 Form B) | AC, Zero Cross | 3 ~ 32VDC | 24 V ~ 280 V | 40 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, TUV, UL | - | - |
|

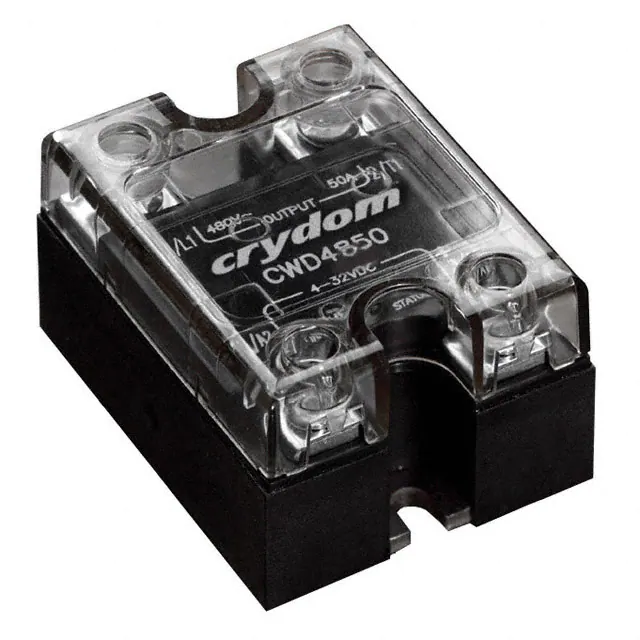

CWD4825SSR RELAY SPST-NO 25A 48-660V |
3,803 |
|
Datasheet | CW | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC, Zero Cross | 4 ~ 32VDC | 48 V ~ 660 V | 25 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
|
DRA1-CMXE60D5SSR RELAY SPST-NO 5A 1-60V |
2,206 |
|
Datasheet | DRA | Bulk | Active | DIN Rail | SPST-NO (1 Form A) | DC | 20 ~ 28VDC | 1 V ~ 60 V | 5 A | 100 mOhms | Screw Terminal | -20°C ~ 80°C | - | CE, cURus | - | - |
|
HD4850-10SSR RELAY SPST-NO 50A 48-530V |
2,592 |
|
Datasheet | HD48 | Bulk | Active | Chassis Mount | SPST-NO (1 Form A) | AC | 3 ~ 32VDC | 48 V ~ 530 V | 50 A | - | Screw Terminal | -40°C ~ 80°C | - | CE, CSA, cURus, TUV | - | - |
