Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SLC12007SWITCH SLIDE SPDT 300MA 125V |
3,760 |
|
Datasheet | SLC | Tube | Obsolete | SPDT | Not Specified | On-On | 300mA (AC/DC) | 125 V | 30 V | Standard | 7.00mm | - | Silver | Panel Mount | Solder Lug | - |
|
|
MHS123KSWITCH SLIDE SPDT 300MA 30V |
3,092 |
|
Datasheet | MHS | Tray | Obsolete | SPDT | Not Specified | On-Off-On | 300mA (DC) | - | 30 V | Baton | 10.00mm | Brass | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
MHS233KSWITCH SLIDE DP3T 300MA 30V |
3,181 |
|
Datasheet | MHS | Bulk | Obsolete | DP3T | Not Specified | On-On-On | 300mA (DC) | - | 30 V | Baton | 10.00mm | Brass | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
MHS133SWITCH SLIDE SP3T 300MA 30V |
1,629 |
|
Datasheet | MHS | Bulk | Obsolete | SP3T | Not Specified | On-On-On | 300mA (DC) | - | 30 V | Standard | 4.50mm | Brass | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
MMS42RSWITCH SLIDE 4PDT 300MA 30V |
1,601 |
|
- |
MMS | Bulk | Obsolete | 4PDT | Not Specified | On-On | 300mA (DC) | - | 30 V | Standard | 4.00mm | - | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
MMS42SWITCH SLIDE 4PDT 300MA 30V |
2,122 |
|
Datasheet | MMS | Bulk | Obsolete | 4PDT | Not Specified | On-On | 300mA (DC) | - | 30 V | Standard | 2.00mm | - | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

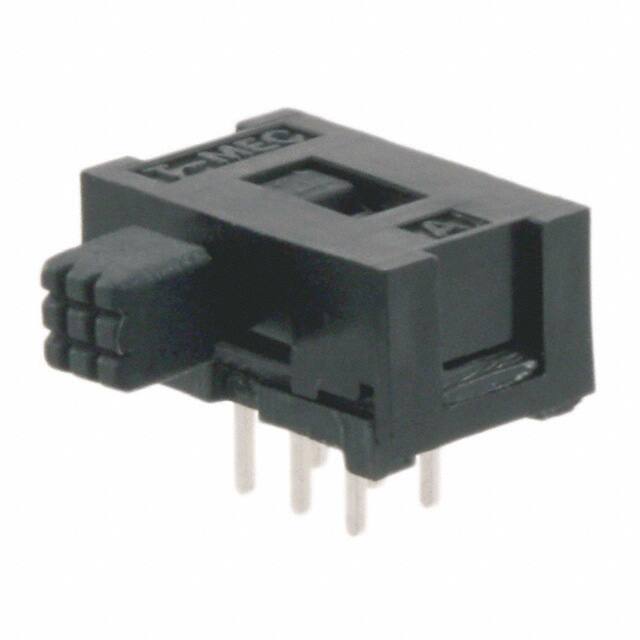

MMS22RSWITCH SLIDE DPDT 300MA 30V |
4,804 |
|
Datasheet | MMS | Bulk | Obsolete | DPDT | Not Specified | On-On | 300mA (DC) | - | 30 V | Standard | 4.00mm | - | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
MSS22SWITCH SLIDE DPDT 300MA 125V |
2,336 |
|
- |
MSS | Bulk | Obsolete | DPDT | Not Specified | On-On | 300mA (AC/DC) | 125 V | 30 V | Standard | 2.30mm | - | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
MSS22GSWITCH SLIDE DPDT 0.4VA 20V |
2,456 |
|
- |
MSS | Bulk | Obsolete | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.30mm | - | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
MSS225RGSWITCH SLIDE DPDT 0.4VA 20V |
4,270 |
|
- |
MSS | Bulk | Obsolete | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 9.50mm | - | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
