Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NK236HSWITCH SLIDE SPDT 500MA 12V |
21,623 |
|
Datasheet | NK | Bulk | Active | SPDT | Not Specified | On-On | 500mA (DC) | - | 12 V | Standard | 1.40mm | Nickel | Gold | Through Hole | PC Pin | Sealed - Flux Protection |
|
NK236WHSWITCH SLIDE SPDT 500MA 12V |
9,447 |
|
Datasheet | NK | Bulk | Active | SPDT | Not Specified | On-On | 500mA (DC) | - | 12 V | Standard | 1.40mm | Nickel | Gold | Through Hole, Right Angle | PC Pin | Sealed - Flux Protection |
|
25139NAHSWITCH SLIDE SPDT 4A 125V |
4,489 |
|
Datasheet | 25000N | Bulk | Active | SPDT | Not Specified | On-Off-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 2.80mm | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

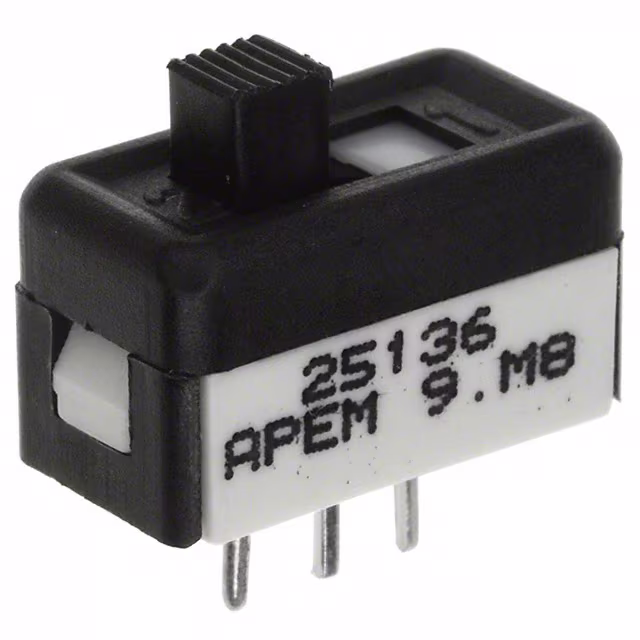

25136NAHSWITCH SLIDE SPDT 4A 125V |
223 |
|
Datasheet | 25000N | Bulk | Active | SPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 2.80mm | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
MHSS1104SWITCH SLIDE SPDT 300MA 6V |
6,530 |
|
Datasheet | MHSS | Bulk | Active | SPDT | Not Specified | On-On | 300mA (DC) | - | 6 V | Standard | 2.00mm | - | Silver | Through Hole | PC Pin | Black Actuator |
|
MHSS1105SWITCH SLIDE SPDT 300MA 6V |
5,778 |
|
Datasheet | MHSS | Bulk | Active | SPDT | Not Specified | On-On | 300mA (DC) | - | 6 V | Standard | 2.00mm | - | Silver | Through Hole, Right Angle | PC Pin | Black Actuator |
|
MS22SWITCH SLIDE DPDT 300MA 6V |
6,548 |
|
Datasheet | MS | Bulk | Active | DPDT | Not Specified | On-On | 300mA (DC) | - | 6 V | Standard | 2.00mm | - | Silver | Through Hole | PC Pin | - |
|
PM13B012SWITCH SLIDE SPDT 6A 125V |
3,227 |
|
Datasheet | PM | Tube | Active | SPDT | Not Specified | On-On | 6A (AC) | 125 V | - | Standard | 9.00mm | Phosphor Bronze | Silver | Panel Mount | Solder Lug | - |
|
ASLB12814SLIDE SWITCH |
1,600 |
|
Datasheet | ASLB | Bag | Active | SPDT | Not Specified | On-On | 300mA (AC/DC) | 125 V | 30 V | Standard | 4.00mm | Silver (Ag) | Silver | Through Hole | PC Pin | - |
|
|
ASLB1470SLIDE SWITCH |
380 |
|
Datasheet | ASLB | Bag | Active | SP4T | Not Specified | On-On-On-On | 300mA (AC/DC) | 125 V | 30 V | Standard | 5.00mm | Silver (Ag) | Silver | Through Hole | PC Pin | - |
