Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ASLB1570SLIDE SWITCH |
1,909 |
|
Datasheet | ASLB | Bag | Active | SP5T | Not Specified | On-On-On-On-On | 300mA (AC/DC) | 125 V | 30 V | Standard | 5.00mm | Silver (Ag) | Silver | Through Hole | PC Pin | - |
|
NK236SWITCH SLIDE SPDT 500MA 12V |
5,004 |
|
Datasheet | NK | Bulk | Active | SPDT | Not Specified | On-On | 500mA (DC) | - | 12 V | Flush | - | Nickel | Gold | Through Hole | PC Pin | Sealed - Flux Protection |
|
25139NLDHSWITCH SLIDE SPDT 100MA 30V |
435 |
|
Datasheet | 25000N | Bulk | Active | SPDT | Not Specified | On-Off-On | 100mA (DC) | - | 30 V | Standard | 2.80mm | Brass | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
25136NABSWITCH SLIDE SPDT 4A 125V |
1,112 |
|
Datasheet | 25000N | Bulk | Active | SPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Flush | - | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

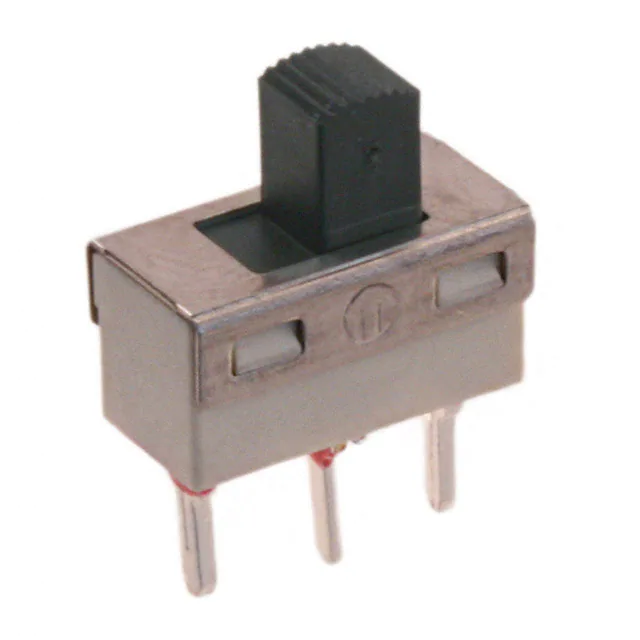

GH36P010001SWITCH SLIDE SPDT 3A 30V |
712 |
|
Datasheet | G | Bulk | Active | SPDT | Not Specified | On-On | 3A (DC) | - | 30 V | Standard | 5.10mm | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
GH39P010001SWITCH SLIDE SPDT 3A 30V |
319 |
|
Datasheet | G | Bulk | Active | SPDT | Not Specified | On-Off-On | 3A (DC) | - | 30 V | Standard | 5.10mm | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
25146NABSWITCH SLIDE DPDT 4A 125V |
1,279 |
|
Datasheet | 25000N | Bulk | Active | DPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Flush | - | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
25336NASWITCH SLIDE SPDT 4A 125V |
1,196 |
|
Datasheet | 25000N | Bulk | Active | SPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 2.30mm | Silver (Ag) | - | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
GH36S010001SWITCH SLIDE SPDT 3A 30V |
161 |
|
Datasheet | G | Bulk | Active | SPDT | Not Specified | On-On | 3A (DC) | - | 30 V | Standard | 5.10mm | Silver (Ag) | - | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
GH36P000001SWITCH SLIDE SPDT 0.4VA 20V |
353 |
|
Datasheet | G | Bulk | Active | SPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.10mm | Brass | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
