Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GH39Y000001SLIDE SWITCH G TELECOM GRADE |
3,993 |
|
Datasheet | G | Bulk | Active | SPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.10mm | Brass | Gold | Through Hole | PC Pin | - |
|
|
25346NASWITCH SLIDE DPDT 4A 125V |
1,197 |
|
Datasheet | 25000N | Tube | Active | DPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 2.30mm | Silver (Ag) | - | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
25546NA6X693ULSLIDE SWITCH 25000N PCB MOUNT |
1,007 |
|
Datasheet | 25000N | Bulk | Active | DPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 6.00mm | Silver | - | Through Hole, Right Angle | PC Pin | - |
|
|
25446NABSWITCH SLIDE DPDT 4A 125V |
4,706 |
|
Datasheet | 25000N | Tube | Active | DPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Flush | - | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
25546NASWITCH SLIDE DPDT 4A 125V |
3,903 |
|
Datasheet | 25000N | Tube | Active | DPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 2.30mm | Silver (Ag) | - | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
25446NAHSWITCH SLIDE DPDT 4A 125V |
4,397 |
|
Datasheet | 25000N | Tube | Active | DPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 2.80mm | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
25346NLD6SWITCH SLIDE DPDT 100MA 30V |
1,277 |
|
Datasheet | 25000N | Tube | Active | DPDT | Not Specified | On-On | 100mA (DC) | - | 30 V | Standard | 6.00mm | Brass | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
25146NLDBSWITCH SLIDE DPDT 100MA 30V |
4,197 |
|
Datasheet | 25000N | Tube | Active | DPDT | Not Specified | On-On | 100mA (DC) | - | 30 V | Flush | - | Brass | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

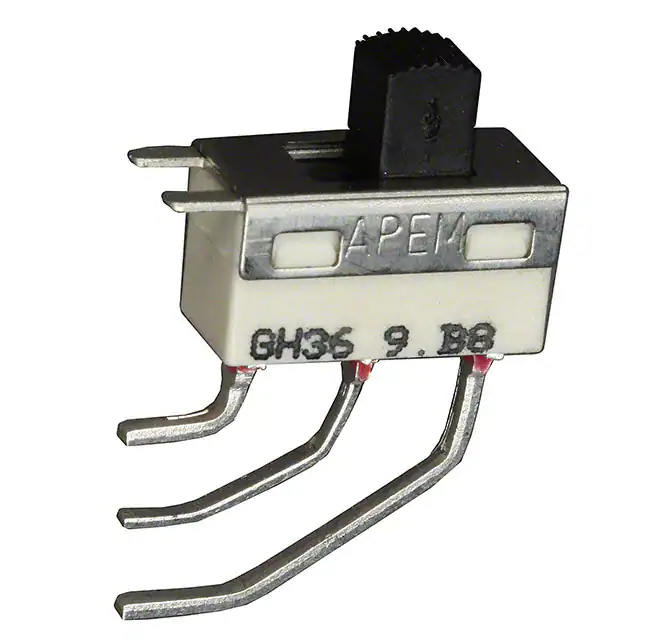

GH36WW10001SWITCH SLIDE SPDT 3A 30V |
4,151 |
|
Datasheet | G | Bulk | Active | SPDT | Not Specified | On-On | 3A (DC) | - | 30 V | Standard | 4.70mm | Silver (Ag) | - | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
|
25546NLDSWITCH SLIDE DPDT 100MA 30V |
2,379 |
|
Datasheet | 25000N | Tube | Active | DPDT | Not Specified | On-On | 100mA (DC) | - | 30 V | Standard | 2.30mm | Brass | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
