Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
25349NA6SWITCH SLIDE DPDT 4A 125V |
2,712 |
|
Datasheet | 25000N | Tube | Active | DPDT | Not Specified | On-Off-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 6.00mm | Silver (Ag) | - | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
25149NABSWITCH SLIDE DPDT 4A 125V |
3,831 |
|
Datasheet | 25000N | Tube | Active | DPDT | Not Specified | On-Off-On | 4A (AC), 1A (DC) | 125 V | 30 V | Flush | - | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
25449NAHSWITCH SLIDE DPDT 4A 125V |
2,016 |
|
Datasheet | 25000N | Tube | Active | DPDT | Not Specified | On-Off-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 2.80mm | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
GH46Y000001SLIDE SWITCH G TELECOM GRADE |
1,589 |
|
Datasheet | G | Bulk | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.10mm | Brass | Gold | Through Hole | PC Pin | - |
|
|
MSN24BSW40MINIATURE SLIDE |
4,895 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GH46P020001SLIDE SWITCH G TELECOM GRADE |
2,712 |
|
Datasheet | G | Bulk | Active | DPDT | Not Specified | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.08mm | Brass | Gold | Through Hole | PC Pin | - |
|

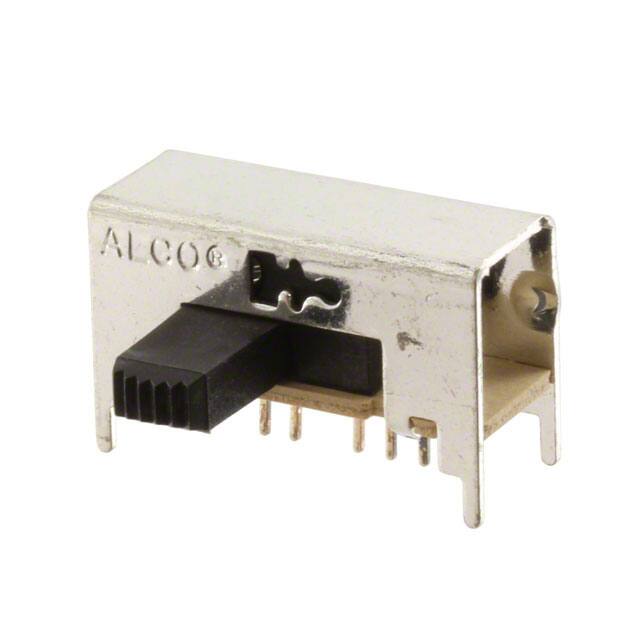

MSSA1450RSWITCH SLIDE SP4T 300MA 125V |
1,874 |
|
Datasheet | MSSA | Bulk | Obsolete | SP4T | Shorting (MBB) | On-On-On-On | 300mA (AC) | 125 V | - | Standard | 9.02mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
GH46Y410001SLIDE SWITCH G TELECOM GRADE |
4,236 |
|
Datasheet | G | Bulk | Active | DPDT | Not Specified | On-On | 3A (DC) | - | 30 V | Standard | 5.10mm | Silver (Ag) | - | Through Hole | PC Pin | - |
|
|
25549NASWITCH SLIDE DPDT 4A 125V |
2,557 |
|
Datasheet | 25000N | Tube | Active | DPDT | Not Specified | On-Off-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 2.30mm | Silver (Ag) | - | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
25349NASWITCH SLIDE DPDT 4A 125V |
3,079 |
|
Datasheet | 25000N | Bulk | Active | DPDT | Not Specified | On-Off-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 2.30mm | Silver (Ag) | - | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
25449NABSWITCH SLIDE DPDT 4A 125V |
2,723 |
|
Datasheet | 25000N | Tube | Active | DPDT | Not Specified | On-Off-On | 4A (AC), 1A (DC) | 125 V | 30 V | Flush | - | Silver (Ag) | - | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
MSN24ASG13MINIATURE SLIDE |
3,379 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MSN23BSG40MINIATURE SLIDE |
3,726 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MSN23ASG40MINIATURE SLIDE |
3,493 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GH49S000001SLIDE SWITCH G TELECOM GRADE |
1,289 |
|
Datasheet | G | Bulk | Active | DPDT | Not Specified | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 5.10mm | Brass | Gold | Panel Mount | Solder Lug | - |
|
|
1571984-2SWITCH SLIDE SPDT 0.4VA 20V |
2,966 |
|
Datasheet | TSS | Bulk | Active | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard | 2.79mm | Copper | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
MSN24BSG30MINIATURE SLIDE |
1,964 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MSN24ASG30MINIATURE SLIDE |
3,922 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MSSA1350RSWITCH SLIDE SP3T 300MA 125V |
4,720 |
|
Datasheet | MSSA | Bulk | Obsolete | SP3T | Shorting (MBB) | On-On-On | 300mA (AC) | 125 V | - | Standard | 9.02mm | Copper Alloy | Silver | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
GH46W010001SWITCH SLIDE DPDT 3A 30V |
2,832 |
|
Datasheet | G | Tube | Active | DPDT | Not Specified | On-On | 3A (DC) | - | 30 V | Standard | 4.70mm | Silver (Ag) | - | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
