Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
25446NLDHSLIDE SWITCH 25000N PCB MOUNT |
1,501 |
|
Datasheet | 25000N | Bulk | Active | DPDT | Not Specified | On-On | 100mA (DC) | - | 30 V | Flush | - | Brass | Gold | Through Hole | PC Pin | - |
|

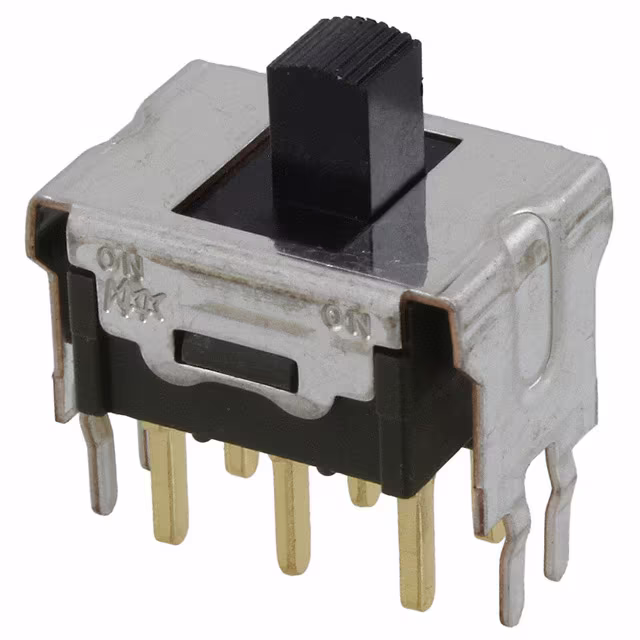

MS22ASA13/USWITCH SLIDE DPDT 6A 125V |
2,641 |
|
Datasheet | MS | Tray | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
25346NA6X693ULSWITCH SLIDE DPDT 4A 125V |
3,702 |
|
Datasheet | 25000N | Tray | Active | DPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Standard | 6.00mm | Silver (Ag) | - | Through Hole, Right Angle | PC Pin | Flame Retardant |
|
|
25146NLDHSLIDE SWITCH 25000N PCB MOUNT |
1,589 |
|
Datasheet | 25000N | Bulk | Active | DPDT | Not Specified | On-On | 4A (AC), 100mA (DC) | 125 V | 30 V | Flush | Flush | Brass | Gold | Through Hole | PC Pin | - |
|
|
25146NLDH6SLIDE SWITCH 25000N PCB MOUNT |
3,838 |
|
Datasheet | 25000N | Bulk | Active | DPDT | Not Specified | On-On | 4A (AC), 100mA (DC) | 125 V | 30 V | Flush | Flush | Brass | Gold | Through Hole | PC Pin | - |
|
|
25446NLDBSLIDE SWITCH 25000N PCB MOUNT |
1,425 |
|
Datasheet | 25000N | Bulk | Active | DPDT | Not Specified | On-On | 4A (AC), 100mA (DC) | 125 V | 30 V | Flush | Flush | Brass | Gold | Through Hole | PC Pin | - |
|
|
1571982-8SWITCH SLIDE DPDT 0.4VA 20V |
2,611 |
|
Datasheet | TSS | Bulk | Active | DPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Flush | Flush | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
MSN24ANW03SWITCH SLIDE |
3,779 |
|
- |
MS | Bulk | Active | SP3T | Non-Shorting (BBM) | On-On-On | 3A (AC) | 125 V | - | Standard | 5.11mm | Silver Alloy | Silver | Through Hole | PC Pin | - |
|
|
MSN22ASW40MINIATURE SLIDE |
2,064 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
1-1825011-3SWITCH SLIDE DPDT 0.4VA 20V |
1,984 |
|
Datasheet | ASF | Tube | Active | DPDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Screwdriver Slot | Flush | Copper Alloy | Gold | Surface Mount, Right Angle | Gull Wing | - |
|
MS12LNW03ESWITCH SLIDE SPDT 6A 125V |
3,517 |
|
Datasheet | MS | Tray | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Illuminated | 5.10mm | Silver Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
25146NABX693ULSLIDE SWITCH 25000N PCB MOUNT |
2,726 |
|
Datasheet | 25000N | Bulk | Active | DPDT | Not Specified | On-On | 4A (AC), 1A (DC) | 125 V | 30 V | Flush | Flush | Silver | - | Through Hole | PC Pin | - |
|
|
MSN23ANG03MINIATURE SLIDE |
2,679 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

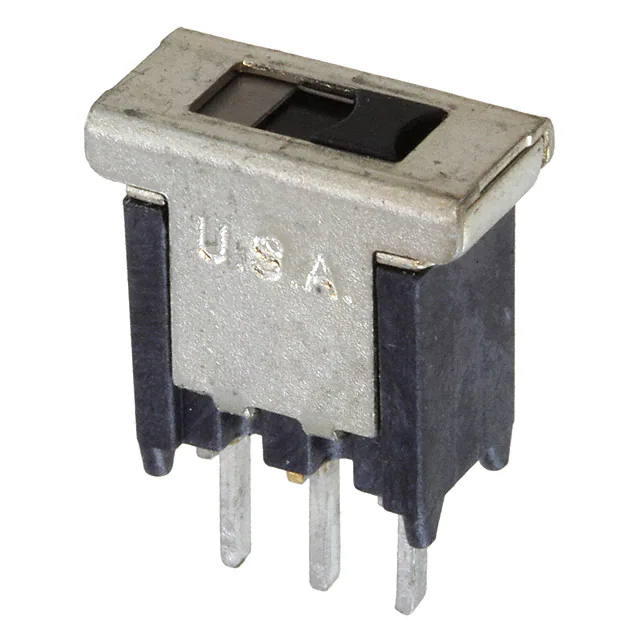

TSS11DG1PCSWITCH SLIDE SPDT 0.4VA 20V |
4,218 |
|
Datasheet | TSS | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flush | Flush | Copper | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
ASF22RGLSWITCH SLIDE DPDT 0.4VA 20V |
4,055 |
|
Datasheet | ASF | Tube | Active | DPDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Screwdriver Slot | Flush | Copper Alloy | Gold | Surface Mount, Right Angle | Gull Wing | - |
|
|
2-1825011-5SWITCH SLIDE 4PDT 0.4VA 20V |
2,623 |
|
Datasheet | ASF | Tube | Active | 4PDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Screwdriver Slot | Flush | Copper Alloy | Gold | Surface Mount | Gull Wing | Tape Seal |
|
|
4-1825010-2SWITCH SLIDE 6PDT 300MA 115V |
3,947 |
|
Datasheet | ASE | Tube | Active | 6PDT | Shorting (MBB) | On-On | 300mA (AC) | 115 V | - | Standard | 2.79mm | Copper Alloy | Silver | Surface Mount | Gull Wing | - |
|
|
56206L2XSWITCH SLIDE DPDT 500MA 125V |
2,867 |
|
Datasheet | 56200 | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 500mA (AC/DC) | 125 V | 125 V | Standard | 5.08mm | Copper Alloy | Silver | Panel Mount | Solder Lug | - |
|
|
ASF42LSWITCH SLIDE 4PDT 300MA 115V |
1,495 |
|
Datasheet | ASF | Tube | Active | 4PDT | Shorting (MBB) | On-On | 300mA (AC) | 115 V | - | Screwdriver Slot | Flush | Copper Alloy | Silver | Surface Mount | Gull Wing | Tape Seal |
|
|
MSN22BSG13SWITCH SLIDE |
1,876 |
|
- |
MS | Bulk | Active | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.11mm | Copper | Gold | Through Hole | PC Pin | - |
