Single Conductor Cables (Hook-Up Wire)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Jacket (Insulation) Thickness | Length | Voltage | Operating Temperature | Jacket Color | Ratings | Features | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
83006 002100HOOK-UP STRND 22AWG RED 100' |
3,385 |
|
Datasheet | - | Spool | Active | Hook-Up | 22 AWG | 19/34 | Copper, Silver Coated | Tetrafluoroethylene (TFE) | 0.050" (1.27mm) | 0.010" (0.25mm) | 100.0' (30.5m) | 600V | -70°C ~ 200°C | Red | UL Style 1213 | High Temperature | - | MIL-W-16878/4 |
|
83006 010100HOOK-UP STRND 22AWG BLACK 100' |
3,721 |
|
Datasheet | - | Spool | Active | Hook-Up | 22 AWG | 19/34 | Copper, Silver Coated | Tetrafluoroethylene (TFE) | 0.050" (1.27mm) | 0.010" (0.25mm) | 100.0' (30.5m) | 600V | -70°C ~ 200°C | Black | UL Style 1213 | High Temperature | - | MIL-W-16878/4 |
|
|
8918 010100HOOK-UP STRND 18AWG BLACK 100' |
1,249 |
|
Datasheet | - | Spool | Active | Hook-Up | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.110" (2.79mm) | 0.033" (0.84mm) | 100.0' (30.5m) | 600V | - | Black | UL Style 1015 | - | - | - |
|

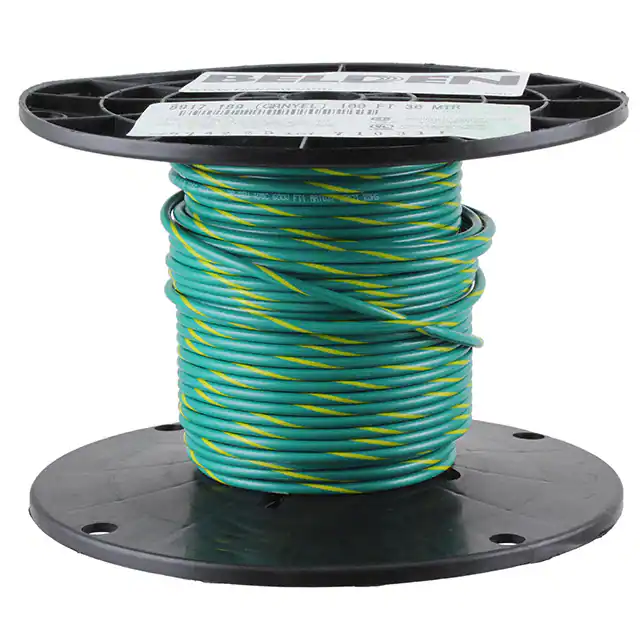

8918 189100HOOK-UP STRND 18AWG GRN/YLW 100' |
1,426 |
|
Datasheet | - | Spool | Active | Hook-Up | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.110" (2.79mm) | 0.033" (0.84mm) | 100.0' (30.5m) | 600V | - | Green, Yellow | UL Style 1015 | - | - | - |
|
|
83009 010100HOOK-UP STRND 18AWG BLACK 100' |
2,329 |
|
Datasheet | - | Spool | Active | Hook-Up | 18 AWG | 19/30 | Copper, Silver Coated | Tetrafluoroethylene (TFE) | 0.068" (1.73mm) | 0.011" (0.28mm) | 100.0' (30.5m) | 600V | -70°C ~ 200°C | Black | UL Style 1371 | High Temperature | - | MIL-W-16878/4 |
|
|
83009 002100HOOK-UP STRND 18AWG RED 100' |
1,649 |
|
Datasheet | - | Spool | Active | Hook-Up | 18 AWG | 19/30 | Copper, Silver Coated | Tetrafluoroethylene (TFE) | 0.068" (1.73mm) | 0.011" (0.28mm) | 100.0' (30.5m) | 600V | -70°C ~ 200°C | Red | UL Style 1371 | High Temperature | - | MIL-W-16878/4 |
|
83009 009100HOOK-UP STRND 18AWG WHITE 100' |
1,844 |
|
Datasheet | - | Spool | Active | Hook-Up | 18 AWG | 19/30 | Copper, Silver Coated | Tetrafluoroethylene (TFE) | 0.068" (1.73mm) | 0.011" (0.28mm) | 100.0' (30.5m) | 600V | -70°C ~ 200°C | White | UL Style 1371 | High Temperature | - | MIL-W-16878/4 |
|
|
83029 010100HOOK-UP STRND 18AWG BLACK 100' |
4,626 |
|
Datasheet | - | Spool | Active | Hook-Up | 18 AWG | 19/30 | Copper, Silver Coated | Tetrafluoroethylene (TFE) | 0.078" (1.98mm) | 0.015" (0.38mm) | 100.0' (30.5m) | 300V | -70°C ~ 200°C | Black | UL Style 1180 | High Temperature | - | MIL-W-16878/5 |
|
|
83010 002100HOOK-UP STRND 16AWG RED 100' |
2,253 |
|
Datasheet | - | Spool | Active | Hook-Up | 16 AWG | 19/29 | Copper, Silver Coated | Tetrafluoroethylene (TFE) | 0.077" (1.96mm) | 0.011" (0.28mm) | 100.0' (30.5m) | 600V | -70°C ~ 200°C | Red | UL Style 1371 | High Temperature | - | MIL-W-16878/4 |
|
|
83010 010100HOOK-UP STRND 16AWG BLACK 100' |
4,889 |
|
Datasheet | - | Spool | Active | Hook-Up | 16 AWG | 19/29 | Copper, Silver Coated | Tetrafluoroethylene (TFE) | 0.077" (1.96mm) | 0.011" (0.28mm) | 100.0' (30.5m) | 600V | -70°C ~ 200°C | Black | UL Style 1371 | High Temperature | - | MIL-W-16878/4 |
