Single Conductor Cables (Hook-Up Wire)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Cable Type | Wire Gauge | Conductor Strand | Conductor Material | Jacket (Insulation) Material | Jacket (Insulation) Diameter | Jacket (Insulation) Thickness | Length | Voltage | Operating Temperature | Jacket Color | Ratings | Features | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8524 0021000HOOK-UP STRND 22AWG RED |
3,000 |
|
Datasheet | - | Spool | Active | Hook-Up | 22 AWG | 7/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.064" (1.63mm) | 0.017" (0.43mm) | 1000.0' (304.8m) | 1000V | -40°C ~ 80°C | Red | - | Chemical Resistant | - | MIL-W-76C Type MW |
|
9919 0101000HOOK-UP STRND 20AWG BLACK |
7,000 |
|
Datasheet | - | Spool | Active | Hook-Up | 20 AWG | 7/28 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.069" (1.75mm) | 0.016" (0.41mm) | 1000.0' (304.8m) | 300V | - | Black | UL Style 1007/1569 | - | - | - |
|
83002 0091000HOOK-UP STRND 26AWG WHITE |
3,000 |
|
Datasheet | - | Spool | Active | Hook-Up | 26 AWG | 7/34 | Copper, Silver Coated | Tetrafluoroethylene (TFE) | 0.039" (0.99mm) | 0.010" (0.25mm) | 1000.0' (304.8m) | 600V | -70°C ~ 200°C | White | UL Style 1213 | High Temperature | - | MIL-W-16878/4 |
|
|
8522 0021000HOOK-UP STRND 18AWG RED |
3,000 |
|
Datasheet | - | Spool | Active | Hook-Up | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.080" (2.03mm) | 0.017" (0.43mm) | 1000.0' (304.8m) | 1000V | -40°C ~ 80°C | Red | - | Chemical Resistant | - | MIL-W-76C Type MW |
|
|
9918 0021000HOOK-UP STRND 18AWG RED |
3,000 |
|
Datasheet | - | Spool | Active | Hook-Up | 18 AWG | 16/30 | Copper, Tinned | Poly-Vinyl Chloride (PVC) | 0.079" (2.01mm) | 0.017" (0.43mm) | 1000.0' (304.8m) | 300V | - | Red | UL Style 1007/1569 | - | - | - |
|
|
83045 010100HOOK-UP STRND 28AWG BLACK |
7,100 |
|
Datasheet | - | Spool | Active | Hook-Up | 28 AWG | 7/36 | Copper, Silver Coated | Tetrafluoroethylene (TFE) | 0.027" (0.69mm) | 0.006" (0.15mm) | 100.0' (30.5m) | 250V | 200°C | Black | UL Style 1371 | High Temperature | - | MIL-W-16878/6 |
|
|
83005 0021000HOOK-UP STRND 22AWG RED |
27,000 |
|
Datasheet | - | Spool | Active | Hook-Up | 22 AWG | 7/30 | Copper, Silver Coated | Tetrafluoroethylene (TFE) | 0.050" (1.27mm) | 0.010" (0.25mm) | 1000.0' (304.8m) | 600V | -70°C ~ 200°C | Red | UL Style 1213 | High Temperature | - | MIL-W-16878/4 |
|
|
83005 0091000HOOK-UP STRND 22AWG WHITE |
8,000 |
|
Datasheet | - | Spool | Active | Hook-Up | 22 AWG | 7/30 | Copper, Silver Coated | Tetrafluoroethylene (TFE) | 0.050" (1.27mm) | 0.010" (0.25mm) | 1000.0' (304.8m) | 600V | -70°C ~ 200°C | White | UL Style 1213 | High Temperature | - | MIL-W-16878/4 |
|

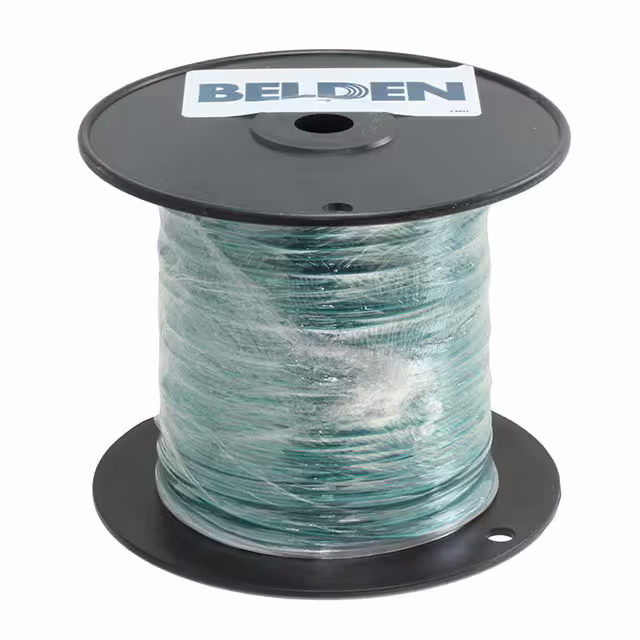

83005 0051000HOOK-UP STRND 22AWG GREEN |
3,000 |
|
Datasheet | - | Spool | Active | Hook-Up | 22 AWG | 7/30 | Copper, Silver Coated | Tetrafluoroethylene (TFE) | 0.050" (1.27mm) | 0.010" (0.25mm) | 1000.0' (304.8m) | 600V | -70°C ~ 200°C | Green | UL Style 1213 | High Temperature | - | MIL-W-16878/4 |
|
|
83005 0101000HOOK-UP STRND 22AWG BLACK |
1,000 |
|
Datasheet | - | Spool | Active | Hook-Up | 22 AWG | 7/30 | Copper, Silver Coated | Tetrafluoroethylene (TFE) | 0.050" (1.27mm) | 0.010" (0.25mm) | 1000.0' (304.8m) | 600V | -70°C ~ 200°C | Black | UL Style 1213 | High Temperature | - | MIL-W-16878/4 |
