Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KC26A9.501NLSSWITCH ROTARY 6POS 350MA 125V |
516 |
|
Datasheet | KC | Bulk | Active | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 9.50mm | 30° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 18.50mm |
|
KC26A9.501NPFSWITCH ROTARY 6POS 350MA 125V |
659 |
|
Datasheet | KC | Bulk | Active | 6 | Fixed | 1 | 2 | DP6T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 9.50mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|

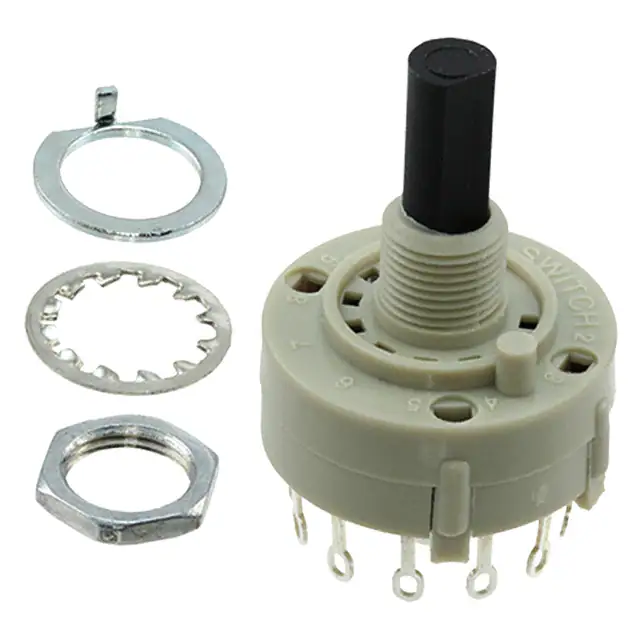

KC43A13.001NLSSWITCH ROTARY 3POS 350MA 125V |
143 |
|
Datasheet | KC | Bulk | Active | 3 | Fixed | 1 | 4 | 4P3T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 13.00mm | 30° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 18.50mm |
|
KC15B10.001NPSSWITCH ROTARY 5POS 350MA 125V |
482 |
|
Datasheet | KC | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Round (6mm Dia) | 10.00mm | 30° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|
KC15A9.501NPFSWITCH ROTARY 5POS 350MA 125V |
1,092 |
|
Datasheet | KC | Bulk | Active | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 9.50mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|

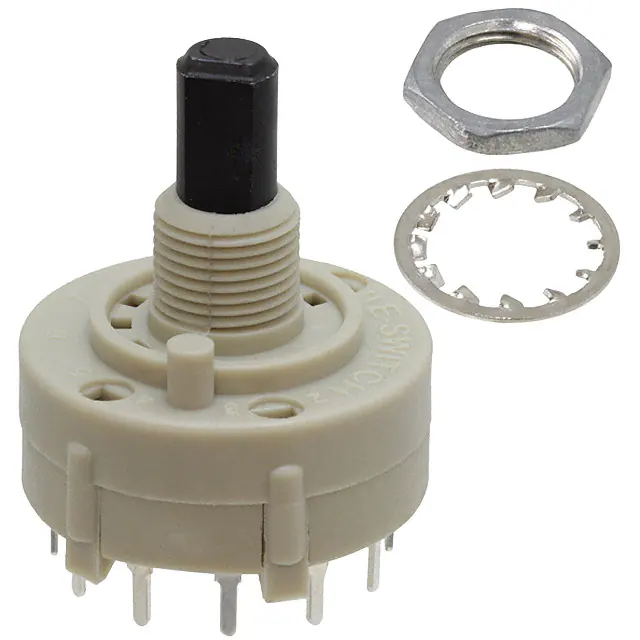

KC10A9.501NPSSWITCH ROTARY 12POS 350MA 125V |
401 |
|
Datasheet | KC | Bulk | Active | 12 | Continuous | 1 | 1 | SP12T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 9.50mm | 30° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|
KC14A13.001NLSSWITCH ROTARY 4POS 350MA 125V |
298 |
|
Datasheet | KC | Bulk | Active | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 13.00mm | 30° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 18.50mm |
|
KC34A30.001NLSSWITCH ROTARY 4POS 350MA 125V |
406 |
|
Datasheet | KC | Bulk | Active | 4 | Fixed | 1 | 3 | 3P4T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 30.00mm | 30° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 18.50mm |
|

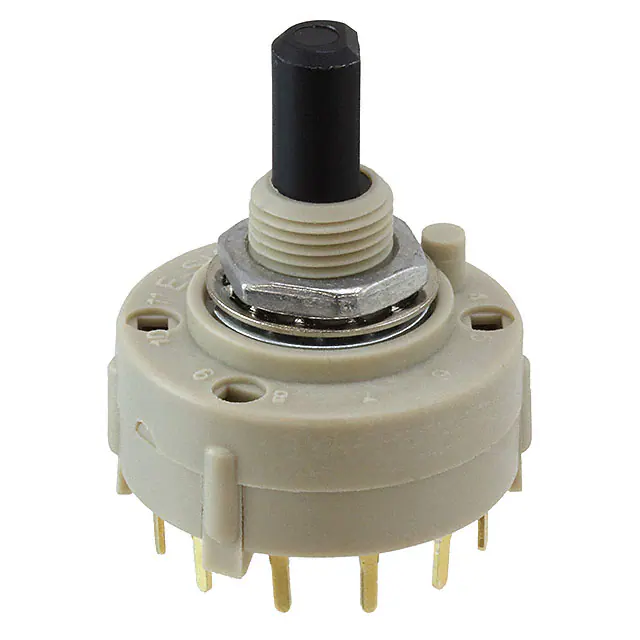

KC52A10.001NPFSWITCH ROTARY 12POS 350MA 125V |
497 |
|
Datasheet | KC | Bulk | Active | 12 | Fixed | 1 | 1 | SP12T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 10.00mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|
|
KC60RANCONPFSWITCH ROTARY 6POS 350MA 125V |
835 |
|
- |
KC | Bulk | Obsolete | 6 | Fixed | 1 | 1 | SP6T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6mm Dia) | 16.00mm | 60° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 14.10mm |
