Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KC58A13.001NPSNOSTOPSWITCH ROTARY 4POS 350MA 125V |
4,408 |
|
Datasheet | KC | Bulk | Obsolete | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 13.00mm | 90° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|
KC58A9.501NLSSWITCH ROTARY 4POS 350MA 125V |
3,926 |
|
Datasheet | KC | Bulk | Obsolete | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 9.50mm | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | - | 18.50mm |
|

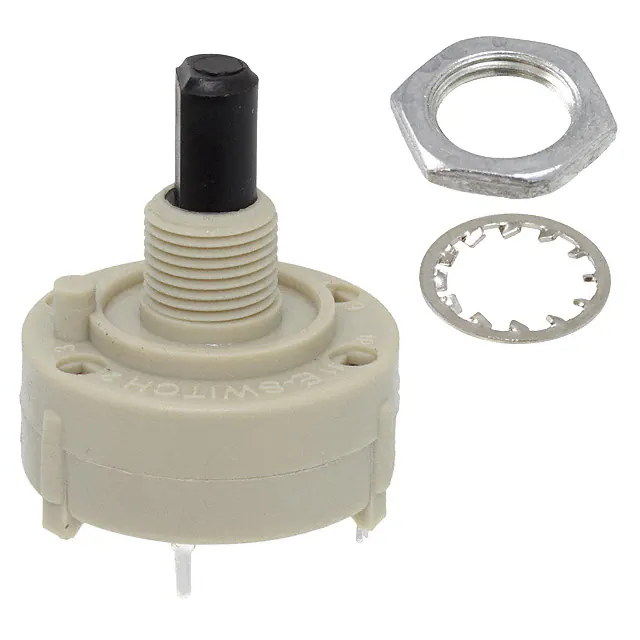

KC58A9.501NPSSWITCH ROTARY 4POS 350MA 125V |
1,407 |
|
Datasheet | KC | Bulk | Obsolete | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 9.50mm | 90° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|

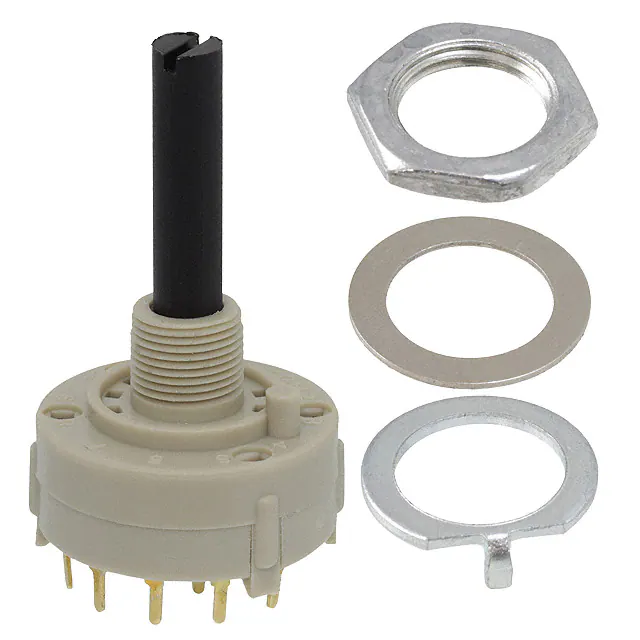

KC15B02NPFB31.5MMSWITCH ROTARY 5POS 350MA 125V |
1,745 |
|
- |
KC | Bulk | Obsolete | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Round (6mm Dia), Slotted | 23.50mm | 30° | Copper Alloy | Gold | Panel Mount, Through Hole | PC Pin | - | 14.10mm |
|
KC56A10.001NLFSWITCH ROTARY 3POS 350MA 125V |
2,755 |
|
Datasheet | KC | Bulk | Obsolete | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 10.00mm | 90° | Copper Alloy | Gold | Panel Mount | Solder Lug | - | 18.50mm |
|

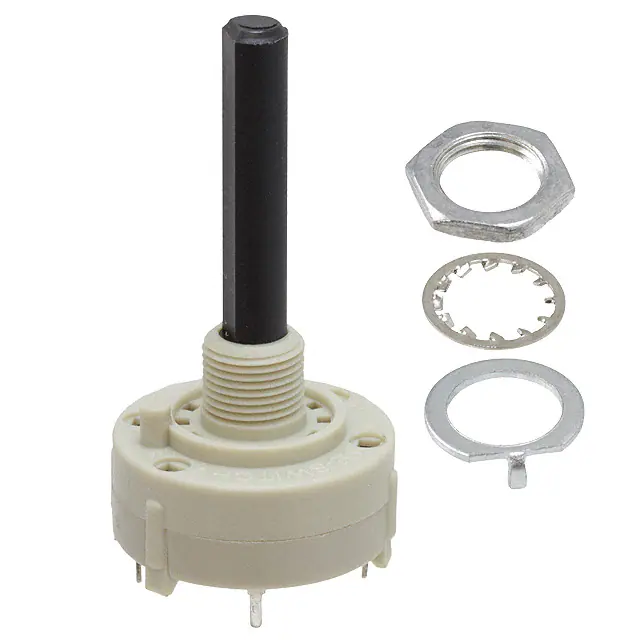

KC58A30.001NPSSWITCH ROTARY 4POS 350MA 125V |
3,538 |
|
Datasheet | KC | Bulk | Obsolete | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 30.00mm | 90° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|
|
KC15A7.002NPSSWITCH ROTARY 5POS 350MA 125V |
2,579 |
|
Datasheet | KC | Bulk | Obsolete | 5 | Fixed | 1 | 1 | SP5T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 7.00mm | 30° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|
|
KC58A7.001NPSSWITCH ROTARY 4POS 350MA 125V |
4,453 |
|
Datasheet | KC | Bulk | Obsolete | 4 | Fixed | 1 | 1 | SP4T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 7.00mm | 90° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
|
|
KC1056WITHHICKOKMODSWITCH ROTARY 12POS 350MA 125V |
4,738 |
|
- |
KC | Bulk | Obsolete | 12 | Continuous | 1 | 3 | 3P12T | Not Specified | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 9.50mm | 30° | Copper Alloy | - | Panel Mount, Through Hole | PC Pin | - | 14.10mm |
|
|
KC55A9.501NPSSWITCH ROTARY 3POS 350MA 125V |
2,884 |
|
Datasheet | KC | Bulk | Obsolete | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 350mA (AC) | 125 V | - | Flatted (6.35mm Dia) | 9.50mm | 60° | Copper Alloy | Silver | Panel Mount, Through Hole | PC Pin | - | 14.20mm |
