Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P16SNP101MAB15POT 100 OHM 1W CERMET LINEAR |
112 |
|
Datasheet | P16S | Bulk | Active | 100 | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | 0.346" (8.80mm) | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
2-1625931-4POT 470K OHM 2W CERMET LINEAR |
165 |
|
Datasheet | M, Citec | Bulk | Active | 470k | ±10% | 2W | None | 1.0 | - | Linear | 1 | Top Adjustment | 0.75% | 270° | Cermet | PC Pins | Round | 1.000" (25.40mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
|
2-1625931-6POT 100 OHM 2W CERMET LINEAR |
165 |
|
Datasheet | M, Citec | Bulk | Active | 100 | ±10% | 2W | None | 1.0 | - | Linear | 1 | Top Adjustment | 0.75% | 270° | Cermet | PC Pins | Round | 1.000" (25.40mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
P10XXAI104KB30POT 100K OHM 1/2W CERMET LINEAR |
195 |
|
Datasheet | P10 | Box | Active | 100k | ±10% | 0.5W, 1/2W | None | 1.0 | Sealed | Linear | 1 | Side Adjustment | ±150ppm/°C | 290° | Cermet | PC Pins | Slotted | 0.787" (20.00mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
54AAD-B28-B15/P50LPOT 10K OHM 1/2W PLASTIC LINEAR |
270 |
|
Datasheet | 54 | Tray | Active | 10k | ±20% | 0.5W, 1/2W | Push-Pull, DPDT | 1.0 | - | Linear | 1 | Side Adjustment | ±1000ppm/°C | 290° | Conductive Plastic | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
54CAD-E28-B13/P50LPOT 5K OHM 1/2W PLASTIC LINEAR |
214 |
|
Datasheet | 54 | Tray | Active | 5k | ±20% | 0.5W, 1/2W | Push-Pull, DPDT | 1.0 | - | Linear | 1 | Side Adjustment | ±1000ppm/°C | 290° | Conductive Plastic | PC Pins | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
3540S-91-502LPOT 5K OHM 2W WIREWOUND LINEAR |
115 |
|
Datasheet | 3540 | Bulk | Active | 5k | ±5% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
84A1A-B28-J10LPOT 1K OHM 1W WIREWOUND LINEAR |
193 |
|
Datasheet | 84 | Tray | Active | 1k | ±5% | 1W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
3545S-1-502LPOT 5K OHM 1.5W WIREWOUND LINEAR |
412 |
|
Datasheet | 3545 | Bulk | Active | 5k | ±5% | 1.5W | None | 5.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 1800° | Wirewound | Solder Lug | Slotted | 0.812" (20.63mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
P11S2V0FLSY00D0046POT CERMET LINEAR |
1,232 |
|
Datasheet | P11S | Box | Active | - | - | - | None | 1.0 | Sealed | Linear | 2 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M6 x 0.75 | Panel Mount |
|
P11S2V0FLSY00D0047POT CERMET LINEAR |
4,938 |
|
Datasheet | P11S | Box | Active | - | - | - | None | 1.0 | Sealed | Linear | 2 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M6 x 0.75 | Panel Mount |
|
3549H-1AA-502APOT 5K OHM 2W HYBRITRON LINEAR |
3,307 |
|
Datasheet | Hybritron® 3549 | Tray | Active | 5k | ±10% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 3600° | Hybritron® | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
14920F0GJSX13103KAPOT 10K OHM 1W CERMET LINEAR |
4,908 |
|
Datasheet | 149 | Box | Active | 10k | ±10% | 1W | None | 1.0 | - | Linear | 2 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Through Hole |
|
3500S-2-104LPOT 100K OHM 2W WIREWOUND LINEAR |
3,749 |
|
Datasheet | 3500 | Bulk | Active | 100k | ±3% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.249" (6.32mm) | 3/8-32 | Panel Mount |
|
83A1A-B24-J15LPOT 10K OHM 1W WIREWOUND LINEAR |
1,616 |
|
Datasheet | 83 | Tray | Active | 10k | ±5% | 1W | None | 10.0 | - | Linear | 1 | Side Adjustment | ±50ppm/°C | 3600° | Wirewound | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
3549H-1BH-103BPOT 10K OHM 2W HYBRITRON LINEAR |
3,099 |
|
Datasheet | Hybritron® 3549 | Bulk | Active | 10k | ±10% | 2W | None | 10.0 | - | Linear | 1 | User Defined | ±100ppm/°C | 3600° | Hybritron® | Solder Lug | Slotted | 0.811" (20.60mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
|
|
3549H-2AC-102/102BPOT 1K OHM 2W HYBRITRON LINEAR |
3,034 |
|
Datasheet | Hybritron® 3549 | Tray | Active | 1k | ±10% | 2W | None | 10.0 | - | Linear | 2 | User Defined | ±100ppm/°C | 3600° | Hybritron® | Solder Lug | Slotted | 0.813" (20.64mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|

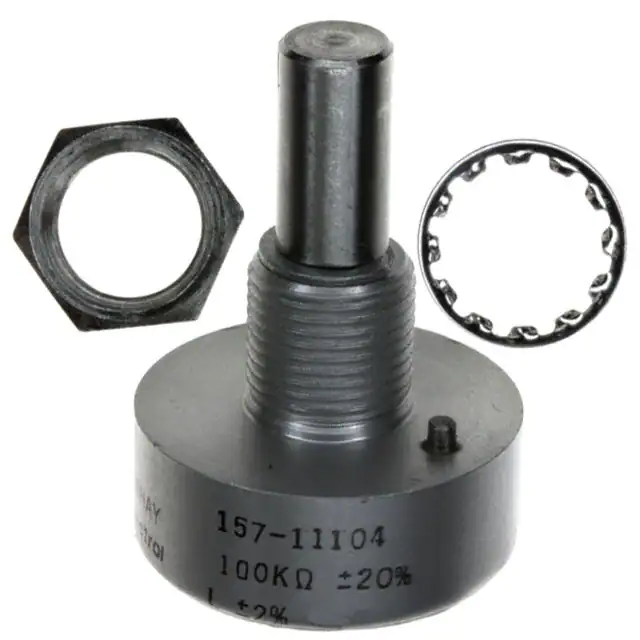

157B104MXPOT 100K OHM 1W PLASTIC LINEAR |
4,047 |
|
Datasheet | 157 | Bulk | Active | 100k | ±20% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±600ppm/°C | Continuous | Conductive Plastic | Solder Turret | Round | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
14921F0GJSX13102KAPOT 1K OHM 1W CERMET LINEAR |
2,167 |
|
Datasheet | 149 | Box | Active | 1k | ±10% | 1W | Rotary, SPDT | 1.0 | - | Linear | 2 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Through Hole |
|
3400S-1-202LPOT 2K OHM 5W WIREWOUND LINEAR |
4,476 |
|
Datasheet | 3400 | Bulk | Active | 2k | ±3% | 5W | None | 10.0 | - | Linear | 1 | User Defined | ±20ppm/°C | 3600° | Wirewound | Solder Lug | Slotted | 0.813" (20.64mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
