Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T21AH-M0607-254A2020-TAPOT 250K OHM 1/4W CARBON LINEAR |
597 |
|
Datasheet | T-21 | Bulk | Active | 250k | ±20% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | Side Adjustment | - | 310° | Carbon | PC Pins | Round | 2.362" (60.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
T21AH-M0607-503A2020-TAPOT 50K OHM 1/4W CARBON LINEAR |
593 |
|
Datasheet | T-21 | Bulk | Active | 50k | ±20% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±300ppm/°C | 310° | Carbon | PC Pins | Round | 2.362" (60.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
PC16SH-10IP06-252A2020-I-TAPOT 2.5K OHM 1/5W CARBON LINEAR |
598 |
|
Datasheet | PC-16 | Bulk | Active | 2.5k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±300ppm/°C | 300° | Carbon | PC Pins | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
PC16SH-10CP06-102A2020-C-TAPOT 1K OHM 1/5W CARBON LINEAR |
596 |
|
Datasheet | PC-16 | Bulk | Active | 1k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±300ppm/°C | 300° | Carbon | Solder Lug | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
PC16SH-10CP06-222A2020-C-TAPOT 2.2K OHM 1/5W CARBON LINEAR |
582 |
|
Datasheet | PC-16 | Bulk | Active | 2.2k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±300ppm/°C | 300° | Carbon | Solder Lug | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
PC16SH-10CP06-473A2020-C-TAPOT 47K OHM 1/5W CARBON LINEAR |
569 |
|
Datasheet | PC-16 | Bulk | Active | 47k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±300ppm/°C | 300° | Carbon | Solder Lug | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
PC16SH-10CP06-104A2020-C-TAPOT 100K OHM 1/5W CARBON LINEAR |
382 |
|
Datasheet | PC-16 | Bulk | Active | 100k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | Side Adjustment | - | 300° | Carbon | Solder Lug | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
T21AH-M0607-102B2020-TAPOT 1K OHM 0.12W CARBON LOG |
599 |
|
Datasheet | T-21 | Bulk | Active | 1k | ±20% | 0.12W | None | 1.0 | - | Logarithmic | 1 | Side Adjustment | ±300ppm/°C | 310° | Carbon | PC Pins | Round | 2.362" (60.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
PCW1J-C24-BAB104LPOT 100K OHM 3/4W PLASTIC LINEAR |
243 |
|
Datasheet | PC-Slimline | Tray | Active | 100k | ±20% | 0.75W, 3/4W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Flatted | 0.750" (19.05mm) | 0.250" (6.35mm) | M9 x 0.75 | Panel Mount |
|
|
PC16SH-10IP06-105A2020-I-TAPOT 1M OHM 1/5W CARBON LINEAR |
737 |
|
Datasheet | PC-16 | Bulk | Active | 1M | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | Side Adjustment | - | 300° | Carbon | PC Pins | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
T21AH-M0607-102A2020-15,0-TAPOT 1K OHM 1/4W CARBON LINEAR |
597 |
|
Datasheet | T-21 | Bulk | Active | 1k | ±20% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±300ppm/°C | 310° | Carbon | PC Pins | Round | 2.362" (60.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
T21AH-M0607-103A2020-15,0-TAPOT 10K OHM 1/4W CARBON LINEAR |
572 |
|
Datasheet | T-21 | Bulk | Active | 10k | ±20% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±300ppm/°C | 310° | Carbon | PC Pins | Round | 2.362" (60.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|

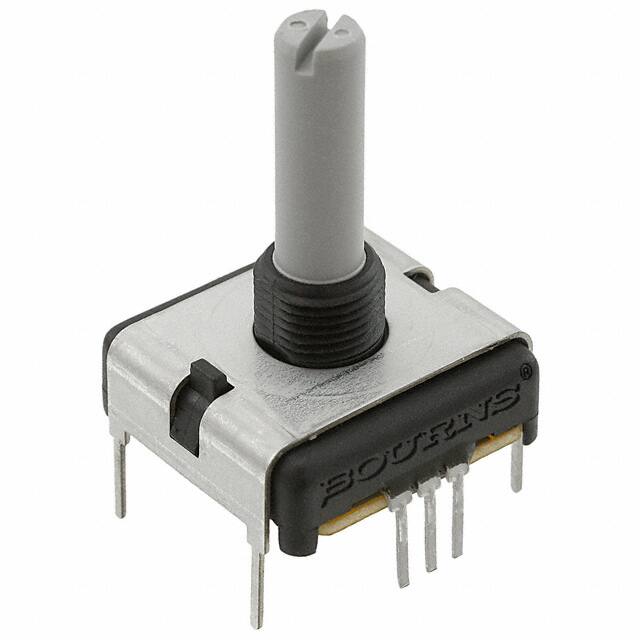

PCW1J-R24-BAB103LPOT 10K OHM 3/4W PLASTIC LINEAR |
265 |
|
Datasheet | PC-Slimline | Tray | Active | 10k | ±20% | 0.75W, 3/4W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.945" (24.00mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
|
|
PC16DH-07CP04-223A2020-TAPOT 22K OHM 1/5W CARBON LINEAR |
597 |
|
Datasheet | PC-16 | Bulk | Active | 22k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 2 | Side Adjustment | ±300ppm/°C | 300° | Carbon | Solder Lug | Knurled | 1.772" (45.00mm) | 0.157" (4.00mm) | M7 x 0.75 | Panel Mount |
|
|
PC16DH-10IP06-474A2020-TAPOT 470K OHM 1/5W CARBON LINEAR |
596 |
|
Datasheet | PC-16 | Bulk | Active | 470k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 2 | Side Adjustment | - | 300° | Carbon | PC Pins | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
PC16DH-10IP06-223A2020-TAPOT 22K OHM 1/5W CARBON LINEAR |
596 |
|
Datasheet | PC-16 | Bulk | Active | 22k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 2 | Side Adjustment | ±300ppm/°C | 300° | Carbon | PC Pins | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
|
PC16DH-07CP04-104A2020-TAPOT 100K OHM 1/5W CARBON LINEAR |
591 |
|
Datasheet | PC-16 | Bulk | Active | 100k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 2 | Side Adjustment | - | 300° | Carbon | Solder Lug | Knurled | 1.772" (45.00mm) | 0.157" (4.00mm) | M7 x 0.75 | Panel Mount |
|
|
PC16DH-10IP06-224A2020-TAPOT 220K OHM 1/5W CARBON LINEAR |
590 |
|
Datasheet | PC-16 | Bulk | Active | 220k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 2 | Side Adjustment | - | 300° | Carbon | PC Pins | Knurled | 1.772" (45.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
PCW1J-B24-BAB502LPOT 5K OHM 3/4W PLASTIC LINEAR |
310 |
|
Datasheet | PC-Slimline | Tray | Active | 5k | ±20% | 0.75W, 3/4W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | M9 x 0.75 | Panel Mount |
|
PCW1J-C24-KAB104LPOT 100K OHM 3/4W PLASTIC LINEAR |
263 |
|
Datasheet | PC-Slimline | Tray | Active | 100k | ±20% | 0.75W, 3/4W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Flatted | 0.750" (19.05mm) | 0.250" (6.35mm) | M9 x 0.75 | Panel Mount |
