Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
93A1A-B28-A18LPOT 50K OHM 2W CERMET LINEAR |
3,028 |
|
Datasheet | 93 | Bulk | Active | 50k | ±10% | 2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
91R1A-R22-D20LPOT 100K OHM 1/2W PLASTIC LOG |
4,606 |
|
Datasheet | 91 | Bulk | Active | 100k | ±20% | 0.5W, 1/2W | None | 1.0 | - | Logarithmic | 1 | Side Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.866" (22.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|

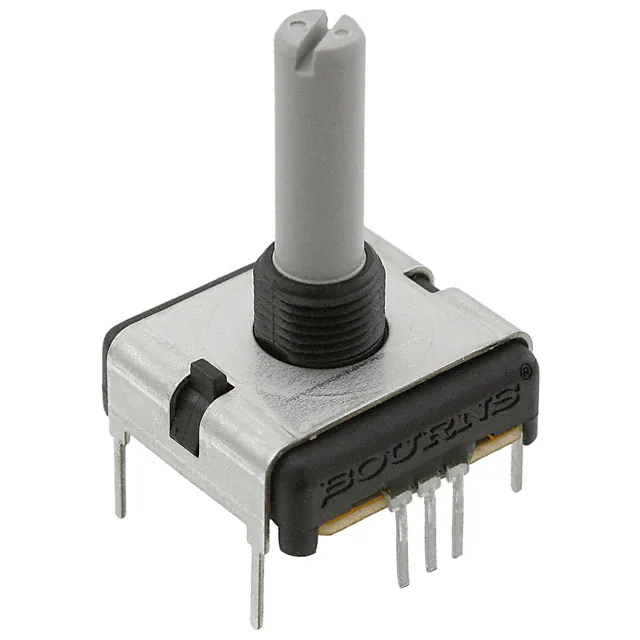

PCW1J-R24-BAB102LPOT 1K OHM 3/4W PLASTIC LINEAR |
1,827 |
|
Datasheet | PC-Slimline | Tray | Active | 1k | ±20% | 0.75W, 3/4W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.945" (24.00mm) | 0.236" (6.00mm) | M9 x 0.75 | Panel Mount |
|
PCW1J-B24-BAB503LPOT 50K OHM 3/4W PLASTIC LINEAR |
3,058 |
|
Datasheet | PC-Slimline | Tray | Active | 50k | ±20% | 0.75W, 3/4W | None | 1.0 | - | Linear | 1 | Top Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | M9 x 0.75 | Panel Mount |
|
91R1A-R16-A20LPOT 100K OHM 2W CERMET LINEAR |
4,657 |
|
Datasheet | 91 | Bulk | Active | 100k | ±10% | 2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.630" (16.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
91A1A-B28-B18LPOT 50K OHM 1W PLASTIC LINEAR |
3,295 |
|
Datasheet | 91 | Bulk | Active | 50k | ±20% | 1W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
91A1A-B24-B10LPOT 1K OHM 1W PLASTIC LINEAR |
4,003 |
|
Datasheet | 91 | Bulk | Active | 1k | ±20% | 1W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±1000ppm/°C | 300° | Conductive Plastic | PC Pins | Slotted | 0.750" (19.05mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
93A1A-B28-A15LPOT 10K OHM 2W CERMET LINEAR |
4,430 |
|
Datasheet | 93 | Bulk | Active | 10k | ±10% | 2W | None | 1.0 | - | Linear | 1 | Side Adjustment | ±150ppm/°C | 300° | Cermet | PC Pins | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
23ESB103MMF50AFPOT 10K OHM 1/5W CARBON LOG |
1,504 |
|
Datasheet | 23, Citec | Bulk | Active | 10k | ±20% | 0.2W, 1/5W | Rotary, DPST | 1.0 | - | Logarithmic | 1 | User Defined | 5% | 300° | Carbon | Solder Lug | Flatted | 1.969" (50.00mm) | 0.250" (6.35mm) | - | Panel Mount |
|
P1004-95POT 100K OHM 1/4W WIREWOUND LIN |
2,919 |
|
Datasheet | P1004 | Bulk | Active | 100k | ±10% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Knurled and Slotted | - | - | - | Panel Mount |
|
PRV6SAABJYB25103KAPOT 10K OHM 1.5W CERMET LINEAR |
4,635 |
|
Datasheet | PRV6 | Box | Active | 10k | ±10% | 1.5W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.866" (22.00mm) | 0.125" (3.18mm) | - | Panel Mount |
.jpg)
|
P11S1V0FLSY00103KAPOT 10K OHM 1W CERMET LINEAR |
1,665 |
|
Datasheet | P11S | Box | Active | 10k | ±10% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M10 x 0.75 | Panel Mount |
|
P11S1V0FLSY00105KAPOT 1M OHM 0.12W CERMET LINEAR |
1,420 |
|
Datasheet | P11S | Box | Active | 1M | ±10% | 0.12W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M6 x 0.75 | Panel Mount |
|
P11S1V0FLSY00503KLPOT 50K OHM 1/2W CERMET LOG |
2,545 |
|
Datasheet | P11S | Box | Active | 50k | ±10% | 0.5W, 1/2W | None | 1.0 | Sealed | Logarithmic | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M6 x 0.75 | Panel Mount |
|
P1004-15POT 1.5M OHM 1/4W WIREWOUND LIN |
1,107 |
|
Datasheet | P1004 | Bulk | Active | 1.5M | ±10% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Knurled and Slotted | - | - | - | Panel Mount |
|
P1004-12POT 3M OHM 1/4W WIREWOUND LINEAR |
3,071 |
|
Datasheet | P1004 | Bulk | Active | 3M | ±10% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Knurled and Slotted | - | - | - | Panel Mount |
|
P16NP472KAB15POT 4.7K OHM 1W CERMET LINEAR |
4,273 |
|
Datasheet | P16 | Box | Active | 4.7k | ±10% | 1W | None | 1.0 | Sealed | Linear | 1 | User Defined | ±150ppm/°C | 300° | Cermet | Solder Lug | Knob | - | 0.630" (16.00mm) | M10 x 0.75 | Panel Mount |
|
6639S-301-102POT 1K OHM 1W PLASTIC LINEAR |
2,098 |
|
Datasheet | 6639 | Bulk | Active | 1k | ±15% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | 340° | Conductive Plastic | Solder Turret | Slotted | 0.875" (22.23mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
M-13035KPOT 5K OHM 3/4W WIREWOUND LINEAR |
2,388 |
|
Datasheet | M-13 | Bulk | Active | 5k | ±5% | 0.75W, 3/4W | None | 3.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 1080° | Wirewound | Solder Lug | Slotted | 0.650" (16.50mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
P1004-13POT 5M OHM 1/4W WIREWOUND LINEAR |
1,045 |
|
Datasheet | P1004 | Bulk | Active | 5M | ±10% | 0.25W, 1/4W | None | 1.0 | - | Linear | 1 | User Defined | - | 300° | Wirewound | Solder Lug | Knurled and Slotted | - | - | - | Panel Mount |
