Rotary Potentiometers, Rheostats
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance (Ohms) | Tolerance | Power (Watts) | Built in Switch | Number of Turns | Features | Taper | Number of Gangs | Adjustment Type | Temperature Coefficient | Rotation | Resistive Material | Termination Style | Actuator Type | Actuator Length | Actuator Diameter | Bushing Thread | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CU3552E2 WATT CARBON POT TYPE CU 10% |
3,170 |
|
Datasheet | CU | Case | Active | 3.5M | ±20% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 312° | Carbon | Solder Lug | Round | 0.874" (22.20mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
CU1011E2 WATT CARBON POT TYPE CU 10% |
4,098 |
|
Datasheet | CU | Bulk | Active | 100 | ±10% | 2W | None | 1.0 | - | Linear | 1 | User Defined | - | 312° | Carbon | Solder Lug | Round | 0.874" (22.20mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
|
RVQ24YS08-03 21S B 5025K OHM 0.15W 21 MM CARBON LINEAR |
100 |
|
Datasheet | - | Bulk | Active | 5k | ±10% | 0.15W | None | 1.0 | Long Life | Linear | 1 | User Defined | - | 300° | Carbon | Solder Lug | Slotted | 0.827" (21.00mm) | 0.250" (6.35mm) | 3/8 | Panel Mount |
|
3851A-282-103BLPOT 10K OHM 1W PLASTIC LINEAR |
4,093 |
|
Datasheet | 3851 | Tray | Active | 10k | ±20% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±1000ppm/°C | 280° | Conductive Plastic | Solder Lug | Slotted | 0.875" (22.23mm) | 0.250" (6.35mm) | 3/8-32 | Panel Mount |
|
JC10-000-502NPOT 5K OHM 1/8W PLASTIC LINEAR |
4,283 |
|
Datasheet | JC10 | Bulk | Active | 5k | ±20% | 0.125W, 1/8W | None | 1.0 | Long Life | Linear | 1 | Top Adjustment | ±400ppm/°C | Continuous | Conductive Plastic | PC Pins | Slotted | 0.591" (15.00mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
RV6NAYSD102APOT 1K OHM 1/2W CARBON LINEAR |
4,135 |
|
Datasheet | RV6 | Bulk | Active | 1k | ±10% | 0.5W, 1/2W | None | 1.0 | - | Linear | 1 | User Defined | - | 295° | Carbon | Solder Lug | Slotted | 0.875" (22.23mm) | 0.125" (3.18mm) | 1/4-32 | Panel Mount |
|
MC1003-000-502POT 5K OHM 0.19W PLASTIC LINEAR |
2,827 |
|
Datasheet | MC1003 | Bag | Active | 5k | ±20% | 0.19W | None | 3.0 | Long Life | Linear | 1 | User Defined | ±400ppm/°C | 1080° | Conductive Plastic | Solder Lug | Slotted | 0.650" (16.50mm) | 0.118" (3.00mm) | M6 x 0.75 | Panel Mount |
|
6539S-1-102POT 1K OHM 1W PLASTIC LINEAR |
4,731 |
|
Datasheet | 6539 | Bulk | Active | 1k | ±15% | 1W | None | 1.0 | - | Linear | 1 | User Defined | ±500ppm/°C | Continuous | Conductive Plastic | Solder Turret | Round | 0.500" (12.70mm) | 0.1248" (3.17mm) | - | Servo Mount |
|

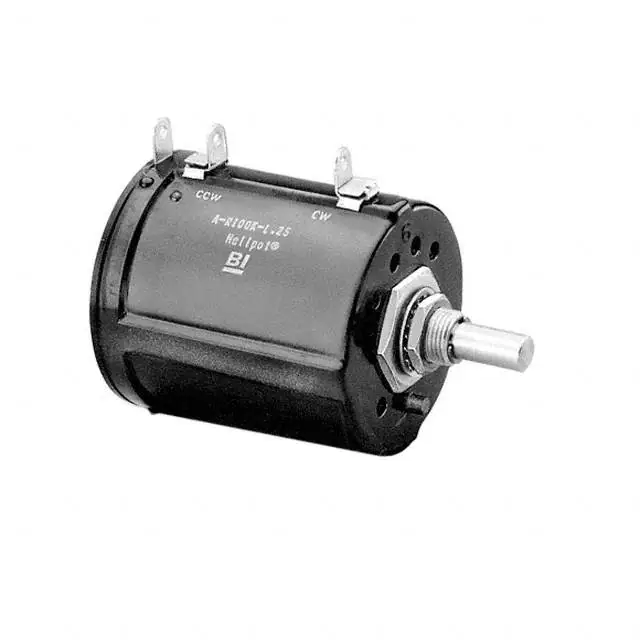

AR5KL.25POT 5K OHM 5W WIREWOUND LINEAR |
2,173 |
|
Datasheet | A | Bulk | Active | 5k | ±3% | 5W | None | 10.0 | - | Linear | 1 | User Defined | 130ppm/°C | 3600° | Wirewound | Solder Lug | Round | 0.811" (20.60mm) | 0.2497" (6.34mm) | 3/8-32 | Panel Mount |
|
3610S-1-103POT 10K OHM 1.5W WIREWOUND LIN |
3,673 |
|
Datasheet | Knobpot® 3610 | Bulk | Active | 10k | ±5% | 1.5W | None | 10.0 | - | Linear | 1 | User Defined | ±50ppm/°C | 3600° | Wirewound | Solder Hook | Knob | 0.740" (18.80mm) | 0.875" (22.23mm) | - | Panel Mount |
|
PTV09A-4020F-B203POT 20K OHM 1/20W CARBON LINEAR |
2,848 |
|
Datasheet | Pro Audio PTV09 | Tray | Active | 20k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Linear | 1 | Top Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Flatted | 0.787" (20.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|
PTV09A-4225F-B103POT 10K OHM 1/20W CARBON LINEAR |
2,223 |
|
Datasheet | Pro Audio PTV09 | Tray | Active | 10k | ±20% | 0.05W, 1/20W | Detent | 1.0 | - | Linear | 1 | Top Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Flatted | 0.984" (25.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|
|
PTV09A-4015U-B104POT 100K OHM 1/20W CARBON LINEAR |
1,568 |
|
Datasheet | Pro Audio PTV09 | Tray | Active | 100k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Linear | 1 | Top Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Knurled | 0.591" (15.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|
|
PTV09A-4020U-B102POT 1K OHM 1/20W CARBON LINEAR |
1,931 |
|
Datasheet | Pro Audio PTV09 | Tray | Active | 1k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Linear | 1 | Top Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Knurled | 0.787" (20.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|
PTV09A-2020F-A103POT 10K OHM 1/20W CARBON LOG |
4,174 |
|
Datasheet | Pro Audio PTV09 | Tray | Active | 10k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Logarithmic | 1 | Side Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Flatted | 0.787" (20.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|

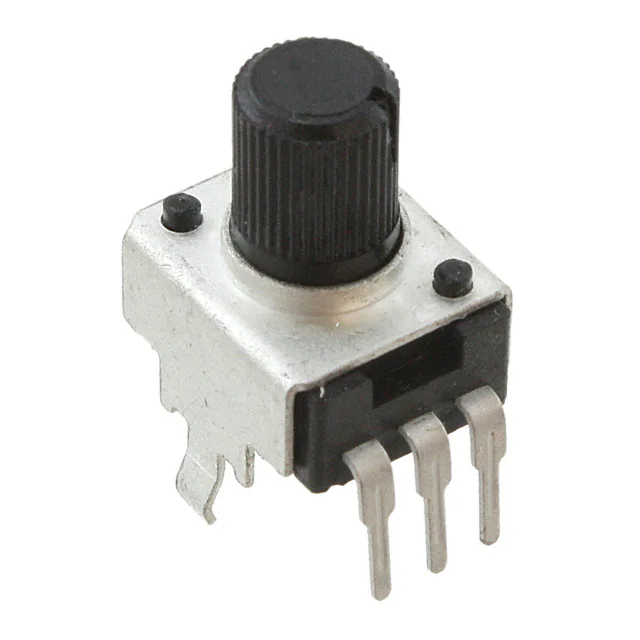

PTV09A-4015U-B103POT 10K OHM 1/20W CARBON LINEAR |
3,164 |
|
Datasheet | Pro Audio PTV09 | Tray | Active | 10k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Linear | 1 | Top Adjustment | - | 280° | Carbon | PC Pins, Board Locks | Knurled | 0.591" (15.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|
PDB181-K420K-502BPOT 5K OHM 1/5W CARBON LINEAR |
2,300 |
|
Datasheet | Pro Audio PDB18 | Bulk | Active | 5k | ±20% | 0.2W, 1/5W | None | 1.0 | - | Linear | 1 | Side Adjustment | - | 300° | Carbon | PC Pins | Knurled and Slotted | 0.787" (20.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
|
PTV112-4420A-A103POT 10K OHM 1/20W CARBON LOG |
1,036 |
|
Datasheet | PTV | Tray | Active | 10k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Logarithmic | 2 | Top Adjustment | - | 300° | Carbon | PC Pins, Board Locks | Flatted | 0.787" (20.00mm) | 0.236" (6.00mm) | - | Through Hole, Snap In |
|
PTD901-2015K-B502POT 5K OHM 1/20W CARBON LINEAR |
1,010 |
|
Datasheet | Pro Audio PTD90 | Tray | Active | 5k | ±20% | 0.05W, 1/20W | None | 1.0 | - | Linear | 1 | Side Adjustment | - | 300° | Carbon | PC Pins, Board Locks | Knurled and Slotted | 0.591" (15.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
|
PDB182-K425K-503APOT 50K OHM 0.06W CARBON LOG |
4,778 |
|
Datasheet | Pro Audio PDB18 | Tray | Active | 50k | ±20% | 0.06W | None | 1.0 | - | Logarithmic | 2 | Side Adjustment | - | 300° | Carbon | PC Pins | Knurled and Slotted | 0.984" (25.00mm) | 0.236" (6.00mm) | M7 x 0.75 | Panel Mount |
