Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R4ABLKBLKAF0SWITCH ROCKER SPST 20A 125V |
1,866 |
|
Datasheet | R4 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | Dot | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|
R1966AGRYGRYFFSWITCH ROCKER SPST 15A 125V |
2,931 |
|
Datasheet | R1966 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC) | 125 V | - | Concave (Curved) | Gray | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|
R5ABLKBLKIF0SWITCH ROCKER DPST 20A 125V |
1,172 |
|
Datasheet | R5 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Vertical | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.20mm | -20°C ~ 55°C | CSA, UL |
|

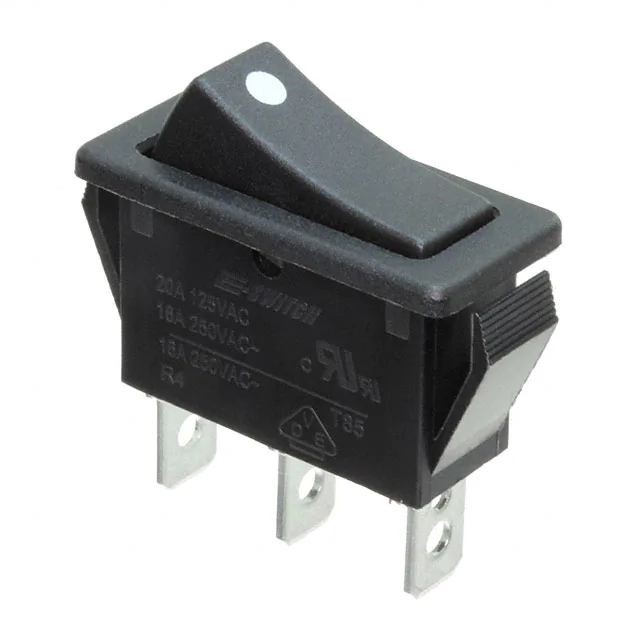

R4CBLKBLKAF0SWITCH ROCKER SPDT 20A 125V |
3,054 |
|
Datasheet | R4 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 20A (AC) | 125 V | - | Concave (Curved) | Black | Dot | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|
R4IBLKREDEFOSWITCH ROCKER SPDT 15A 125V |
1,920 |
|
Datasheet | R4 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-Mom | 15A (AC) | 125 V | - | Concave (Curved) | Red | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
|
R1973ABLKBLKGR0SWITCH ROCKER SPST 9A 125V |
2,000 |
|
Datasheet | R1973 | Bulk | Active | Panel Mount, Snap-In, Right Angle | SPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | PC Pin | - | - | Rectangular - 19.20mm x 12.80mm | -30°C ~ 65°C | - |
|

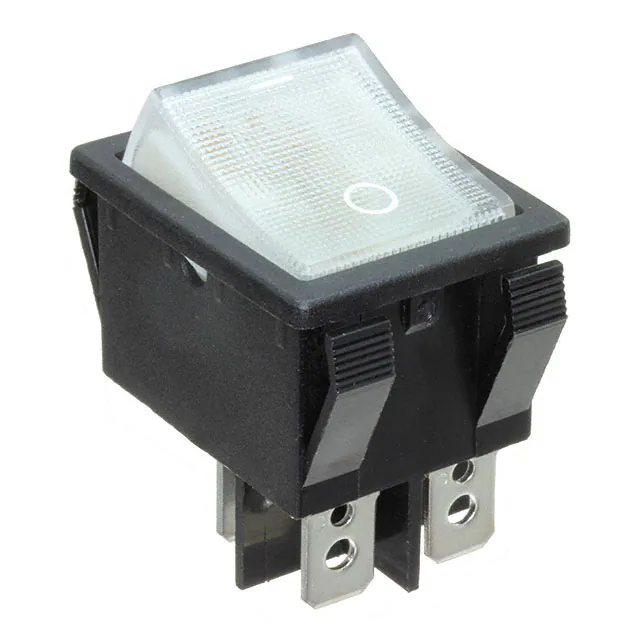

R5BBLKCLRGF1SWITCH ROCKER DPST 20A 125V |
4,700 |
|
Datasheet | R5 | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Clear | O I | Neon, Clear | 125 VAC | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.00mm x 22.20mm | -20°C ~ 55°C | CSA, UL |
|
R1966CBLKBLKEFSWITCH ROCKER SPDT 15A 125V |
1,332 |
|
Datasheet | R1966 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 15A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
|
RB212C1011-136SWITCH ROCKER DPST 16A 125V |
2,344 |
|
Datasheet | RB2, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | 125 V | - | Concave (Curved) - Illuminated | Green | O - | Neon, Green | 125 VAC | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | - |
|

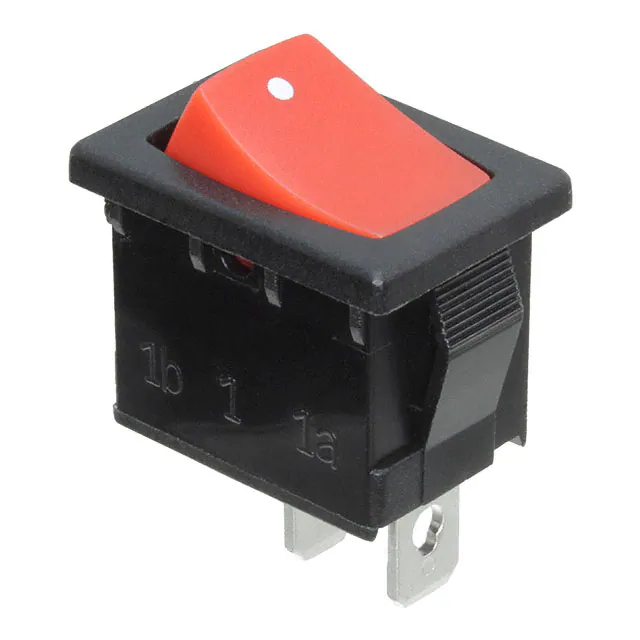

R1966FBLKREDAFSWITCH ROCKER SPST-NO 15A 125V |
1,789 |
|
Datasheet | R1966 | Bulk | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 15A (AC) | 125 V | - | Concave (Curved) | Red | Dot | - | - | Quick Connect - 0.187" (4.7mm) | - | - | Rectangular - 19.40mm x 13.00mm | -30°C ~ 65°C | - |
