Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RB342A1100-136SWITCH ROCKER SPDT 16A 125V |
267 |
|
Datasheet | RB3 | Box | Active | Panel Mount, Snap-In | SPDT | On-On | 16A (AC) | 125 V | - | Flat - Illuminated | Black | No Marking | LED, Green/Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 30.20mm x 13.80mm | 0°C ~ 55°C | cULus, ENEC |
|
|
RB345A1100-136SWITCH ROCKER SPDT 16A 125V |
299 |
|
Datasheet | RB3 | Box | Active | Panel Mount, Snap-In | SPDT | On-Mom | 16A (AC) | 125 V | - | Flat - Illuminated | Black | No Marking | LED, Green/Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 30.20mm x 13.80mm | 0°C ~ 55°C | cULus, ENEC |
|
|
RB547A1100-136SWITCH ROCKER DPDT 16A 125V |
266 |
|
Datasheet | RB5 | Box | Active | Panel Mount, Snap-In | DPDT | Mom-Off-On | 16A (AC) | - | 125 V | Flat - Illuminated | White | No Marking | LED, Green/Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 30.23mm x 22.10mm | 0°C ~ 55°C | cULus, ENEC15 |
|
|
RB546A1100-136SWITCH ROCKER DPDT 16A 125V |
280 |
|
Datasheet | RB5 | Box | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 16A (AC) | - | 125 V | Flat - Illuminated | White | No Marking | LED, Green/Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 30.23mm x 22.10mm | 0°C ~ 55°C | cULus, ENEC15 |
|
RE11131023-115SWITCH ROCKER SPST 10A 125V |
512 |
|
Datasheet | RE1, LAMB | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Oval - Illuminated | Red | ON OFF, Vertical | Incandescent, Red | 24 VDC | Quick Connect - 0.187" (4.7mm) | - | - | - | -20°C ~ 105°C | cUL, VDE, UL |
|

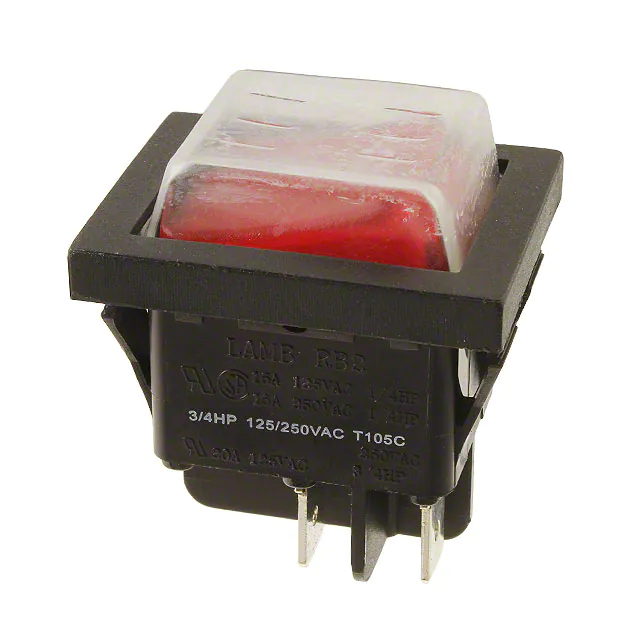

RB242D1021-116/ACC-F02-1SWITCH ROCKER DPST 20A 125V |
640 |
|
Datasheet | RB2, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) - Illuminated | Red | O - | Neon, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | Sealing Boot | Rectangular - 30.00mm x 22.00mm | -20°C ~ 65°C | - |
|
400AWMSP1R1BLKM7RESWITCH ROCKER SPDT 0.4VA 20V |
393 |
|
Datasheet | 400A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|

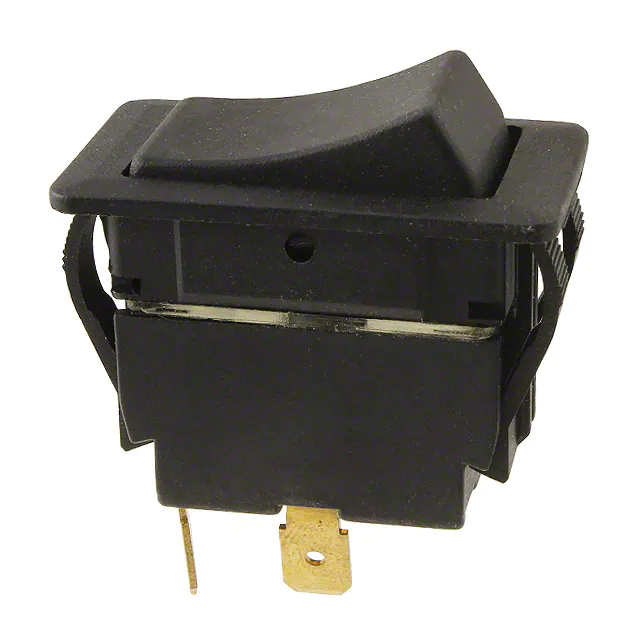

RVW44D1100SWITCH ROCKER SPST-NO 20A 125V |
150 |
|
Datasheet | RVW, LAMB | Tray | Active | Panel Mount, Snap-In | SPST-NO | Off-Mom | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | -20°C ~ 55°C | - |
|
RVW4KD1100SWITCH ROCKER DPDT 20A 125V |
285 |
|
Datasheet | RVW, LAMB | Bulk | Active | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 20A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | -20°C ~ 55°C | - |
|
R4ABLKBLKFF0SWITCH ROCKER SPST 20A 125V |
4,646 |
|
Datasheet | R4 | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | O - | - | - | Quick Connect - 0.250" (6.3mm) | - | - | Rectangular - 30.10mm x 11.10mm | -20°C ~ 55°C | UL |
