Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
300DP3J2BLKVS5QESWITCH ROCKER DPDT 5A 120V |
4,096 |
|
Datasheet | 300 | Tray | Active | Through Hole | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300DP4J3BLKVS2RESWITCH ROCKER DPDT 0.4VA 20V |
3,523 |
|
Datasheet | 300 | Bulk | Active | Through Hole | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|

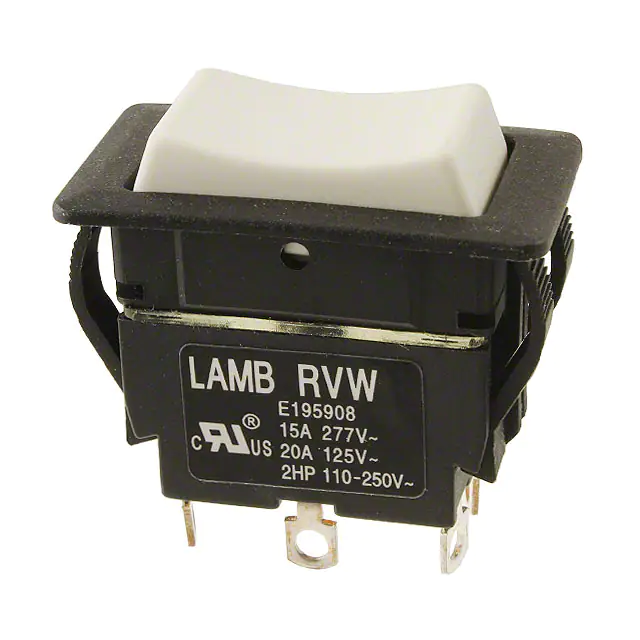

RVW56D1200SWITCH ROCKER DPDT 20A 125V |
1,929 |
|
Datasheet | RVW, LAMB | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 20A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Solder Lug | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | -20°C ~ 55°C | - |
|
|
RVW46D1200SWITCH ROCKER DPDT 20A 125V |
2,078 |
|
Datasheet | RVW | Bulk | Active | Panel Mount, Snap-In | DPDT | On-Off-On | 20A (AC) | 125 V | - | Concave (Curved) | White | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | 0°C ~ 55°C | - |
|

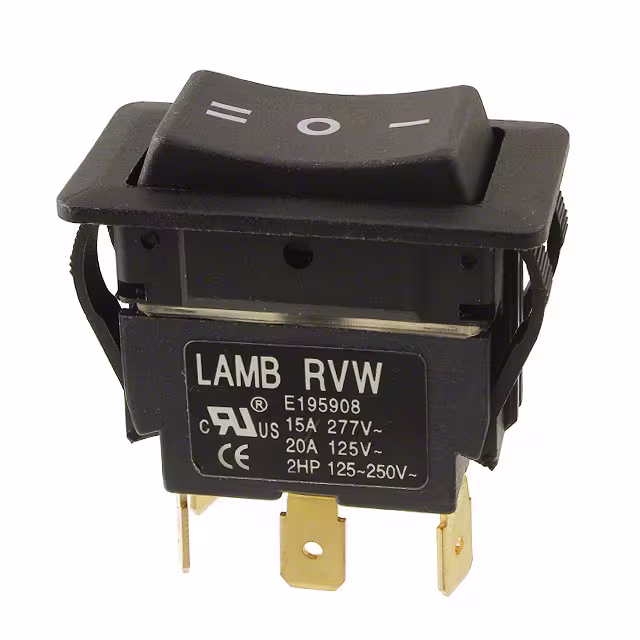

RVW4Z07D112SSWITCH ROCKER 20A 125V |
2,432 |
|
Datasheet | RVW, LAMB | Bulk | Active | Panel Mount, Snap-In | - | - | 20A (AC) | 125 V | - | Concave (Curved) | Black | - O = | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | -20°C ~ 55°C | - |
|
|
300AWDP3J6BLKM7RESWITCH ROCKER DPDT 0.4VA 20V |
4,145 |
|
Datasheet | 300A | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300AWDP1J1VS3RESWITCH ROCKER DPDT 0.4VA 20V |
2,776 |
|
Datasheet | 300A | Bulk | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300AWDP4J1REDVS2QESWITCH ROCKER DPDT 5A 120V |
3,289 |
|
Datasheet | 300A | Bulk | Active | Through Hole | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300AWDP4J2VS2QESWITCH ROCKER DPDT 5A 120V |
1,333 |
|
Datasheet | 300A | Bulk | Active | Through Hole | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300AWDP4J3VS2QESWITCH ROCKER DPDT 5A 120V |
3,800 |
|
Datasheet | 300A | Bulk | Active | Through Hole | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
