Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

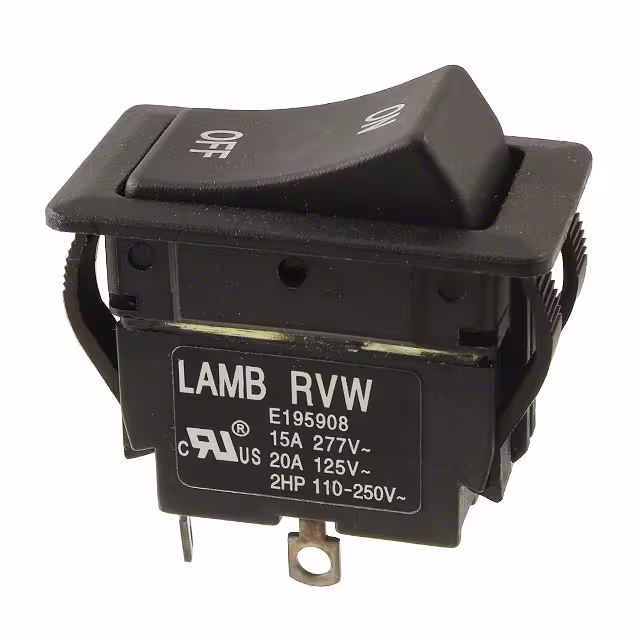

RVW52D1123SWITCH ROCKER DPST 20A 125V |
2,542 |
|
Datasheet | RVW, LAMB | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 20A (AC) | 125 V | - | Concave (Curved) | Black | ON OFF, Vertical | - | - | Solder Lug | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | -20°C ~ 55°C | - |
|
300AWDP4R1M1RESWITCH ROCKER DPDT 0.4VA 20V |
1,590 |
|
Datasheet | 300A | Bulk | Active | Panel Mount, Flange | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 13.14mm x 7.20mm | -30°C ~ 85°C | - |
|
|
RVW45D112SSWITCH ROCKER SPDT 20A 125V |
2,326 |
|
Datasheet | RVW | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 20A (AC) | 125 V | - | Concave (Curved) | Black | - O = | - | - | Quick Connect - 0.250" (6.3mm) | IP54 - Dust Protected, Water Resistant | - | Rectangular - 36.80mm x 21.00mm | 0°C ~ 55°C | - |
|
|
300AWDP3J1VS2QESWITCH ROCKER DPDT 5A 120V |
1,775 |
|
Datasheet | 300A | Bulk | Active | Through Hole | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300AWDP3J3BLKVS2QESWITCH ROCKER DPDT 5A 120V |
4,898 |
|
Datasheet | 300A | Tray | Active | Through Hole | DPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C | - |
|
|
300DP6R6WHTM3QEWHTSWITCH ROCKER DPDT 5A 120V |
2,553 |
|
Datasheet | 300 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | White | No Marking | - | - | Quick Connect - 0.062" (1.5mm) | - | Epoxy Sealed Terminals | Rectangular - 15.70mm x 12.70mm | -30°C ~ 85°C | - |
|
|
3003P2R7BLKM3QEBLKSWITCH ROCKER 3PDT 5A 120V |
3,184 |
|
Datasheet | 300 | Bulk | Active | Panel Mount, Snap-In | 3PDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Quick Connect - 0.062" (1.5mm) | - | Epoxy Sealed Terminals | Rectangular - 15.70mm x 12.70mm | -30°C ~ 85°C | - |
|
|
3003P1R7BLKM3QEBLKSWITCH ROCKER 3PDT 5A 120V |
3,261 |
|
Datasheet | 300 | Bulk | Active | Panel Mount, Snap-In | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Quick Connect - 0.062" (1.5mm) | - | Epoxy Sealed Terminals | Rectangular - 15.70mm x 12.70mm | -30°C ~ 85°C | - |
|
|
RB541A1100-16SWITCH ROCKER DPST 16A 125V |
1,994 |
|
Datasheet | RB5 | Box | Active | Panel Mount, Snap-In | DPST | On-Off | 16A (AC) | - | 125 V | Flat - Illuminated | White | No Marking | LED, Red | 125 VAC | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | Rectangular - 30.23mm x 22.10mm | 0°C ~ 55°C | cULus, ENEC |
|
|
300DP6R7BLKM3REBLKSWITCH ROCKER SP3T 0.4VA 20V |
3,543 |
|
Datasheet | 300 | Bulk | Active | Panel Mount, Snap-In | SP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Paddle | Black | No Marking | - | - | Quick Connect - 0.062" (1.5mm) | - | Jumper needed to achieve triple throw | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | - |
