Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7101J51ZGE12SWITCH ROCKER SPDT 5A 120V |
2,190 |
|
Datasheet | 7000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|
|
7105J3V7BE2SWITCH ROCKER SPDT 0.4VA 20V |
3,916 |
|
Datasheet | 7000 | Bulk | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 27.81mm x 16.46mm | -30°C ~ 85°C | cULus |
|

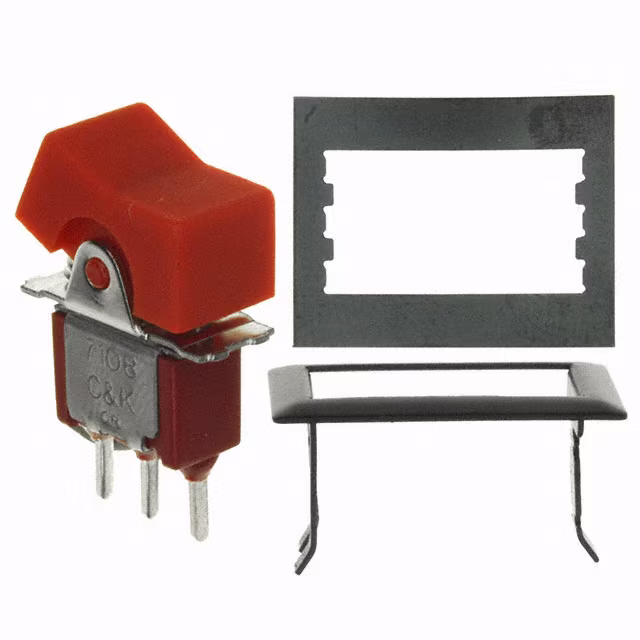

7108J11CQE32SWITCH ROCKER SPDT 5A 120V |
4,420 |
|
Datasheet | 7000 | Tray | Active | Panel Mount, Snap-In | SPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 19.05mm x 10.41mm | -30°C ~ 85°C | cULus |
|
|
U11J1V3QE2SWITCH ROCKER SPDT 5A 120V |
1,686 |
|
Datasheet | 7000 | Tray | Active | Through Hole | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
|
U13J51ZQE22SWITCH ROCKER SPDT 5A 120V |
1,244 |
|
Datasheet | 7000 | Tray | Active | Panel Mount, Snap-In | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|
|
7105J10ZGE2SWITCH ROCKER SPDT 5A 120V |
4,496 |
|
Datasheet | 7000 | Bulk | Active | Panel Mount, Flange | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 34.92mm x 16.46mm | -30°C ~ 85°C | cULus |
|
ET05J6CBE2SWITCH ROCKER SPDT 0.4VA 20V |
4,762 |
|
Datasheet | ET | Tray | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | cULus |
|
D105J11G205PQASWITCH ROCKER SPDT 4A 125V |
2,673 |
|
Datasheet | D | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 4A (AC) | 125 V | - | Concave (Curved) | White | O - | - | - | Quick Connect - 0.187" (4.7mm) | - | Guard | Rectangular - 19.41mm x 12.90mm | -30°C ~ 65°C | cULus |
|
|
7203J1ZBE2SWITCH ROCKER DPDT 0.4VA 20V |
1,231 |
|
Datasheet | 7000 | Bulk | Active | Panel Mount, Flange | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
|
7101J1V6GE2SWITCH ROCKER SPDT 5A 120V |
2,177 |
|
Datasheet | 7000 | Bulk | Active | Through Hole | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
