Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E201J1ABE3SWITCH ROCKER DPDT 0.4VA 20V |
3,294 |
|
Datasheet | E | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
|
U11J3Z3QE2SWITCH ROCKER SPDT 5A 120V |
2,815 |
|
Datasheet | 7000 | Tray | Active | Panel Mount, Flange | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Quick Connect - 0.062" (1.5mm) | - | Epoxy Sealed Terminals | Rectangular - 27.81mm x 16.46mm | -30°C ~ 85°C | cULus |
|
|
7101J60ZGE2SWITCH ROCKER SPDT 5A 120V |
1,608 |
|
Datasheet | 7000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|
7101J51ZGE22SWITCH ROCKER SPDT 20V |
2,599 |
|
Datasheet | 7000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | - | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|
|
7105J62ZQE22SWITCH ROCKER SPDT 5A 120V |
4,804 |
|
Datasheet | 7000 | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Paddle - Illuminated | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|
7108J61ZQE22SWITCH ROCKER SPDT 5A 120V |
2,870 |
|
Datasheet | 7000 | Bulk | Active | Panel Mount, Snap-In | SPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|
|
7101J3V3BE1SWITCH ROCKER SPDT 0.4VA 20V |
2,941 |
|
Datasheet | 7000 | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | White | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 27.81mm x 16.46mm | -30°C ~ 85°C | cULus |
|
|
U21J51Z3QE22SWITCH ROCKER DPDT 5A 120V |
2,020 |
|
Datasheet | 7000 | Tray | Active | Panel Mount, Snap-In | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Concave (Standard V) | Black | No Marking | - | - | Quick Connect - 0.062" (1.5mm) | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 85°C | cULus |
|

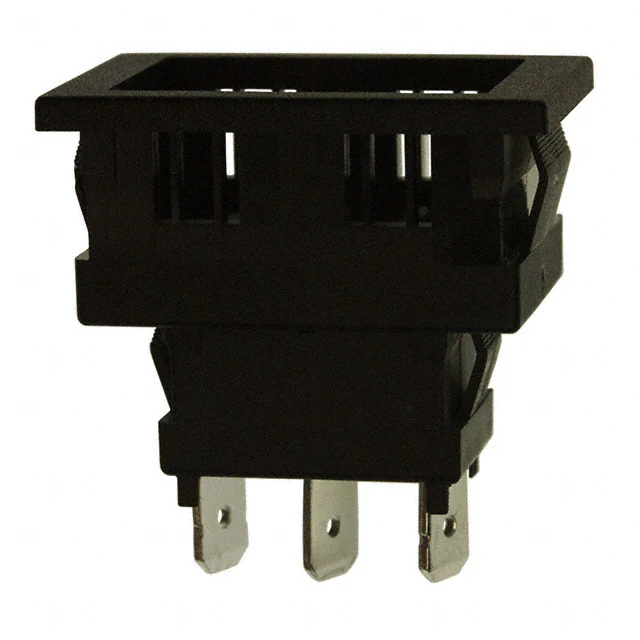

D105J12B205NQASWITCH ROCKER SPDT 4A 125V |
4,063 |
|
Datasheet | D | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 4A (AC) | 125 V | - | Concave (Curved) | Black | Dot | - | - | Quick Connect - 0.187" (4.7mm) | - | Guard | Rectangular - 27.13mm x 19.20mm | -30°C ~ 65°C | cULus |
|
|
7101J1AV2PE2SWITCH ROCKER SPDT 0.4VA 20V |
4,240 |
|
Datasheet | 7000 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Concave (Standard V) | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | Rectangular - 17.96mm x 10.62mm | -30°C ~ 85°C | cULus |
